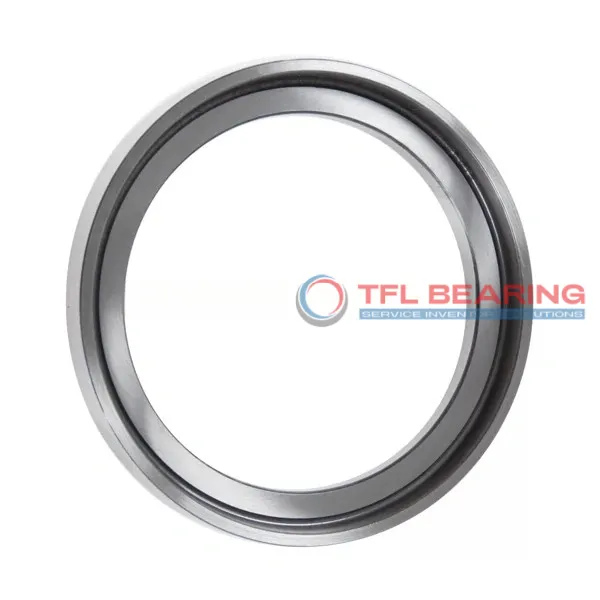

Angle Rings For Cylindrical Roller Bearings HJ 2220 EC

The HJ 2220 EC angle ring is designed for cylindrical roller bearings, with a 100mm bore and 127.35mm outer diameter. Made from sturdy chrome steel, it fits snugly and handles temperatures from -30°C to 110°C.
Its 10mm width on the inner ring side ensures a secure fit, while the 16mm overall width provides stability. The chamfered edges (2.1mm) make installation easier and reduce stress during operation.
This angle ring is interchangeable with SKF models, offering a reliable alternative for replacements. It’s ideal for heavy-duty machinery where precise alignment and load distribution are needed.
Weighing 0.43kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for industrial use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number HJ 2220 EC
Brand TFL
Interchangeable SKF
Bore Dia 100 mm
Bore Dia Tolerance -0.02mm to 0
Outer Dia 127.35 mm
Outer Dia Tolerance -0.018mm to 0
Width Contacting Inner Ring Side Face 10 mm
Width 16 mm
Width Tolerance -0.12mm to 0
Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 2.1 mm
System of Measurement Metric
Roller Bearing Type Cylindrical
Temperature Range -30° to 110 °C
Material Chrome Steel
RoHS Compliant
REACH Compliant
Weight 0.43 kg

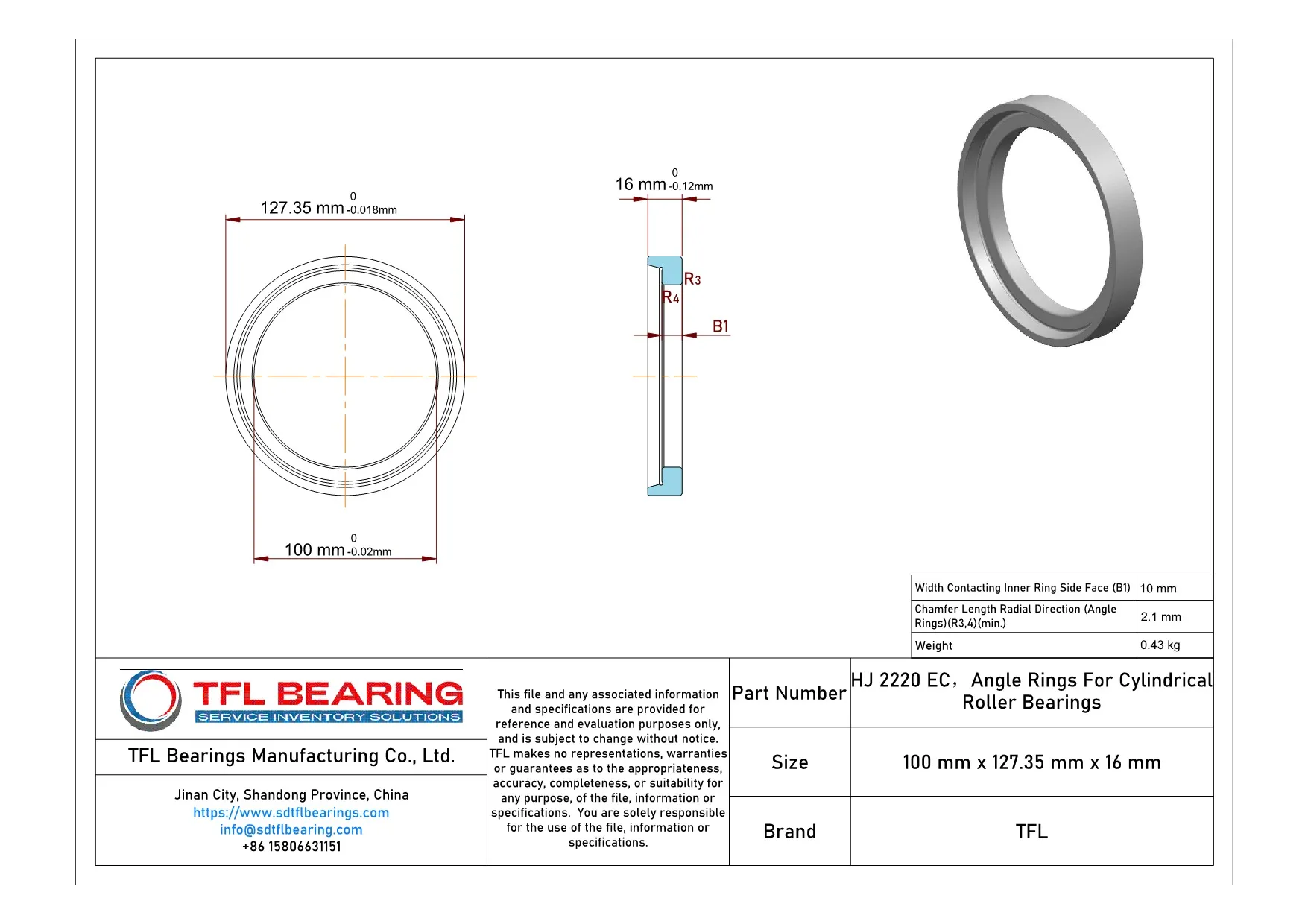

Angle Rings For Cylindrical Roller Bearings HJ 2220 EC dimension drawing
