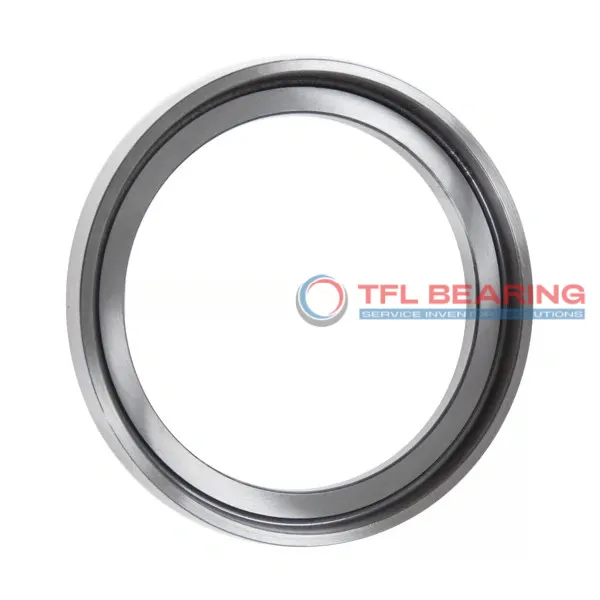

Angle Rings For Cylindrical Roller Bearings HJ 222 EC

Angle Rings For Cylindrical Roller Bearings HJ 222 EC

The HJ 222 EC angle ring is designed for cylindrical roller bearings, with a 110mm bore and 141.65mm outer diameter. Made from sturdy chrome steel, it operates reliably in temperatures from -30°C to 110°C.
Its 17mm width and precise tolerances ensure a secure fit, while the 11mm contacting side face provides stability. The chamfered edges (min. 2.1mm) make installation smoother.
This angle ring is interchangeable with SKF models, offering a practical replacement option. It’s ideal for heavy-duty machinery where cylindrical roller bearings are used.
Weighing 0.62kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it’s safe for various industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 222 EC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 141.65 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width Contacting Inner Ring Side Face 11 mm
  • Width 17 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 2.1 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.62 kg
Angle Rings For Cylindrical Roller Bearings HJ 222 EC dimension drawing
Download DWG Download PDF

Features

How Is HJ 222 EC Bearing Engineered for Reliability?
HJ 222 EC Bearing is crafted from high-quality chrome steel, ensuring durability and resistance to wear.
Its precise dimensions, with a bore diameter of 110 mm and outer diameter of 141.65 mm, provide a secure fit in demanding applications.
The temperature range of -30° to 110 °C allows HJ 222 EC Bearing to perform reliably in various environments.
With a weight of 0.62 kg, it balances strength and ease of installation.

Application

Industrial Uses of HJ 222 EC Bearing
HJ 222 EC Bearing is commonly used in heavy machinery, such as industrial presses and large conveyor systems, where its cylindrical roller design handles high radial loads efficiently. The chrome steel construction ensures durability in demanding environments.
Where Is HJ 222 EC Bearing Used?
In automotive applications, HJ 222 EC Bearing fits well in gearboxes and drivetrains, providing stable performance under continuous stress. Its precise tolerances make it a reliable choice for maintaining alignment in high-speed operations.
Built for Heavy-Duty Use: HJ 222 EC Bearing
For wind turbines and mining equipment, HJ 222 EC Bearing’s robust design withstands extreme conditions. The metric dimensions ensure compatibility with a variety of international machinery standards.
Automotive vs Aerospace: Applications of HJ 222 EC Bearing
While HJ 222 EC Bearing excels in automotive transmissions, it’s also suitable for aerospace landing gear systems. Its temperature range and material quality make it versatile across industries.
Essential Roles of HJ 222 EC Bearing
In robotics and automation, HJ 222 EC Bearing supports precise movements in robotic arms and CNC machines. The open design allows for easy lubrication, extending service life in high-use scenarios.
