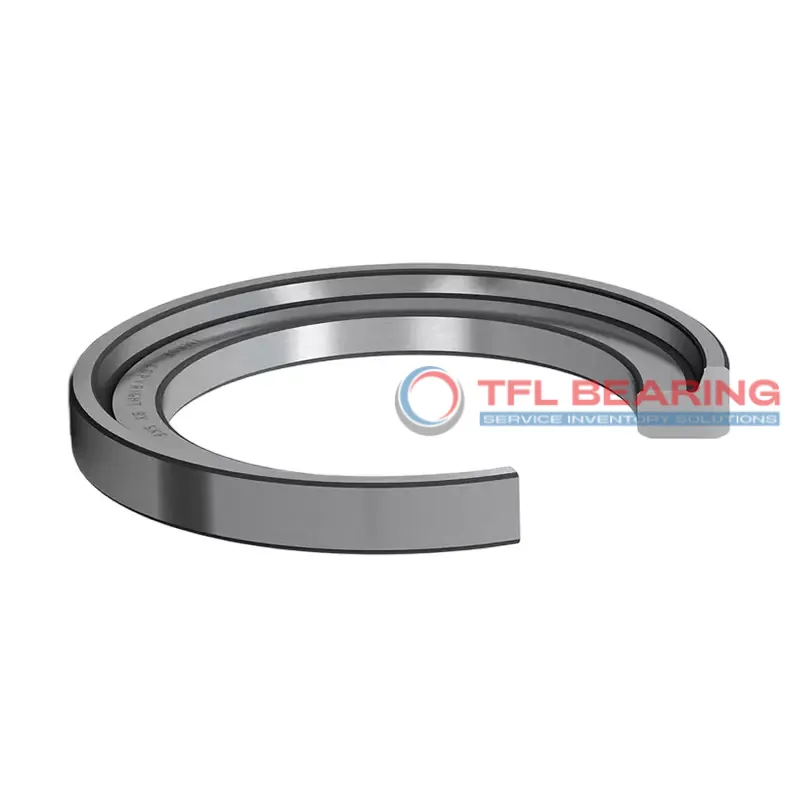

Angle Rings For Cylindrical Roller Bearings HJ 2213 EC

Angle Rings For Cylindrical Roller Bearings HJ 2213 EC

The HJ 2213 EC angle ring is designed for cylindrical roller bearings, with a 65mm bore and 84.4mm outer diameter. Made from sturdy chrome steel, it fits snugly and handles temperatures from -30°C to 110°C.
Its 6mm width on the inner ring side ensures a secure fit, while the 10.5mm overall width provides stability. The chamfered edges (1.5mm) make installation smoother and reduce wear.
This angle ring is interchangeable with SKF models, offering a reliable alternative for replacements. It’s ideal for machinery where precise alignment and load distribution are key.
Weighing just 0.12kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s safe for various industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 2213 EC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.15mm to 0
  • Outer Dia 84.4 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width Contacting Inner Ring Side Face 6 mm
  • Width 10.5 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 1.5 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.12 kg
Angle Rings For Cylindrical Roller Bearings HJ 2213 EC dimension drawing
Download DWG Download PDF

Features

Performance Features of HJ 2213 EC Bearing
HJ 2213 EC Bearing is crafted from chrome steel, offering durability and resistance to wear in various applications.
Its precise dimensions, with a bore diameter of 65 mm and outer diameter of 84.4 mm, ensure a reliable fit.
The design includes a 6 mm width contacting the inner ring side face, enhancing stability under load.
With a temperature range of -30° to 110 °C, HJ 2213 EC Bearing performs well in diverse environments.
Its chamfer length in the radial direction minimises stress concentration, prolonging service life.
Compliant with RoHS and REACH standards, it meets stringent environmental and safety requirements.

Application

Industrial Uses of HJ 2213 EC Bearing
HJ 2213 EC Bearing is commonly used in heavy machinery, such as industrial gearboxes and large conveyor systems, where its cylindrical roller design handles high radial loads efficiently. The chrome steel material ensures durability even in demanding environments.
In automotive applications, HJ 2213 EC Bearing fits well in transmission systems, providing smooth rotation and reducing friction. Its precise metric dimensions make it a reliable choice for various vehicle models.
For automation equipment, HJ 2213 EC Bearing supports robotic arms and assembly lines, where consistent performance is key. The narrow width design allows for compact installations without compromising strength.
Medical imaging devices also benefit from HJ 2213 EC Bearing’s stability and low maintenance requirements. The compliant RoHS and REACH standards make it suitable for sensitive healthcare environments.
