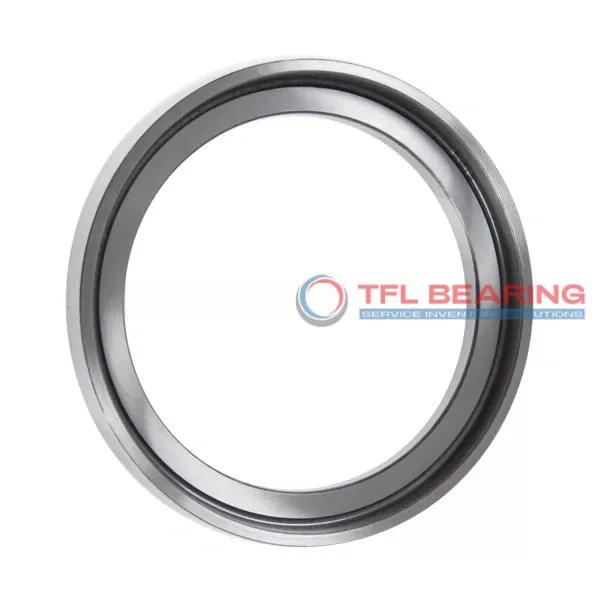

Angle Rings For Cylindrical Roller Bearings HJ 219 EC

Angle Rings For Cylindrical Roller Bearings HJ 219 EC

The HJ 219 EC angle ring is designed for cylindrical roller bearings, with a 95mm bore and 120.5mm outer diameter. Made from sturdy chrome steel, it fits snugly and withstands temperatures from -30°C to 110°C.
Its 14mm width and precise tolerances ensure a secure fit, while the 9mm contacting side face provides stability. The chamfered edges (2.1mm) make installation smoother.
This angle ring is interchangeable with SKF models, offering a reliable alternative for replacements. It’s ideal for heavy-duty machinery where precise alignment is crucial.
Weighing 0.33kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it’s safe for various industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 219 EC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 95 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 120.5 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width Contacting Inner Ring Side Face 9 mm
  • Width 14 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 2.1 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.33 kg
Angle Rings For Cylindrical Roller Bearings HJ 219 EC dimension drawing
Download DWG Download PDF

Features

Why Choose HJ 219 EC Bearing for Precision Tasks?
HJ 219 EC Bearing is crafted from chrome steel, offering excellent durability and resistance to wear.
Its precise dimensions, including a bore diameter of 95 mm, ensure accurate fitment in various applications.
The cylindrical roller design enhances load distribution, improving performance under stress.
With a temperature range of -30° to 110 °C, it remains reliable in diverse working conditions.
HJ 219 EC Bearing’s chamfer length of 2.1 mm facilitates easier installation and alignment.
Its compliance with RoHS and REACH standards ensures environmental and safety adherence.

Application

Industrial Uses of HJ 219 EC Bearing
HJ 219 EC Bearing is commonly used in heavy machinery, such as industrial gearboxes and large conveyor systems, where its cylindrical roller design handles radial loads efficiently. The chrome steel construction ensures durability even in demanding environments.
In automotive applications, HJ 219 EC Bearing fits well in truck transmissions and axle systems, providing reliable performance under high stress. Its metric dimensions make it a versatile choice for various vehicle models.
For automation equipment, HJ 219 EC Bearing supports precise movement in robotic arms and assembly lines. The tight tolerances and robust material contribute to smooth operation over long periods.
Medical imaging devices also benefit from HJ 219 EC Bearing’s stability, particularly in rotating components of CT scanners. The compliant RoHS and REACH standards make it suitable for sensitive environments.
