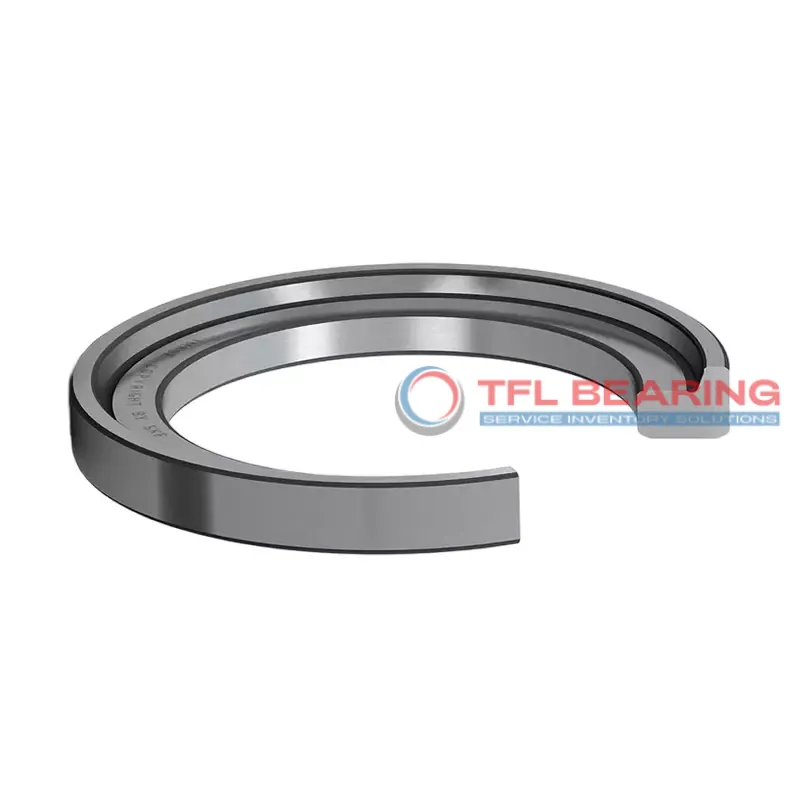

Angle Rings For Cylindrical Roller Bearings HJ 217 EC

Angle Rings For Cylindrical Roller Bearings HJ 217 EC

The HJ 217 EC angle ring is designed for cylindrical roller bearings, with an 85mm bore and 107.5mm outer diameter. Made from chrome steel, it offers durability and resistance to wear.
Its compact design features an 8mm width on the inner ring side and a total width of 12.5mm, making it easy to fit into tight spaces. The chamfered edges help with smooth installation.
This angle ring works well in temperatures ranging from -30°C to 110°C, suitable for various industrial environments. It’s interchangeable with SKF models, providing a reliable alternative.
Weighing just 0.24kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s a safe choice for your bearing assemblies.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 217 EC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 107.5 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width Contacting Inner Ring Side Face 8 mm
  • Width 12.5 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 2 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.24 kg
Angle Rings For Cylindrical Roller Bearings HJ 217 EC dimension drawing
Download DWG Download PDF

Features

Performance Features of HJ 217 EC Bearing
HJ 217 EC Bearing is crafted from chrome steel, offering excellent durability and resistance to wear.
Its precise dimensions, with a bore diameter of 85 mm and outer diameter of 107.5 mm, ensure a perfect fit.
The bearing operates efficiently within a temperature range of -30° to 110°C, making it versatile for various conditions.
With a weight of 0.24 kg, it balances strength and ease of handling.
HJ 217 EC Bearing’s design includes a chamfer length of 2 mm, enhancing its performance in radial applications.
Its compatibility with SKF models adds to its convenience and reliability.

Application

Industrial Uses of HJ 217 EC Bearing
HJ 217 EC Bearing is commonly used in heavy machinery, such as industrial presses and gearboxes, where its cylindrical roller design handles high radial loads efficiently. The chrome steel material ensures durability even in demanding environments.
In automotive applications, HJ 217 EC Bearing fits well in transmission systems, providing smooth operation under constant stress. Its precise metric dimensions make it a reliable choice for various vehicle models.
For automation equipment, HJ 217 EC Bearing’s robust construction supports components like conveyor belts and robotic arms. The consistent performance and easy maintenance make it a practical option for high-use scenarios.
Medical devices also benefit from HJ 217 EC Bearing’s reliability, particularly in imaging equipment where precision is key. The temperature range allows it to perform well in both sterile and industrial settings.
