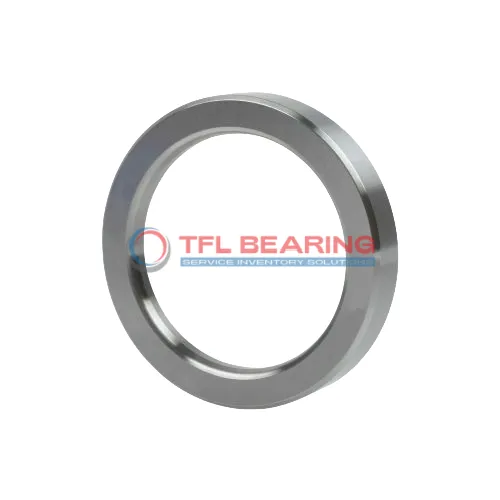

Angle Rings For Cylindrical Roller Bearings HJ 1084

Angle Rings For Cylindrical Roller Bearings HJ 1084

The HJ 1084 angle ring is designed for cylindrical roller bearings, with a 420mm bore and 490mm outer diameter. Made from sturdy chrome steel, it suits temperatures from -30°C to 110°C.
Its 43mm width and 23mm side face provide a secure fit, while the 5mm chamfer ensures easy installation. The ring is interchangeable with SKF models, offering flexibility for replacements.
Weighing 10kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards, it’s a reliable choice for heavy-duty machinery.
Ideal for applications like large gearboxes or rolling mills, where precise alignment and durability are key.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 1084
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 420 mm
  • Bore Dia Tolerance -0.045mm to 0
  • Outer Dia 490 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width Contacting Inner Ring Side Face 23 mm
  • Width 43 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 5 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 10 kg
Angle Rings For Cylindrical Roller Bearings HJ 1084 dimension drawing
Download DWG Download PDF

Features

Structural Advantages of HJ 1084 Angle Rings
HJ 1084 Angle Rings are crafted from durable chrome steel, ensuring strength and longevity in cylindrical roller bearing applications.
The precise bore and outer diameter tolerances (-0.045mm to 0) guarantee a secure fit, enhancing operational stability.
With a width of 43 mm and a chamfer length of 5 mm, these angle rings facilitate easy installation and alignment.
Designed for temperatures ranging from -30° to 110°C, they perform reliably in varied environmental conditions.

Application

Industrial Uses of HJ 1084 Bearing
HJ 1084 Bearing is commonly used in heavy machinery, such as rolling mills and large gearboxes, where its robust design handles high radial loads with ease. The chrome steel material ensures long-lasting performance even in demanding industrial environments.
Where Is HJ 1084 Bearing Used?
In automotive applications, HJ 1084 Bearing fits well in large transmission systems, providing stability and reducing friction. Its precise dimensions make it a reliable choice for maintaining alignment in heavy-duty vehicles.
Built for Heavy-Duty Use: HJ 1084 Bearing
For wind turbines, HJ 1084 Bearing supports the main shaft, enduring constant rotation and variable loads. The wide temperature range allows it to perform reliably in diverse weather conditions.
Automotive vs Aerospace: Applications of HJ 1084 Bearing
While HJ 1084 Bearing is ideal for automotive transmissions, it also finds use in aerospace landing gear systems. Its durability and precision make it suitable for both high-impact and high-precision environments.
