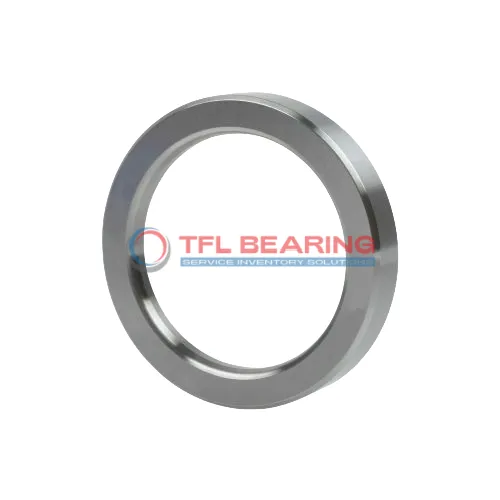

Angle Rings For Cylindrical Roller Bearings HJ 1076

Angle Rings For Cylindrical Roller Bearings HJ 1076

The HJ 1076 angle ring is designed for cylindrical roller bearings, with a 380mm bore and 443mm outer diameter. Made from sturdy chrome steel, it operates reliably in temperatures from -30°C to 110°C.
Its 39.5mm width and precise tolerances ensure a secure fit, while the 21mm contacting side face provides stability. The chamfered edges (min. 5mm) make installation smoother.
This angle ring is interchangeable with SKF models, offering a practical replacement option. It’s ideal for heavy-duty machinery where cylindrical roller bearings are used.
Weighing 8.25kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for various industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 1076
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 380 mm
  • Bore Dia Tolerance -0.04mm to 0
  • Outer Dia 443 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width Contacting Inner Ring Side Face 21 mm
  • Width 39.5 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 5 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 8.25 kg
Angle Rings For Cylindrical Roller Bearings HJ 1076 dimension drawing
Download DWG Download PDF

Features

How Is HJ 1076 Bearing Engineered for Reliability?
HJ 1076 Bearing is crafted from chrome steel, offering durability and resistance to wear in demanding conditions.
Its precise dimensions, with a bore diameter of 380 mm and outer diameter of 443 mm, ensure a secure fit.
The chamfer length of 5 mm in the radial direction enhances ease of installation and reduces stress concentrations.
With a temperature range of -30° to 110 °C, HJ 1076 Bearing performs reliably in varied environments.
The robust design and compliant materials make it a dependable choice for cylindrical roller bearing applications.

Application

Industrial Uses of HJ 1076 Bearing
HJ 1076 Bearing is commonly used in heavy machinery, such as large-scale conveyor systems and industrial presses, where its robust design handles significant radial loads. The chrome steel material ensures long-lasting performance even in demanding conditions.
In the automotive sector, HJ 1076 Bearing fits well in gearboxes and drivetrains, providing stability under high torque. Its precise metric dimensions make it a reliable choice for manufacturers adhering to strict tolerances.
For wind turbine applications, HJ 1076 Bearing’s durability and resistance to wear make it suitable for supporting rotor shafts. The wide temperature range allows it to perform reliably in varying weather conditions.
In construction equipment, HJ 1076 Bearing is often found in cranes and excavators, where its strength and precision are essential. The generous chamfer length also helps with easy installation and maintenance.
