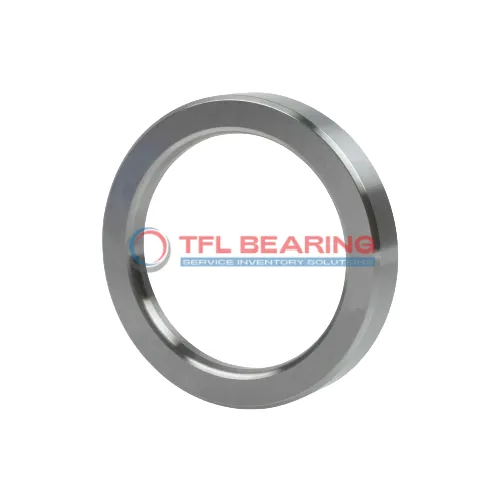

Angle Rings For Cylindrical Roller Bearings HJ 1048

Angle Rings For Cylindrical Roller Bearings HJ 1048

The HJ 1048 angle ring is designed for cylindrical roller bearings, with a 240mm bore and 282mm outer diameter. Made from sturdy chrome steel, it fits snugly and handles temperatures from -30°C to 110°C.
Its 14mm width on the inner ring side ensures a secure fit, while the 27mm overall width provides stability. The chamfered edges (3mm minimum) make installation easier and reduce wear.
This angle ring is interchangeable with SKF models, offering a reliable alternative for replacements. Ideal for heavy-duty machinery where precise alignment is crucial.
Weighing 2.24kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 1048
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 240 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 282 mm
  • Outer Dia Tolerance -0.035mm to 0
  • Width Contacting Inner Ring Side Face 14 mm
  • Width 27 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 3 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.24 kg
Angle Rings For Cylindrical Roller Bearings HJ 1048 dimension drawing
Download DWG Download PDF

Features

Performance Features of HJ 1048 Angle Rings
HJ 1048 Angle Rings are crafted from chrome steel, offering durability and resistance to wear in cylindrical roller bearings.
The precise bore diameter of 240 mm ensures a snug fit, while the outer diameter of 282 mm provides stability.
With a width of 27 mm, HJ 1048 Angle Rings maintain proper alignment under load, reducing operational stress.
The chamfer length of 3 mm facilitates easier installation, saving time during assembly.
HJ 1048 Angle Rings operate efficiently in temperatures ranging from -30° to 110 °C, suitable for varied environments.
Their compliance with RoHS and REACH standards ensures they meet environmental and safety regulations.

Application

Essential Roles of HJ 1048 Bearing
HJ 1048 Bearing is commonly used in heavy machinery, such as industrial gearboxes and large conveyor systems, where its robust design handles high radial loads with ease. The chrome steel material ensures long-lasting performance even in demanding conditions.
In automotive manufacturing, HJ 1048 Bearing supports large components like axle assemblies, providing stability under heavy loads. Its precise metric dimensions make it a reliable choice for European and Asian vehicle models.
For automation systems, HJ 1048 Bearing’s cylindrical roller design ensures smooth operation in robotic arms and assembly lines. The wide temperature range allows it to perform consistently in various environments.
Where Is HJ 1048 Bearing Used?
You’ll often find HJ 1048 Bearing in wind turbines, where its durability and load capacity are crucial for efficient energy generation. The large bore diameter makes it ideal for such heavy-duty applications.
In construction equipment, HJ 1048 Bearing supports components like crane slewing rings, ensuring reliable performance under extreme loads. The tight tolerances provide the precision needed for safe operation.
Built for Heavy-Duty Use: HJ 1048 Bearing
HJ 1048 Bearing excels in mining equipment, where its strength and resistance to wear are essential for continuous operation. The stainless steel cage adds an extra layer of durability in harsh conditions.
For railway applications, HJ 1048 Bearing is used in axle boxes, providing smooth rotation and reducing maintenance needs. Its compatibility with SKF models makes it a versatile choice for many industries.
