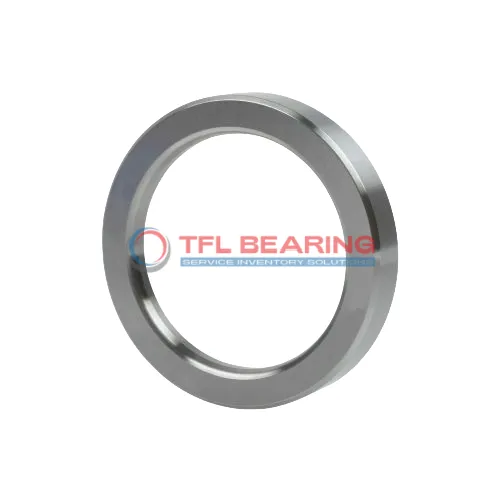

Angle Rings For Cylindrical Roller Bearings HJ 10/600

Angle Rings For Cylindrical Roller Bearings HJ 10/600

The HJ 10/600 angle ring is designed for cylindrical roller bearings, with a 600mm bore and 695mm outer diameter. Made from sturdy chrome steel, it suits temperatures from -30°C to 110°C.
Its 55mm width and precise tolerances ensure a secure fit, while the 6mm chamfer aids smooth installation. The ring weighs 27.5kg, offering durability for heavy-duty use.
Compatible with SKF bearings, it’s a practical choice for replacements or upgrades. Ideal for industrial machinery where reliable support for cylindrical rollers is needed.
RoHS and REACH compliant, it meets safety standards for various applications. A robust component for maintaining bearing alignment under load.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 10/600
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 600 mm
  • Bore Dia Tolerance -0.05mm to 0
  • Outer Dia 695 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width Contacting Inner Ring Side Face 31 mm
  • Width 55 mm
  • Width Tolerance -0.15mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 6 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 27.5 kg
Angle Rings For Cylindrical Roller Bearings HJ 10/600 dimension drawing
Download DWG Download PDF

Features

Why Choose HJ 10/600 Angle Rings for Cylindrical Roller Bearings?
HJ 10/600 Angle Rings are made from chrome steel, offering durability and resistance to wear in demanding applications.
The precise bore diameter of 600 mm ensures a perfect fit, while the outer diameter of 695 mm provides stability.
With a width of 55 mm, these angle rings are designed to handle heavy loads efficiently.
Their temperature range of -30° to 110 °C makes them suitable for various industrial environments.

Application

Essential Roles of HJ 10/600 Bearing
HJ 10/600 Bearing is commonly used in large industrial machinery, such as heavy-duty presses and rolling mills, where its robust design handles significant radial loads. The chrome steel material ensures long-lasting performance even in demanding conditions.
In wind turbine applications, HJ 10/600 Bearing supports the main shaft, providing stability and reducing friction. Its precise metric dimensions make it a reliable choice for renewable energy systems.
For mining equipment, HJ 10/600 Bearing’s durability shines in conveyor systems and crushers. The wide temperature range allows it to perform consistently in harsh environments.
Automotive manufacturing lines also benefit from HJ 10/600 Bearing in assembly robots. Its high load capacity ensures smooth operation during repetitive tasks.
