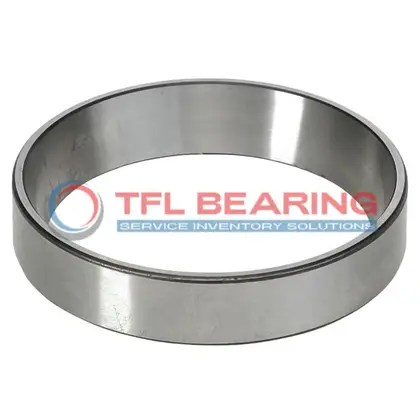

95926 Single Cups (Imperial)

95926 Single Cups (Imperial)

The 95926 is a single cup tapered roller bearing with an outer diameter of 9.25 inches and a width of 1.9375 inches, crafted from durable chrome steel. It fits well with various tapered roller bearings, making it versatile for different setups.

This cup is designed to handle moderate speeds and loads, with a temperature range from -30°C to 110°C. Its standard design ensures easy installation and compatibility with Timken equivalents.

The cup’s precise dimensions and ABEC-1 rating provide reliable performance in industrial applications. It’s ideal for use in machinery where tapered roller bearings are needed, such as in automotive or heavy equipment.

Compliant with RoHS and REACH standards, it offers a safe and environmentally friendly option. Its robust construction ensures long service life even under demanding conditions.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 95926
  • Brand TFL
  • Interchangeable Timken
  • Size 8.23" x 9.25" x 1.9375"
  • Outer Dia 9.25"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 1.9375"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.13"
  • Cup Frontface Backing Diameter 8.58"
  • Cup Backface Backing Diameter 8.23"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number 95475-95926 , 95491-95926 , 95500-95926 , 95512-95926 , 95512X-95926 , 95514X-95926 , 95524V-95926 , 95525-95926 , 95528-95926
  • Cups Type Standard
  • Series 95000
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 95926 Single Cups

95926 Single Cups are made from chrome steel, offering durability and resistance to wear in various applications.
Their tapered roller design ensures smooth operation and efficient load distribution.

With an outer diameter of 9.25″ and a cup width of 1.9375″, they fit precisely in compatible assemblies.
The temperature range of -30° to 110°C allows reliable performance in diverse environments.

95926 Single Cups are interchangeable with Timken models, providing flexibility for replacements.
Their ABEC-1 rating ensures consistent quality for standard precision requirements.

Application

Industrial Uses of 95926 Single Cups
95926 Single Cups are commonly used in heavy machinery, such as mining equipment and construction vehicles, where their tapered design handles radial and axial loads efficiently. The chrome steel construction ensures durability in tough working conditions.

Where Is 95926 Single Cups Used?
You’ll often find 95926 Single Cups in agricultural machinery, like tractors and harvesters, where their inch sizing fits seamlessly into older equipment. The standard cup design makes them easy to install and replace.

Built for Heavy-Duty Use: 95926 Single Cups
95926 Single Cups excel in industrial gearboxes, providing reliable performance under constant stress. Their ABEC-1 rating ensures consistent precision for general applications.

Automotive vs Aerospace: Applications of 95926 Single Cups
In automotive systems, 95926 Single Cups support wheel hubs and drivetrains, offering stability under load. For aerospace, they’re used in auxiliary systems where their temperature range suits varied environments.
