95912 Single Cups (Imperial)

95912 Single Cups (Imperial)

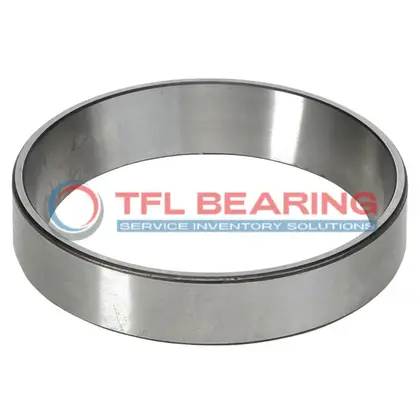

The 95912 is a single cup bearing with an outer diameter of 9.125 inches and a width of 1.9375 inches, crafted from durable chrome steel. It fits well with tapered roller bearings and operates smoothly in temperatures from -30°C to 110°C.

Its standard cup design ensures easy installation and compatibility with various bearing part numbers, including Timken equivalents. The ABEC-1 rating provides reliable precision for general industrial use.

This cup is part of the 95000 series, known for its robust construction. Ideal for machinery requiring tapered roller bearings, such as automotive or heavy equipment applications.

Compliant with RoHS and REACH standards, it offers a safe and dependable solution for your bearing needs. The precise tolerances ensure a secure fit and long service life.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 95912
  • Brand TFL
  • Interchangeable Timken
  • Size 8.15" x 9.125" x 1.9375"
  • Outer Dia 9.125"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 1.9375"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.13"
  • Cup Frontface Backing Diameter 8.58"
  • Cup Backface Backing Diameter 8.15"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number 95475-95912 , 95491-95912 , 95500-95912 , 95512-95912 , 95512X-95912 , 95514X-95912 , 95524V-95912 , 95525-95912 , 95528-95912
  • Cups Type Standard
  • Series 95000
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Built for Reliability: 95912 Bearing

95912 Bearing features chrome steel construction, ensuring durability in various industrial applications.
Its tapered roller design efficiently handles both radial and thrust loads for smooth operation.

The standard cup type design allows easy interchangeability with major brands like Timken.
With a temperature range of -30° to 110°C, it performs reliably in diverse working conditions.

95912 Bearing meets ABEC-1 precision standards, offering consistent performance.
Its robust build requires minimal maintenance, reducing long-term operational costs.

Application

Industrial Uses of 95912 Bearing
95912 Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered design handles radial and thrust loads efficiently. The chrome steel construction ensures durability in demanding environments.

Where Is 95912 Bearing Used?
You’ll often find 95912 Bearing in agricultural machinery, like tractors and harvesters, where its robust design supports high loads. Its inch sizing makes it a convenient choice for older or imperial-based systems.

Built for Heavy-Duty Use: 95912 Bearing
95912 Bearing excels in industrial gearboxes, providing reliable performance under continuous operation. The standard cup type simplifies installation and maintenance, reducing downtime.

Automotive vs Aerospace: Applications of 95912 Bearing
In automotive applications, 95912 Bearing is ideal for wheel hubs and differentials, offering stability under varying loads. For aerospace, its precision fits auxiliary systems requiring consistent performance.

Perfect Fit for Automation: 95912 Bearing
95912 Bearing works well in conveyor systems and robotic arms, where smooth rotation is essential. The ABEC-1 rating ensures adequate precision for most industrial automation needs.
