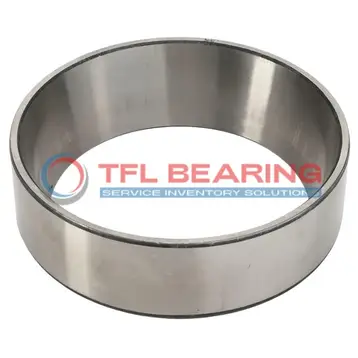

792 Single Cups (Imperial)

792 Single Cups (Imperial)

The 792 single cup is an imperial-sized tapered roller bearing cup, measuring 8.125 inches in outer diameter and 1.375 inches in width. Made from durable chrome steel, it works well in temperatures from -30°C to 110°C.

Its standard design ensures compatibility with Timken and other major brands, making it a versatile replacement option. The cup fits various bearing part numbers, including the 795-792 and 796X-792 series.

With an ABEC-1 rating, it offers reliable precision for general industrial use. The cup’s sturdy construction handles moderate loads and speeds effectively.

Ideal for machinery maintenance or repairs where tapered roller bearings are needed. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 792
  • Brand TFL
  • Interchangeable Timken
  • Size 7.32" x 8.125" x 1.375"
  • Outer Dia 8.125"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 1.375"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.13"
  • Cup Frontface Backing Diameter 7.76"
  • Cup Backface Backing Diameter 7.32"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number 795-792 , 796X-792 , 797-792 , 798-792 , 799-792 , 799A-792 , 795-792-B
  • Cups Type Standard
  • Series 795
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Built for Reliability: 792 Single Cups (Imperial)

792 Single Cups (Imperial) are crafted from chrome steel, offering durability and resistance to wear in demanding applications.
The tapered roller design ensures efficient load distribution, enhancing performance under stress.
With an outer diameter of 8.125″ and a cup width of 1.375″, these cups fit seamlessly into compatible systems.
They operate smoothly within a temperature range of -30° to 110°C, making them versatile for various environments.

Application

Industrial Uses of 792 Bearing
792 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered design handles radial and axial loads effectively. The chrome steel construction ensures durability in tough working conditions.

What Makes 792 Bearing a Preferred Choice?
In automotive applications, 792 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it compatible with many North American vehicle models.

Built for Heavy-Duty Use: 792 Bearing
For industrial conveyor systems, 792 Bearing offers smooth operation and long service life, even in high-load scenarios. The standard cup design simplifies installation and maintenance.

Automotive vs Industrial: Applications of 792 Bearing
In trucks and buses, 792 Bearing supports axle assemblies, while in mining equipment, it withstands extreme loads and harsh environments. Its versatility makes it a go-to choice across sectors.

Perfect Fit for Automation: 792 Bearing
792 Bearing works well in automated production lines, where precision and reliability are key. The ABEC-1 rating ensures consistent performance for general industrial applications.
