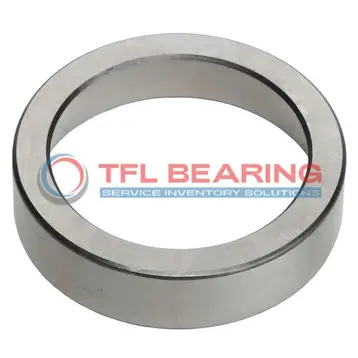

736237 Single Cups (Imperial)

736237 Single Cups (Imperial)

The 736237 is a single cup bearing with imperial measurements, featuring an outer diameter of 23.997 inches and a width of 2.5625 inches. Made from chrome steel, it offers durability and resistance to wear.

Its tapered roller design ensures smooth operation under heavy loads, with a temperature range from -30°C to 110°C. The cup is ABEC-1 rated for reliable performance in various conditions.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. It suits applications like industrial machinery or vehicle axles where tapered roller bearings are needed.

Compliant with RoHS and REACH standards, it’s a safe and dependable option for long-term use. The precise tolerances ensure a secure fit in demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 736237
  • Brand TFL
  • Interchangeable Timken
  • Size 22.44" x 23.997" x 2.5625"
  • Outer Dia 23.997"
  • Outer Dia Tolerance +0.002" to 0
  • Cup Width 2.5625"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.25"
  • Cup Frontface Backing Diameter 22.80"
  • Cup Backface Backing Diameter 22.44"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number EE736160-736237
  • Cups Type Standard
  • Series 736000
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 736237 Bearing

736237 Bearing is crafted from chrome steel, offering durability and resistance to wear in demanding applications.
Its tapered roller design ensures efficient load distribution, enhancing performance under heavy loads.

With an outer diameter of 23.997″ and precise tolerances, 736237 Bearing provides reliable fit and operation.
The standard cup type simplifies installation, making it a practical choice for various industrial uses.

736237 Bearing operates within a temperature range of -30° to 110°C, suitable for diverse working environments.
Its ABEC-1 rating ensures consistent quality and performance in standard precision applications.

Application

Industrial Uses of 736237 Bearing
736237 Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered design handles radial and axial loads efficiently. The chrome steel construction ensures durability in tough working conditions.

Where Is 736237 Bearing Used?
You’ll often find 736237 Bearing in agricultural machinery, like tractors and harvesters, where its robust design supports high loads. Its inch sizing makes it a convenient choice for equipment following imperial standards.

Built for Heavy-Duty Use: 736237 Bearing
736237 Bearing excels in industrial gearboxes, providing reliable performance under continuous operation. The tapered rollers help distribute loads evenly, reducing wear over time.

Automotive vs Aerospace: Applications of 736237 Bearing
In automotive applications, 736237 Bearing is used in wheel hubs and drivetrains, offering stability under stress. While not typically for aerospace, its precision suits heavy-duty industrial roles.

Essential Roles of 736237 Bearing
736237 Bearing is vital in railway systems, supporting axles and wheels with its tapered roller design. The ABEC-1 rating ensures consistent performance for standard precision needs.
