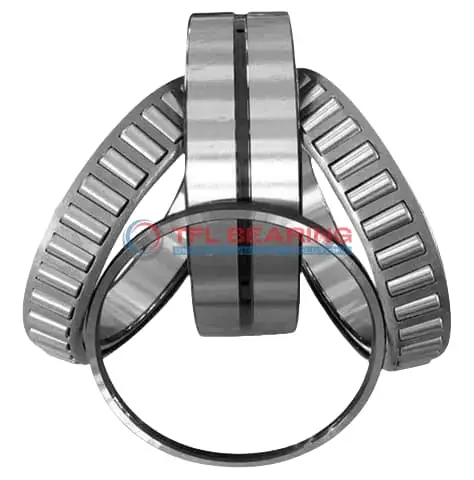

663A-654D TDO (Two-Row Double-Outer Race) (Imperial)

663A-654D TDO (Two-Row Double-Outer Race) (Imperial)

The 663A-654D is a two-row tapered roller bearing with a 3.25″ bore and 6″ outer diameter, built from sturdy chrome steel for combined load handling. It supports dynamic radial loads up to 96,700 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its double-row design offers balanced load distribution, while the open seal allows easy lubrication. The steel cage ensures durability, and standard radial clearance simplifies installation.

This bearing is ideal for heavy-duty applications like industrial gearboxes or construction equipment. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements or upgrades.

Weighing 14.96 lb, it’s robust yet manageable for its size. ABEC-1 rated for consistent performance in demanding conditions.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 663A-654D
  • Brand TFL
  • Size 3.25" x 6" x 1.625"
  • Bore Dia 3.25"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 6"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 3"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 1.625"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 3.7499"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.06"
  • Cone Backface Backing Diameter 4.13"
  • Cup Frontface Backing Diameter 5.57"
  • Cage Cone Backface Clearance 0.17"
  • Dynamic Radial Load 96700 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 663A
  • Cup Part Number 654D
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 655
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 14400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 10100 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 25100 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 14.96 lb

Features

How Does 663A-654D Bearing Handle Combined Loads?

663A-654D Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 96,700 lbf, ensuring reliable performance in demanding conditions.
The double-row tapered roller design distributes loads evenly, enhancing durability and reducing wear.
With a temperature range of -30° to 110°C, it performs well in various environments.

What Makes 663A-654D Bearing Suitable for Heavy-Duty Applications?

663A-654D Bearing features a robust steel cage that maintains roller alignment under heavy loads.
The chrome steel construction provides excellent wear resistance, extending the bearing’s service life.
Its standard radial clearance options allow for flexibility in different operational conditions.
Lubrication is required to ensure smooth operation and reduce friction.

Engineered for Reliability: 663A-654D Bearing

663A-654D Bearing’s double-row design enhances load distribution, making it ideal for combined load applications.
The tapered rollers reduce friction, ensuring efficient performance even under high stress.
With an ABEC-1 rating, it offers consistent precision for industrial use.
Its open seal type allows for easy lubrication and maintenance.

Application

Industrial Uses of 663A-654D Bearing
663A-654D Bearing is commonly used in heavy machinery like construction equipment and agricultural vehicles, where its double-row design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is 663A-654D Bearing Used?
You’ll often find 663A-654D Bearing in industrial gearboxes and power transmission systems, thanks to its high dynamic load capacity. Its inch sizing makes it a popular choice for North American machinery.

Built for Heavy-Duty Use: 663A-654D Bearing
663A-654D Bearing excels in applications like mining equipment and large conveyor systems, where reliability under heavy loads is essential. The open design allows for easy lubrication and maintenance.

Automotive vs Aerospace: Applications of 663A-654D Bearing
In automotive applications, 663A-654D Bearing supports heavy axles and drivetrains, while in aerospace, it’s used in landing gear systems. The tapered roller design ensures smooth operation in both scenarios.

Practical Applications of 663A-654D Bearing
663A-654D Bearing is ideal for wind turbine yaw systems, where its combined load capacity and durability are crucial. The standard radial clearance offers flexibility for various operational conditions.
