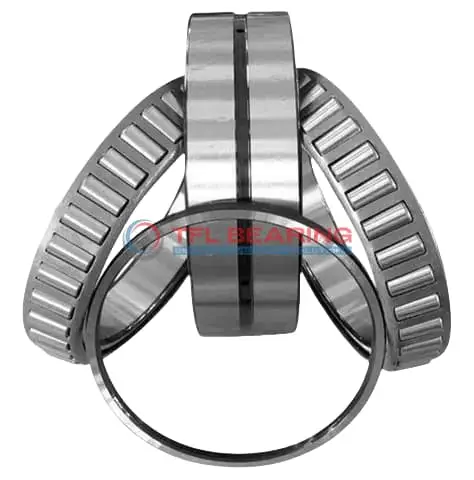

663-654DC TDO (Two-Row Double-Outer Race) (Imperial)

663-654DC TDO (Two-Row Double-Outer Race) (Imperial)

The 663-654DC is a double-row tapered roller bearing with a 3.25″ bore and 6″ outer diameter, built from sturdy chrome steel for long-lasting performance. It handles combined loads up to 96,700 lbf and works well in temperatures from -30°C to 110°C.

Its open design allows for easy lubrication, while the steel cage ensures smooth operation under heavy loads. The bearing comes with standard radial clearance but is also available in C3, C4, or C5 options for different fit requirements.

This model is part of the 655 series, making it suitable for heavy-duty applications like industrial gearboxes or large machinery. Weighing 15 lb, it’s robust yet manageable for its size, meeting RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 663-654DC
  • Brand TFL
  • Size 3.25" x 6" x 1.625"
  • Bore Dia 3.25"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 6"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 3"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 1.625"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 3.7499"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.06"
  • Cone Backface Backing Diameter 3.9"
  • Cup Frontface Backing Diameter 5.57"
  • Cage Cone Backface Clearance 0.17"
  • Dynamic Radial Load 96700 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 663
  • Cup Part Number 654DC
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 655
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 14400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 10100 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 25100 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 15 lb

Features

Performance Features of 663-654DC Bearing

663-654DC Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 96,700 lbf, ensuring reliable performance in heavy-duty applications.
The double-row tapered roller design enhances stability and load distribution.
With a temperature range of -30° to 110°C, it performs well in various operating conditions.

How Does 663-654DC Bearing Enhance Load Distribution?

663-654DC Bearing’s double-row tapered roller design improves load distribution, reducing stress on individual components.
The chrome steel construction ensures durability and resistance to wear under high loads.
Its standard radial clearance allows for smooth operation in diverse applications.
The open seal type facilitates easy lubrication, maintaining optimal performance.

Built for Reliability: 663-654DC Bearing

663-654DC Bearing features a steel cage that keeps rollers aligned, minimising wear and extending service life.
Its dynamic radial rating for two rows reaches 25,100 lbf, making it suitable for demanding environments.
The bearing’s precise tolerances ensure consistent performance and easy installation.
With an ABEC-1 rating, it balances precision and cost-effectiveness.

Steel vs Ceramic Bearings: Strengths of 663-654DC Bearing

663-654DC Bearing’s chrome steel rollers provide excellent strength and durability for heavy loads.
The tapered roller design ensures efficient load handling in combined thrust and radial applications.
Its standard radial clearance offers flexibility for various operational needs.
The open construction allows for straightforward maintenance and lubrication.

Application

Industrial Uses of 663-654DC Bearing
663-654DC Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its double-row design handles combined radial and thrust loads efficiently. The chrome steel construction ensures durability in demanding environments.
In automotive applications, 663-654DC Bearing supports axle systems and wheel hubs, providing reliable performance under varying loads. Its inch sizing makes it a preferred choice for North American vehicle models.
For industrial automation, 663-654DC Bearing excels in conveyor systems and robotic arms, where precision and load capacity are essential. The open seal design allows for easy lubrication, extending service life.
In agricultural machinery, 663-654DC Bearing withstands harsh conditions, such as dust and moisture, while maintaining smooth operation. Its tapered roller design ensures consistent performance under heavy loads.

Where Is 663-654DC Bearing Used?
663-654DC Bearing finds its place in wind turbines, where its ability to handle high radial and thrust loads is crucial. The steel cage adds stability during prolonged operation.
You’ll also spot 663-654DC Bearing in railway applications, particularly in bogie systems, where its durability and load capacity keep trains running smoothly. The standard radial clearance ensures compatibility with various setups.

Built for Heavy-Duty Use: 663-654DC Bearing
663-654DC Bearing is ideal for forklifts and other material handling equipment, thanks to its robust construction and high dynamic load rating. The double-row design distributes stress evenly.
In marine applications, 663-654DC Bearing resists corrosion and wear, making it suitable for ship propulsion systems. The ABEC-1 rating ensures reliable performance under moderate precision requirements.

Automotive vs Aerospace: Applications of 663-654DC Bearing
In automotive settings, 663-654DC Bearing is often used in differential systems, where its combined load capacity shines. The inch measurements align with standard repair parts.
For aerospace ground support equipment, 663-654DC Bearing provides dependable performance in tow tractors and loading systems. Its temperature range suits both indoor and outdoor use.
