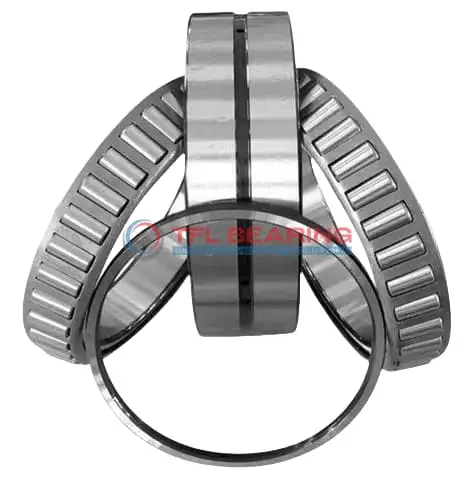

663-654D TDO (Two-Row Double-Outer Race) (Imperial)

663-654D TDO (Two-Row Double-Outer Race) (Imperial)

The 663-654D is a two-row tapered roller bearing with a 3.25″ bore and 6″ outer diameter, built from sturdy chrome steel for long-lasting performance. It handles combined loads up to 96,700 lbf and is designed for heavy-duty applications.

Its double-row construction provides extra stability, while the open seal allows for easy lubrication. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

With standard radial clearance and ABEC-1 rating, it offers reliable precision for industrial use. Ideal for machinery like gearboxes or heavy equipment where high radial and thrust loads are common.

Weighing 15 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 663-654D
  • Brand TFL
  • Size 3.25" x 6" x 1.625"
  • Bore Dia 3.25"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 6"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 3"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 1.625"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 3.7499"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.06"
  • Cone Backface Backing Diameter 3.9"
  • Cup Frontface Backing Diameter 5.57"
  • Cage Cone Backface Clearance 0.17"
  • Dynamic Radial Load 96700 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 663
  • Cup Part Number 654D
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 655
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 14400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 10100 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 25100 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 15 lb

Features

How Is 663-654D Bearing Engineered for Reliability?

663-654D Bearing features a double-row tapered roller design, providing strong resistance to combined radial and thrust loads.
Its chrome steel construction ensures durability, with a dynamic radial load capacity of 96,700 lbf.
The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

What Makes 663-654D Bearing Suitable for High-Temperature Applications?

663-654D Bearing operates efficiently in temperatures ranging from -30° to 110°C, making it versatile for different environments.
Its chrome steel rollers and rings resist wear, ensuring consistent performance under heavy loads.
The open seal design allows for easy lubrication, reducing maintenance needs.
With standard radial clearance options, it offers flexibility for various applications.

Built for Durability: 663-654D Bearing

663-654D Bearing’s double-row construction enhances load distribution, improving longevity under heavy radial and thrust loads.
The chrome steel components resist corrosion, ensuring reliable operation in harsh conditions.
Its steel cage keeps rollers in place, minimising wear and tear.
With a dynamic radial rating of 25,100 lbf for two rows, it delivers dependable performance.

Steel vs Ceramic Bearings: Strengths of 663-654D Bearing

663-654D Bearing uses high-quality chrome steel for both rollers and rings, offering excellent strength and durability.
Its tapered roller design efficiently handles combined loads, with a dynamic thrust rating of 10,100 lbf.
The steel cage ensures smooth operation, reducing friction and noise.
With standard radial clearance options, it provides reliable performance in various applications.

Application

Industrial Uses of 663-654D Bearing
The 663-654D Bearing is commonly used in heavy machinery, such as construction equipment and mining vehicles, where its double-row design handles combined radial and thrust loads efficiently.
Its chrome steel construction ensures durability in harsh environments, making it a reliable choice for long-term use.

What Makes 663-654D Bearing a Preferred Choice?
In automotive applications, 663-654D Bearing supports wheel hubs and differential systems, providing smooth performance under heavy loads.
The imperial sizing makes it compatible with many North American vehicle models, simplifying replacements and upgrades.

Built for Heavy-Duty Use: 663-654D Bearing
For industrial conveyors and material handling systems, 663-654D Bearing offers excellent load capacity and stability.
The open seal design allows for easy lubrication, extending the bearing’s service life in high-demand settings.

Automotive vs Aerospace: Applications of 663-654D Bearing
In automotive systems, 663-654D Bearing is ideal for axle assemblies, where its tapered rollers manage varying loads effectively.
While less common in aerospace, it can be found in ground support equipment due to its robust construction and reliability.

Key Fields for 663-654D Bearing
Agricultural machinery benefits from 663-654D Bearing’s ability to withstand dirt and debris while maintaining performance.
Its standard radial clearance options make it adaptable to different operational requirements in farming equipment.
