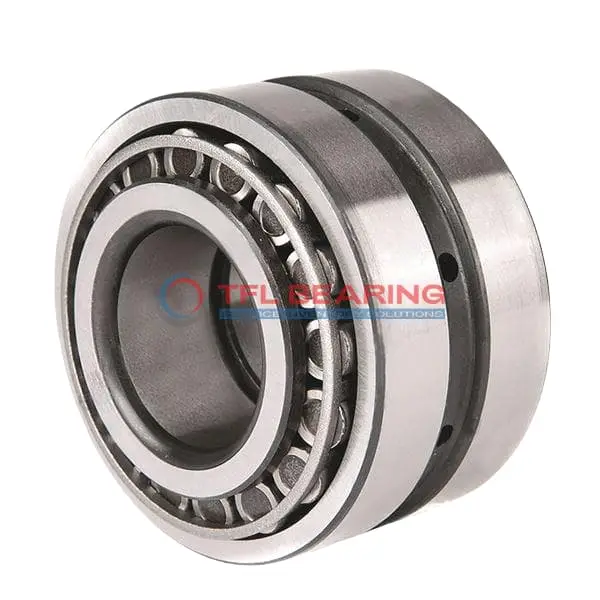

656-654DC TDO (Two-Row Double-Outer Race) (Imperial)

656-654DC TDO (Two-Row Double-Outer Race) (Imperial)

The 656-654DC is a double-row tapered roller bearing with a 2.5575″ bore and 6″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 96,700 lbf and is designed for long-lasting performance in demanding conditions.

Its open design allows for easy lubrication, while the steel cage ensures smooth operation. The bearing works well in temperatures ranging from -30°C to 110°C, making it versatile for various environments.

This model features a standard radial clearance and is ABEC-1 rated, offering reliable precision. Ideal for heavy-duty applications like industrial gearboxes or construction equipment where high radial and thrust loads are common.

Weighing 17.93 lb, it’s a robust choice for machinery requiring durability. Compliant with RoHS and REACH standards, it’s a safe and dependable option for replacements or new installations.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 656-654DC
  • Brand TFL
  • Size 2.5575" x 6" x 1.625"
  • Bore Dia 2.5575"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 6"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 3"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 1.625"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 3.7499"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.06"
  • Cone Backface Backing Diameter 3.35"
  • Cup Frontface Backing Diameter 5.57"
  • Cage Cone Backface Clearance 0.17"
  • Dynamic Radial Load 96700 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 656
  • Cup Part Number 654DC
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 655
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 14400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 10100 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 25100 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 17.93 lb

Features

How Does 656-654DC Bearing Handle Combined Loads?

656-654DC Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 96,700 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various environments.

What Makes 656-654DC Bearing Durable?

656-654DC Bearing features a double-row tapered roller design, providing enhanced load distribution.
The chrome steel construction ensures resistance to wear, even under heavy combined loads.
Its standard radial clearance allows for smooth operation, reducing maintenance needs.
With an ABEC-1 rating, it balances precision and durability for industrial applications.

Engineered for Reliability: 656-654DC Bearing

656-654DC Bearing’s double-row construction improves stability and load-handling capacity.
The chrome steel rollers and rings ensure long-lasting performance in tough conditions.
Its open design simplifies lubrication, maintaining optimal operation over time.
With a weight of 17.93 lb, it is robust yet manageable for various applications.

Application

Industrial Uses of 656-654DC Bearing
656-654DC Bearing is commonly used in heavy machinery, such as construction equipment and mining gear, where its double-row design handles combined radial and thrust loads efficiently. The chrome steel construction ensures durability in tough working conditions.

In automotive applications, 656-654DC Bearing supports wheel hubs and differential systems, providing reliable performance under high stress. Its imperial sizing makes it a good fit for North American vehicle models.

For industrial conveyor systems, 656-654DC Bearing’s open design allows for easy lubrication, extending service life in continuous operation. The tapered roller design also helps manage misalignment issues.

Where Is 656-654DC Bearing Used?
You’ll often find 656-654DC Bearing in agricultural machinery, like tractors and harvesters, where its robust build withstands dusty and high-load environments. The steel cage adds extra resilience.

In material handling equipment, 656-654DC Bearing ensures smooth operation for forklifts and cranes. Its standard radial clearance offers flexibility for various load conditions.

Built for Heavy-Duty Use: 656-654DC Bearing
656-654DC Bearing excels in forestry equipment, such as log splitters, thanks to its high dynamic radial load capacity. The double-row setup distributes forces evenly.

For railway applications, 656-654DC Bearing provides stability in axle boxes, handling both speed and weight demands. The ABEC-1 rating ensures consistent precision.

Automotive vs Aerospace: Applications of 656-654DC Bearing
In automotive settings, 656-654DC Bearing is ideal for truck transmissions, balancing power and durability. Its inch measurements align with many US-made components.

While not typical for aerospace, 656-654DC Bearing can be found in ground support equipment, where its reliability keeps operations running smoothly. The temperature range suits most climates.

What Makes 656-654DC Bearing a Preferred Choice?
656-654DC Bearing is a go-to for industrial pumps, where its tapered rollers reduce friction and wear. The open seal type simplifies maintenance.

In wind turbine yaw systems, 656-654DC Bearing handles variable loads with ease. Its chrome steel rollers resist corrosion in outdoor conditions.

Perfect Fit for Automation: 656-654DC Bearing
656-654DC Bearing works well in robotic arms, offering precise movement under load. The steel cage keeps rollers aligned for consistent performance.

For packaging machinery, 656-654DC Bearing’s combined load capacity ensures smooth, high-speed operation. Its standard radial clearance adapts to different setups.
