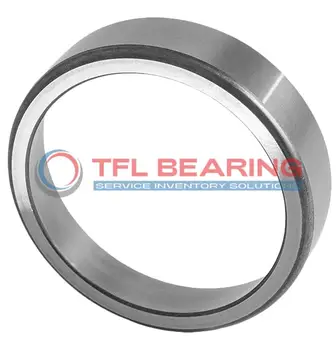

613X Single Cups (Imperial)

613X Single Cups (Imperial)

The 613X is a single cup tapered roller bearing with an outer diameter of 4.7244 inches and a width of 1.22 inches, crafted from durable chrome steel. It fits well with Timken bearings, making it a versatile replacement option.

Designed for standard use, it operates smoothly in temperatures ranging from -30°C to 110°C. Its ABEC-1 rating ensures reliable performance for general applications.

The cup features precise tolerances, with a backing diameter of 4.35 inches at the front and 4.09 inches at the back. This design provides stability and ease of installation.

Ideal for machinery requiring tapered roller bearings, it’s a practical choice for industrial maintenance. Compliant with RoHS and REACH standards, it’s safe for various environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 613X
  • Brand TFL
  • Interchangeable Timken
  • Size 4.09" x 4.7244" x 1.22"
  • Outer Dia 4.7244"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 1.22"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.12"
  • Cup Frontface Backing Diameter 4.35"
  • Cup Backface Backing Diameter 4.09"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number 622X-613X
  • Cups Type Standard
  • Series 615
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Why Choose 613X Single Cups for Precision Tasks?

613X Single Cups are crafted from chrome steel, offering durability and resistance to wear in demanding applications.
The precise outer diameter tolerance of +0.001″ to 0 ensures a snug fit, enhancing performance in tapered roller bearing systems.

With a temperature range of -30° to 110°C, 613X Single Cups maintain reliability in varied operating conditions.
Their standard cup design simplifies installation, making them a practical choice for industrial use.

The ABEC-1 rating confirms consistent quality, suitable for applications requiring dependable precision.
613X Single Cups are interchangeable with Timken, providing flexibility in maintenance and replacement.

Application

Industrial Uses of 613X Bearing
613X Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its tapered design handles radial and axial loads effectively. The chrome steel construction ensures durability in demanding environments.

Where Is 613X Bearing Used?
You’ll often find 613X Bearing in automotive applications like wheel hubs and differential systems, thanks to its reliable performance under varying loads. Its inch sizing makes it a good fit for North American vehicle models.

Built for Heavy-Duty Use: 613X Bearing
In conveyor systems and industrial gearboxes, 613X Bearing stands up to continuous operation with minimal maintenance. The standard cup design simplifies installation and replacement in busy work settings.

Automotive vs Industrial: Applications of 613X Bearing
While 613X Bearing excels in vehicle drivetrains, it’s equally at home in factory machinery like pumps and compressors. The ABEC-1 rating balances precision with cost-effectiveness for diverse needs.

Perfect Fit for Automation: 613X Bearing
613X Bearing works well in robotic arms and assembly line equipment, where smooth rotation is key. Its temperature range suits both indoor and outdoor industrial environments.
