570X-562DS TDO (Two-Row Double-Outer Race) (Imperial)

570X-562DS TDO (Two-Row Double-Outer Race) (Imperial)

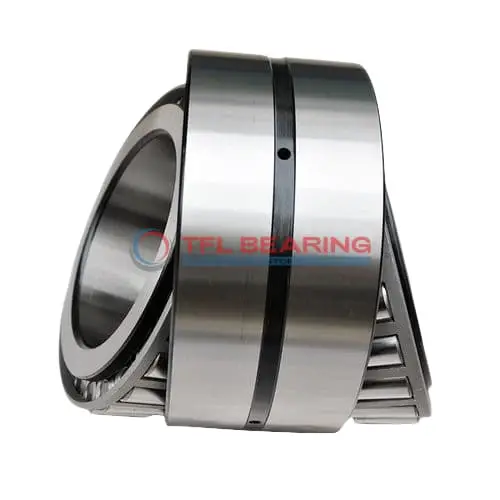

The 570X-562DS is a double-row tapered roller bearing with a 2.7559″ bore and 5.4375″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 76900 lbf and is designed for long-lasting performance.

Its open design allows easy lubrication, while the steel cage ensures smooth operation under heavy loads. The bearing works well in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model features standard radial clearance and is ABEC-1 rated for reliable precision. Ideal for industrial machinery or heavy equipment where combined radial and thrust loads are common.

Weighing 11.25 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use in most applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 570X-562DS
  • Brand TFL
  • Size 2.7559" x 5.4375" x 1.424"
  • Bore Dia 2.7559"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5.4375"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 2.5625"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 1.424"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 3.1874"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.06"
  • Cone Backface Backing Diameter 3.31"
  • Cup Frontface Backing Diameter 4.80"
  • Cage Cone Backface Clearance 0.1"
  • Dynamic Radial Load 76900 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 570X
  • Cup Part Number 562DS
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 7130 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 19900 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 11.25 lb

Features

How Does 570X-562DS Bearing Handle Combined Loads?

570X-562DS Bearing is built with chrome steel rings and rollers, offering robust performance under combined radial and thrust loads.
Its dynamic radial load capacity reaches 76,900 lbf, making it suitable for heavy-duty applications.
The double-row tapered roller design ensures stability and even load distribution.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

What Makes 570X-562DS Bearing Durable?

570X-562DS Bearing features chrome steel construction, enhancing its resistance to wear and tear.
The steel cage maintains roller alignment, reducing friction and extending service life.
Its dynamic radial rating of 19,900 lbf for two rows ensures long-lasting performance.
The standard radial clearance options provide flexibility for different operational needs.

Engineered for Precision: 570X-562DS Bearing

570X-562DS Bearing’s tapered roller design ensures precise load handling and smooth operation.
The chrome steel rollers and rings contribute to its high dynamic thrust rating of 7,130 lbf.
Its ABEC-1 rating guarantees consistent performance in industrial applications.
The bearing’s dimensions and tolerances are finely tuned for reliable fit and function.

Application

Industrial Uses of 570X-562DS Bearing
The 570X-562DS Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its double-row design handles combined radial and thrust loads efficiently. Its chrome steel construction ensures durability in demanding environments.

In automotive applications, 570X-562DS Bearing supports wheel hubs and differential systems, providing reliable performance under high stress. The inch sizing makes it compatible with many North American vehicle models.

For industrial automation, 570X-562DS Bearing’s open design and standard radial clearance allow for smooth operation in conveyor systems and robotic arms. The steel cage adds stability during high-speed rotations.

Where Is 570X-562DS Bearing Used?
You’ll often find 570X-562DS Bearing in agricultural machinery, like tractors and harvesters, where its tapered roller design manages heavy loads effortlessly. The ABEC-1 rating ensures consistent performance.

In material handling systems, 570X-562DS Bearing’s dynamic radial load capacity makes it ideal for forklifts and cranes. Its temperature range also suits both indoor and outdoor applications.

Built for Heavy-Duty Use: 570X-562DS Bearing
The 570X-562DS Bearing excels in forestry equipment, such as log splitters, thanks to its robust chrome steel rollers. The double-row construction distributes loads evenly, reducing wear.

For railway applications, 570X-562DS Bearing’s tapered rollers handle the dynamic stresses of train axles. Its standard lubrication requirement simplifies maintenance in transit systems.

Automotive vs Aerospace: Applications of 570X-562DS Bearing
In automotive settings, 570X-562DS Bearing is a go-to for truck transmissions, balancing speed and load capacity. The inch measurements fit seamlessly into many commercial vehicle designs.

For aerospace ground support, 570X-562DS Bearing’s temperature tolerance makes it suitable for equipment like baggage loaders. Its steel cage ensures reliability in frequent-use scenarios.
