569-563D TDO (Two-Row Double-Outer Race) (Imperial)

569-563D TDO (Two-Row Double-Outer Race) (Imperial)

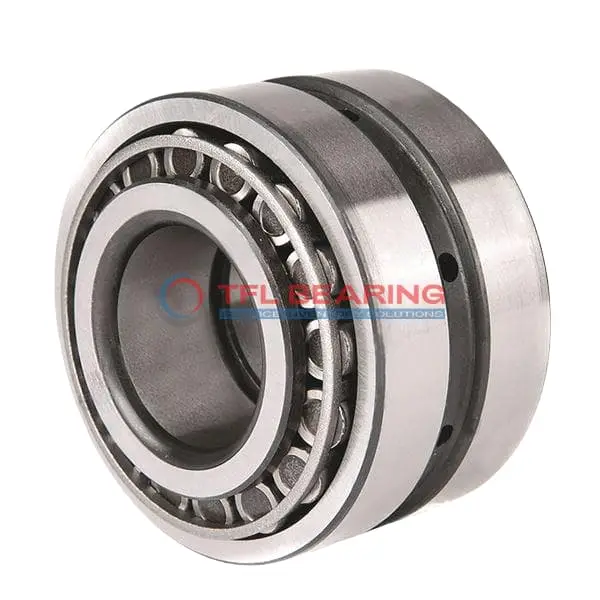

The 569-563D is a double-row tapered roller bearing with a 2.5576″ bore and 5″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 76,900 lbf and is designed for long-lasting performance in demanding conditions.

Its open design allows for easy lubrication, while the steel cage ensures smooth operation. The bearing works well in temperatures ranging from -30°C to 110°C, making it versatile for various environments.

This model is part of the 565 series and comes with standard radial clearance, though options like C3, C4, or C5 are available. Ideal for heavy-duty applications such as industrial gearboxes or large machinery where both radial and thrust loads are present.

Weighing 9.55 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements or new installations.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 569-563D
  • Brand TFL
  • Size 2.5576" x 5" x 1.424"
  • Bore Dia 2.5576"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 2.5625"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 1.424"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 3.1874"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.06"
  • Cone Backface Backing Diameter 3.19"
  • Cup Frontface Backing Diameter 4.72"
  • Cage Cone Backface Clearance 0.1"
  • Dynamic Radial Load 76900 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 569
  • Cup Part Number 563D
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 7130 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 19900 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 9.55 lb

Features

Performance Features of 569-563D Bearing

569-563D Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 76,900 lbf, ensuring reliable performance in heavy-duty applications.

The double-row tapered roller design enhances stability and load distribution.
With a standard radial clearance, it provides smooth operation across various conditions.

569-563D Bearing operates efficiently within a temperature range of -30° to 110°C.
Its steel cage maintains roller alignment, reducing wear and extending service life.

The open seal design allows for easy lubrication and maintenance.
This bearing is ideal for applications requiring durability and precision under combined loads.

Application

Industrial Uses of 569-563D Bearing
The 569-563D Bearing is commonly used in heavy machinery, such as construction equipment and mining vehicles, where its double-row design handles combined radial and thrust loads efficiently. Its chrome steel construction ensures durability in demanding environments.

In automotive applications, 569-563D Bearing supports heavy-duty axles and wheel hubs, providing reliable performance under high stress. The imperial sizing makes it a preferred choice for North American vehicle manufacturers.

For industrial automation, 569-563D Bearing’s tapered roller design offers smooth operation in conveyor systems and robotic arms. The open seal type allows for easy lubrication, extending its service life in continuous-use scenarios.

Where Is 569-563D Bearing Used?
You’ll often find 569-563D Bearing in agricultural machinery, where its robust design withstands the rigours of fieldwork. The standard radial clearance ensures consistent performance even in dusty conditions.

The bearing also excels in marine applications, such as boat trailers, thanks to its corrosion-resistant chrome steel components. Its ABEC-1 rating provides a balance of precision and affordability for general-purpose use.

Built for Heavy-Duty Use: 569-563D Bearing
569-563D Bearing is ideal for forestry equipment, where its high dynamic radial load capacity handles rough terrain with ease. The steel cage adds extra strength, making it suitable for shock loads.

In material handling systems, 569-563D Bearing’s tapered rollers reduce friction, improving energy efficiency. The inch measurements ensure compatibility with a wide range of industrial machinery.

Automotive vs Aerospace: Applications of 569-563D Bearing
In automotive settings, 569-563D Bearing is often used in truck differentials, where its combined load capacity is essential. The temperature range suits both hot and cold climates.

For aerospace ground support equipment, 569-563D Bearing provides reliable performance in tow tractors and loading systems. Its weight-to-strength ratio makes it a practical choice for mobile applications.
