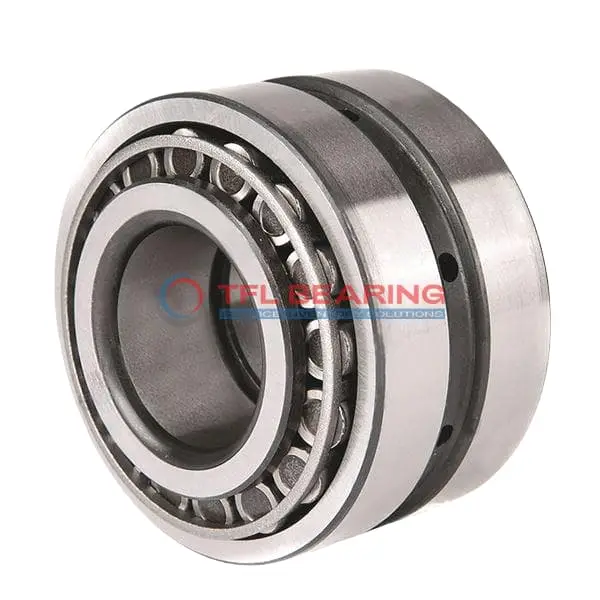

569-562DS TDO (Two-Row Double-Outer Race) (Imperial)

569-562DS TDO (Two-Row Double-Outer Race) (Imperial)

The 569-562DS is a double-row tapered roller bearing with a 2.5576″ bore and 5.4375″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 76,900 lbf and is designed for long-lasting performance.

Its open design allows easy lubrication, while the steel cage ensures smooth operation. The bearing works in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is part of the 565 series, with standard radial clearance and ABEC-1 precision. Ideal for heavy-duty applications like industrial gearboxes or vehicle axles where combined loads are common.

Weighing 11.91 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 569-562DS
  • Brand TFL
  • Size 2.5576" x 5.4375" x 1.424"
  • Bore Dia 2.5576"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5.4375"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 2.5625"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 1.424"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 3.1874"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.06"
  • Cone Backface Backing Diameter 3.19"
  • Cup Frontface Backing Diameter 4.80"
  • Cage Cone Backface Clearance 0.1"
  • Dynamic Radial Load 76900 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 569
  • Cup Part Number 562DS
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 7130 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 19900 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 11.91 lb

Features

How Does 569-562DS Bearing Handle Combined Loads?

569-562DS Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 76,900 lbf, ensuring reliable performance in demanding conditions.
The double-row tapered roller design distributes loads evenly, reducing wear and extending service life.
With a temperature range of -30° to 110°C, it performs well in various environments.

Structural Advantages of 569-562DS Bearing

569-562DS Bearing features a double-row tapered roller design, ideal for handling combined loads efficiently.
The chrome steel construction ensures durability and resistance to wear in heavy-duty applications.
Its standard radial clearance allows for smooth operation, with options for C3/C4/C5 clearances if needed.
The open seal type simplifies maintenance while keeping lubrication requirements straightforward.

Why Choose 569-562DS Bearing for Heavy-Duty Applications?

569-562DS Bearing’s two-row design provides enhanced load distribution, making it suitable for heavy-duty use.
The chrome steel rollers and rings ensure long-lasting performance under high stress.
With a dynamic radial rating of 19,900 lbf for two rows, it delivers reliable operation over time.
Its ABEC-1 rating balances precision and cost-effectiveness for industrial applications.

Application

Industrial Uses of 569-562DS Bearing
569-562DS Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its double-row design handles combined radial and thrust loads efficiently. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 569-562DS Bearing supports axle systems and wheel hubs, providing reliable performance under high loads. Its imperial sizing makes it compatible with many North American vehicle models.

For industrial automation, 569-562DS Bearing is ideal for conveyor systems and robotic arms, where precision and load capacity are essential. The open seal type allows for easy lubrication and maintenance.

Where Is 569-562DS Bearing Used?
569-562DS Bearing can be found in agricultural machinery, such as tractors and harvesters, where its tapered roller design manages heavy loads smoothly. The steel cage adds extra strength for long-term use.

In material handling equipment, 569-562DS Bearing ensures smooth operation in forklifts and cranes. Its standard radial clearance offers flexibility for various load conditions.

Built for Heavy-Duty Use: 569-562DS Bearing
569-562DS Bearing excels in forestry equipment, like log splitters and sawmills, thanks to its robust construction. The double-row setup distributes loads evenly, reducing wear.

For railway applications, 569-562DS Bearing supports bogies and axles, where its temperature range suits diverse climates. The ABEC-1 rating ensures consistent performance.

Automotive vs Aerospace: Applications of 569-562DS Bearing
In automotive settings, 569-562DS Bearing is trusted for drivetrain components, balancing speed and load demands. Its inch measurements align with many US-made parts.

For aerospace ground equipment, 569-562DS Bearing aids in landing gear systems, though it’s more common in industrial roles. The chrome steel rollers resist fatigue under repeated stress.
