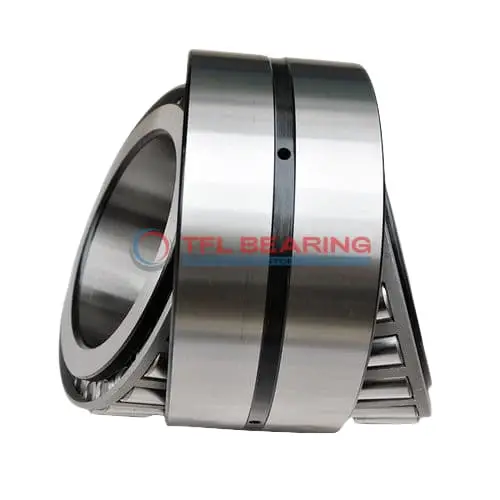

567A-563DC TDO (Two-Row Double-Outer Race) (Imperial)

567A-563DC TDO (Two-Row Double-Outer Race) (Imperial)

The 567A-563DC is a two-row tapered roller bearing with a 2.8125″ bore and 5″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 76900 lbf and is designed for long-lasting performance in demanding conditions.

Its open design allows for easy lubrication, while the steel cage ensures smooth operation. The bearing works well in temperatures from -30°C to 110°C, making it suitable for various environments.

This double-row construction provides extra stability, ideal for heavy-duty applications like industrial gearboxes or large machinery. The standard radial clearance offers flexibility for different setups.

Weighing 8.69 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements or new installations.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 567A-563DC
  • Brand TFL
  • Size 2.8125" x 5" x 1.424"
  • Bore Dia 2.8125"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 2.5625"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 1.424"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 3.1874"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.06"
  • Cone Backface Backing Diameter 3.39"
  • Cup Frontface Backing Diameter 4.72"
  • Cage Cone Backface Clearance 0.1"
  • Dynamic Radial Load 76900 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 567A
  • Cup Part Number 563DC
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 7130 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 19900 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 8.69 lb

Features

Performance Features of 567A-563DC Bearing

567A-563DC Bearing is built with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 76,900 lbf, making it suitable for heavy-duty applications.
The double-row tapered roller design ensures stability and efficient load distribution.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Is 567A-563DC Bearing Engineered for Reliability?

567A-563DC Bearing features a steel cage that maintains roller alignment, reducing wear and extending lifespan.
The standard radial clearance options (C3/C4/C5) allow for flexibility in different operational needs.
Its double-row construction enhances load-bearing capacity, ideal for demanding environments.
The chrome steel materials provide excellent resistance to wear and corrosion.

Built for Durability: 567A-563DC Bearing

567A-563DC Bearing’s tapered roller design ensures smooth operation even under heavy radial and thrust loads.
The dynamic thrust rating of 7,130 lbf per row highlights its strength in varied applications.
Its open seal type allows for easy lubrication, maintaining optimal performance.
The bearing’s construction meets ABEC-1 standards, ensuring consistent quality.

Application

Industrial Uses of 567A-563DC Bearing
The 567A-563DC Bearing is widely used in heavy machinery, such as construction equipment and mining tools, where its double-row design handles combined radial and thrust loads efficiently. Its chrome steel construction ensures durability in tough working conditions.

In automotive applications, 567A-563DC Bearing supports wheel hubs and drivetrain components, providing reliable performance under high stress. The imperial sizing makes it a common choice for North American vehicle models.

For industrial automation, 567A-563DC Bearing is ideal for conveyor systems and robotic arms, where its tapered roller design ensures smooth motion. The open seal type allows for easy lubrication, extending its service life.

Where Is 567A-563DC Bearing Used?
You’ll often find 567A-563DC Bearing in agricultural machinery, like tractors and harvesters, where its robust design handles uneven loads. The steel cage adds extra strength, making it suitable for rough terrain.

In manufacturing plants, 567A-563DC Bearing is used in gearboxes and pumps, where its high dynamic radial load capacity ensures consistent operation. The standard radial clearance option provides flexibility for various applications.

Built for Heavy-Duty Use: 567A-563DC Bearing
The 567A-563DC Bearing excels in forestry equipment, such as log splitters and sawmills, thanks to its tapered roller construction. Its ability to handle combined loads makes it versatile for demanding tasks.

In material handling systems, 567A-563DC Bearing supports heavy loads in cranes and forklifts. The chrome steel rollers reduce friction, enhancing efficiency and longevity.

Automotive vs Aerospace: Applications of 567A-563DC Bearing
In automotive settings, 567A-563DC Bearing is commonly used in axle systems, where its durability and load capacity are crucial. The imperial measurements align with standard vehicle designs.

For aerospace ground equipment, 567A-563DC Bearing is found in landing gear test rigs and maintenance tools. Its temperature tolerance ensures reliability in varying conditions.
