566 Single Cones (Imperial)

566 Single Cones (Imperial)

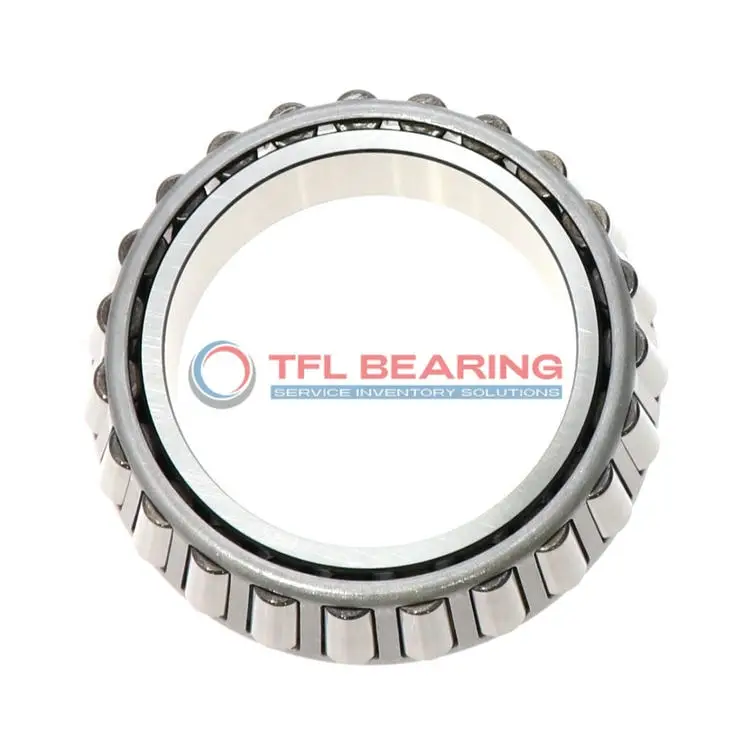

The 566 single cones are tapered roller bearings designed for combined loads, with a 2.75″ bore and made from durable chrome steel. They handle dynamic radial loads up to 44,100 lbf and are built to last in tough conditions.

Their open design allows for easy maintenance, while the steel cage ensures reliable performance. The bearings operate smoothly in temperatures ranging from -30°C to 110°C.

These cones are part of the 565 series and are interchangeable with Timken models, making them a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or vehicle axles.

Compliant with RoHS and REACH standards, they offer a standard radial clearance with options for C3, C4, or C5 grades. Their robust construction ensures stability under high loads.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 566
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 566-562 , 566-562X , 566-563 , 566-563A , 566-563X , 566-564 , 566-S-563 , 566-563-B
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 565
  • Bore Dia 2.75"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 1.424"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.14"
  • Cone Frontface Backing Diameter 3.07"
  • Cone Backface Backing Diameter 3.35"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.32"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44100 lbf
  • Static Radial Load 58900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11400 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 76900 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7130 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 19900 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

How Does 566 Bearing Handle Combined Loads?

566 Bearing is built with chrome steel rings and a steel cage, providing strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 44,100 lbf, ensuring reliable performance in demanding applications.

The tapered roller design of 566 Bearing ensures smooth operation under combined loads.
With an effective centre location of -0.32″, it maintains stability and alignment during use.

566 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its standard radial clearance is available in C3, C4, or C5 options for versatile applications.

Application

Industrial Uses of 566 Bearing
566 Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in harsh environments.

Where Is 566 Bearing Used?
You’ll find 566 Bearing in agricultural machinery, particularly in gearboxes and wheel hubs, where its robust design supports high radial and thrust loads. The inch sizing makes it a fit for older or imperial-system machines.

Built for Heavy-Duty Use: 566 Bearing
566 Bearing excels in industrial fans and pumps, offering reliable performance under continuous operation. Its steel cage provides stability, even at high speeds or under varying temperatures.

Automotive vs Aerospace: Applications of 566 Bearing
In automotive systems, 566 Bearing is often used in truck axles, while in aerospace, it supports auxiliary equipment due to its balanced load capacity. The ABEC-1 rating ensures consistent precision.

Perfect Fit for Automation: 566 Bearing
566 Bearing works well in conveyor systems and robotic arms, where its tapered rollers reduce friction. The standard radial clearance allows for smooth movement in automated processes.
