565-563DC TDO (Two-Row Double-Outer Race) (Imperial)

565-563DC TDO (Two-Row Double-Outer Race) (Imperial)

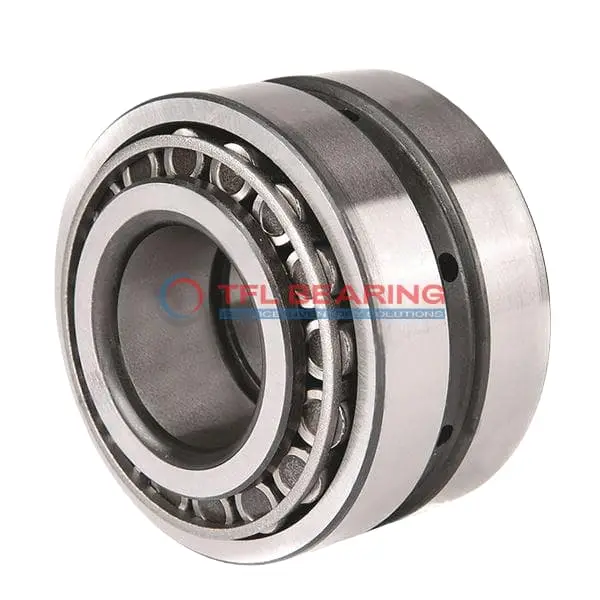

The 565-563DC is a double-row tapered roller bearing with a 2.5″ bore and 5″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 76,900 lbf and is designed for long-lasting performance in demanding conditions.

Its open design allows for easy lubrication, while the steel cage ensures smooth operation. The bearing can withstand temperatures from -30°C to 110°C, making it versatile for various environments.

This model is part of the 565 series, featuring standard cups and a robust double-row construction. Ideal for heavy-duty applications like industrial gearboxes or large machinery where radial and thrust loads are present.

Weighing 9.74 lb, it’s built to be durable yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable choice for engineers and maintenance teams.

The 565-563DC offers a dynamic radial rating of 19,900 lbf for two-row operations, ensuring reliable performance under heavy loads. Its tapered roller design provides smooth rotation and efficient load distribution.

The bearing’s standard radial clearance can be adjusted to C3, C4, or C5 for specific needs. It’s easy to maintain with regular lubrication, extending its service life.

Suitable for applications like construction equipment or agricultural machinery, where durability and load capacity are key. The ABEC-1 rating ensures consistent precision for most industrial uses.

With a weight of 9.74 lb, it balances strength and practicality. Its compliance with RoHS and REACH standards makes it a safe and sustainable option.

This double-row tapered roller bearing features a 2.5″ bore and 5″ outer diameter, crafted from high-quality chrome steel. It’s designed to handle dynamic radial loads up to 76,900 lbf and thrust loads up to 7,130 lbf.

The open seal type allows for straightforward lubrication, while the steel cage enhances durability. Operating temperatures range from -30°C to 110°C, suitable for most industrial settings.

Part of the 565 series, it’s built for heavy-duty applications like mining or transport equipment. The double-row design ensures stability and even load distribution.

Weighing 9.74 lb, it’s robust yet practical for installation. Compliant with international standards, it’s a dependable choice for engineers and repair specialists.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 565-563DC
  • Brand TFL
  • Size 2.5" x 5" x 1.424"
  • Bore Dia 2.5"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 2.5625"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 1.424"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 3.1874"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.06"
  • Cone Backface Backing Diameter 3.15"
  • Cup Frontface Backing Diameter 4.72"
  • Cage Cone Backface Clearance 0.1"
  • Dynamic Radial Load 76900 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 565
  • Cup Part Number 563DC
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 7130 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 19900 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 9.74 lb

Features

How Does 565-563DC Bearing Handle Combined Loads?

565-563DC Bearing features a double-row tapered roller design, ideal for handling both radial and thrust loads.
Its chrome steel construction ensures durability, with a dynamic radial load capacity of 76,900 lbf.

The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

565-563DC Bearing’s standard radial clearance offers flexibility for different applications.
Its open design allows for easy lubrication, ensuring smooth operation over time.

Application

Industrial Uses of 565-563DC Bearing
The 565-563DC Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its double-row design handles combined radial and thrust loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

In automotive applications, 565-563DC Bearing supports heavy-duty axles and wheel hubs, providing reliable performance under high stress. The inch sizing makes it a preferred choice for American and British vehicle models.

For industrial automation, 565-563DC Bearing’s open design allows easy lubrication, extending its lifespan in conveyor systems and robotic arms. The standard radial clearance ensures smooth operation in varied temperature conditions.

Where Is 565-563DC Bearing Used?
You’ll often find 565-563DC Bearing in agricultural machinery, where its tapered roller design handles uneven loads from ploughs and harvesters. The steel cage adds extra strength for long-term use.

In material handling systems, 565-563DC Bearing’s high dynamic radial load capacity makes it ideal for forklifts and cranes. Its ABEC-1 rating ensures consistent performance without unnecessary precision costs.

Built for Heavy-Duty Use: 565-563DC Bearing
The 565-563DC Bearing excels in forestry equipment like log splitters, thanks to its robust chrome steel rollers. Its double-row construction distributes loads evenly, reducing wear over time.

For railway applications, 565-563DC Bearing’s temperature tolerance (-30° to 110°C) ensures reliability in braking systems. The standard lubrication requirement simplifies maintenance in remote locations.

Automotive vs Aerospace: Applications of 565-563DC Bearing
In automotive drivetrains, 565-563DC Bearing handles high torque from engines and transmissions. Its inch sizing fits seamlessly into classic car restorations and modern trucks alike.

While not typically used in aerospace, 565-563DC Bearing’s load capacity makes it suitable for ground support equipment like aircraft tugs. The open design allows quick inspections between operations.
