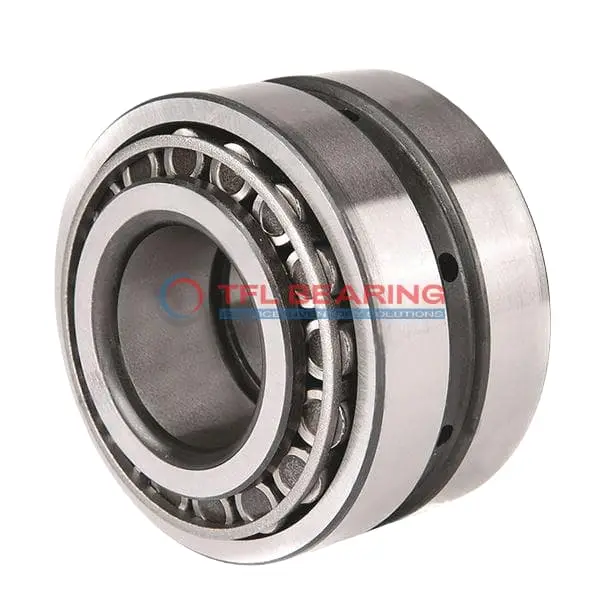

565-562DS TDO (Two-Row Double-Outer Race) (Imperial)

565-562DS TDO (Two-Row Double-Outer Race) (Imperial)

The 565-562DS is a double-row tapered roller bearing with a 2.5″ bore and 5.4375″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 76,900 lbf and works well in temperatures from -30°C to 110°C.

Its open design allows for easy lubrication, while the steel cage ensures durability. The double-row construction provides extra stability, making it suitable for heavy-duty applications.

This bearing is ideal for industrial machinery or automotive systems where both radial and thrust loads are present. It comes in standard radial clearance but is also available in C3, C4, or C5 options.

Weighing 12.09 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements or new installations.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 565-562DS
  • Brand TFL
  • Size 2.5" x 5.4375" x 1.424"
  • Bore Dia 2.5"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5.4375"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 2.5625"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 1.424"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 3.1874"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.06"
  • Cone Backface Backing Diameter 3.15"
  • Cup Frontface Backing Diameter 4.80"
  • Cage Cone Backface Clearance 0.1"
  • Dynamic Radial Load 76900 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 565
  • Cup Part Number 562DS
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 7130 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 19900 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 12.09 lb

Features

Performance Features of 565-562DS Bearing

565-562DS Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 76,900 lbf, ensuring reliable performance in heavy-duty applications.

The double-row tapered roller design enhances stability and load distribution.
This construction makes 565-562DS Bearing suitable for demanding industrial environments.

With a temperature range of -30° to 110°C, it performs well in various conditions.
The standard radial clearance options provide flexibility for different operational needs.

Steel cage construction ensures proper roller alignment, reducing wear.
This design choice extends the bearing’s service life and maintains efficiency.

Application

Industrial Uses of 565-562DS Bearing
The 565-562DS Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its double-row design handles combined radial and thrust loads efficiently. Its chrome steel construction ensures durability in demanding environments.

In automotive applications, 565-562DS Bearing supports axle systems and wheel hubs, providing reliable performance under high stress. The imperial sizing makes it a preferred choice for North American vehicle manufacturers.

For industrial conveyors, 565-562DS Bearing’s open design allows for easy lubrication, extending service life in continuous operation. The standard radial clearance also ensures smooth performance in varying load conditions.

Where Is 565-562DS Bearing Used?
You’ll often find 565-562DS Bearing in agricultural machinery, where its tapered roller design handles uneven loads from tillers and harvesters. The steel cage adds extra strength for rough terrain.

In manufacturing plants, 565-562DS Bearing is ideal for gearboxes and reducers, thanks to its high dynamic radial load capacity. The ABEC-1 rating ensures consistent precision for industrial applications.

Built for Heavy-Duty Use: 565-562DS Bearing
565-562DS Bearing excels in forestry equipment, like log splitters and sawmills, where its combined load capability is essential. The chrome steel rollers resist wear even under constant use.

For railway applications, 565-562DS Bearing supports bogie systems, ensuring smooth movement under heavy loads. Its temperature range of -30° to 110°C makes it suitable for diverse climates.

Automotive vs Aerospace: Applications of 565-562DS Bearing
In automotive systems, 565-562DS Bearing is trusted for drivetrain components, balancing speed and load requirements. Its imperial measurements align with standard US automotive designs.

For aerospace ground equipment, 565-562DS Bearing handles heavy loads in cargo loaders and maintenance tools. The open seal type simplifies inspection and maintenance routines.

Key Fields for 565-562DS Bearing
565-562DS Bearing is a go-to for oilfield machinery, where its double-row construction manages high radial and thrust loads from drilling operations. The steel cage ensures stability in harsh conditions.

In power generation, 565-562DS Bearing supports turbine assemblies, offering reliable performance under continuous rotation. Its standard radial clearance adapts well to thermal expansion.
