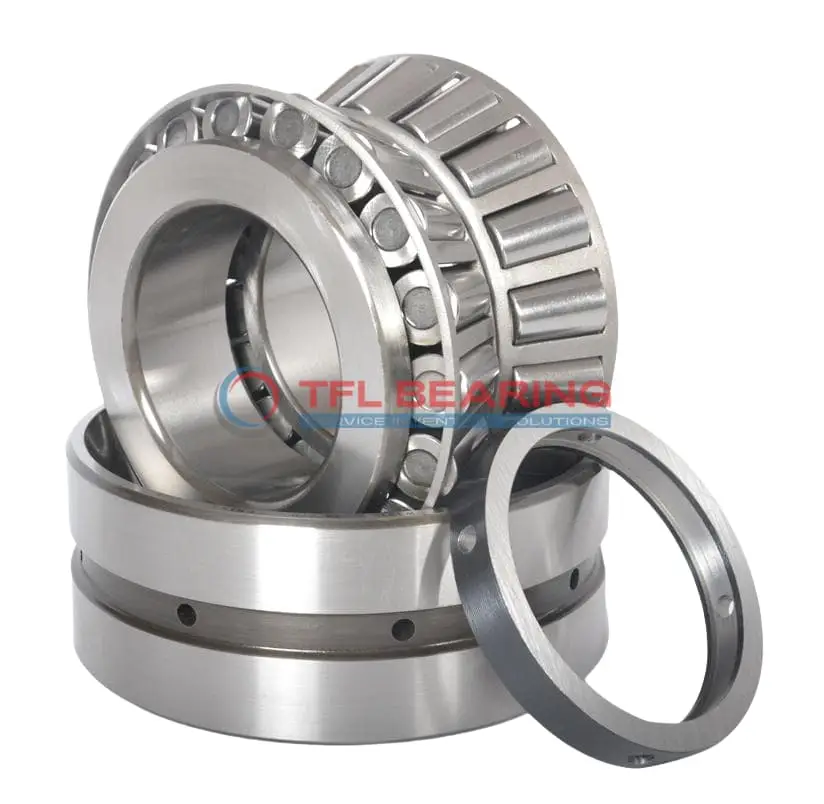

543-533DC TDO (Two-Row Double-Outer Race) (Imperial)

543-533DC TDO (Two-Row Double-Outer Race) (Imperial)

The 543-533DC is a double-row tapered roller bearing with a 1.57″ bore and 4.37″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 67400 lbf and is designed for long-lasting performance in demanding conditions.

Its open design allows for easy lubrication, while the steel cage ensures smooth operation. The bearing works well in temperatures from -30°C to 110°C, making it versatile for various environments.

This model is part of the 535 series and comes with standard radial clearance, though options like C3/C4/C5 are available. Ideal for heavy-duty applications like industrial gearboxes or construction equipment where reliability is key.

Weighing 8.62 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for most industrial settings.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 543-533DC
  • Brand TFL
  • Size 1.5748" x 4.375" x 1.455"
  • Bore Dia 1.5748"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.375"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 2.5"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 1.455"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 3.125"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.06"
  • Cone Backface Backing Diameter 2.24"
  • Cup Frontface Backing Diameter 3.96"
  • Cage Cone Backface Clearance 0.08"
  • Dynamic Radial Load 67400 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 543
  • Cup Part Number 533DC
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 535
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 10000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 5090 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 17500 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 8.62 lb

Features

How Does 543-533DC Bearing Handle Combined Loads?

543-533DC Bearing is built with chrome steel rings and rollers, offering robust performance under combined radial and thrust loads.
Its dynamic radial load capacity reaches 67,400 lbf, making it suitable for heavy-duty applications.
The double-row tapered roller design ensures stability and even load distribution, enhancing durability.
With a temperature range of -30° to 110°C, it performs reliably in various operating conditions.

What Makes 543-533DC Bearing Suitable for Heavy-Duty Applications?

543-533DC Bearing features a double-row tapered roller design, providing excellent load-carrying capacity.
The chrome steel construction resists wear, ensuring long service life even under high stress.
Its dynamic radial rating of 17,500 lbf for two rows makes it ideal for demanding industrial uses.
The standard radial clearance options allow for flexibility in different operational environments.

Engineered for Reliability: 543-533DC Bearing

543-533DC Bearing’s steel cage maintains roller alignment, reducing friction and wear.
The tapered roller design ensures smooth operation under both radial and thrust loads.
With a wide temperature range, it performs consistently in varying conditions.
Its robust construction minimises maintenance needs, lowering long-term costs.

Steel vs Ceramic Bearings: Strengths of 543-533DC Bearing

543-533DC Bearing uses chrome steel for both rings and rollers, offering high strength and durability.
The material choice ensures resistance to heavy loads and prolonged use without significant wear.
Its dynamic thrust rating of 5,090 lbf complements its radial load capabilities.
The open design allows for easy lubrication, maintaining optimal performance over time.

Performance Features of 543-533DC Bearing

543-533DC Bearing’s double-row design enhances load distribution, improving efficiency.
The chrome steel components provide excellent resistance to wear and fatigue.
With a standard ABEC-1 rating, it balances precision and affordability.
Its wide operating temperature range ensures versatility across different applications.

Application

Industrial Uses of 543-533DC Bearing
The 543-533DC Bearing is commonly used in heavy machinery like construction equipment, where its double-row design handles combined radial and thrust loads efficiently. Its chrome steel construction ensures durability in demanding environments.

In automotive applications, 543-533DC Bearing supports wheel hubs and drivetrains, providing reliable performance under varying loads. The imperial sizing makes it a preferred choice for North American vehicle models.

For industrial automation, 543-533DC Bearing’s open design allows for easy lubrication, extending its service life in high-speed conveyor systems. The steel cage adds stability during prolonged operation.

Where Is 543-533DC Bearing Used?
You’ll often find 543-533DC Bearing in agricultural machinery, where its tapered roller design handles uneven loads effortlessly. The standard radial clearance ensures smooth operation in dusty conditions.

Built for Heavy-Duty Use: 543-533DC Bearing
This bearing excels in mining equipment, thanks to its high dynamic radial load capacity. The double-row configuration distributes stress evenly, reducing wear over time.

Automotive vs Aerospace: Applications of 543-533DC Bearing
In automotive systems, 543-533DC Bearing supports heavy axles, while in aerospace, it’s used in landing gear assemblies. Its temperature range suits both ground and high-altitude operations.

What Makes 543-533DC Bearing a Preferred Choice?
Its versatility shines in marine applications, where corrosion-resistant materials and robust construction withstand harsh saltwater environments. The ABEC-1 rating ensures consistent precision.

Key Fields for 543-533DC Bearing
Railway systems benefit from 543-533DC Bearing’s ability to handle heavy loads and vibrations. The tapered rollers provide smooth rotation even under extreme conditions.

Perfect Fit for Automation: 543-533DC Bearing
In robotic arms, 543-533DC Bearing offers precise movement and load distribution. The steel cage minimizes friction, ensuring long-term reliability in repetitive tasks.

How Does 543-533DC Bearing Support High-Speed Operations?
Its balanced design reduces heat buildup in industrial fans, maintaining efficiency at high RPMs. The open seal type allows for easy maintenance and lubrication.
