541-533D TDO (Two-Row Double-Outer Race) (Imperial)

541-533D TDO (Two-Row Double-Outer Race) (Imperial)

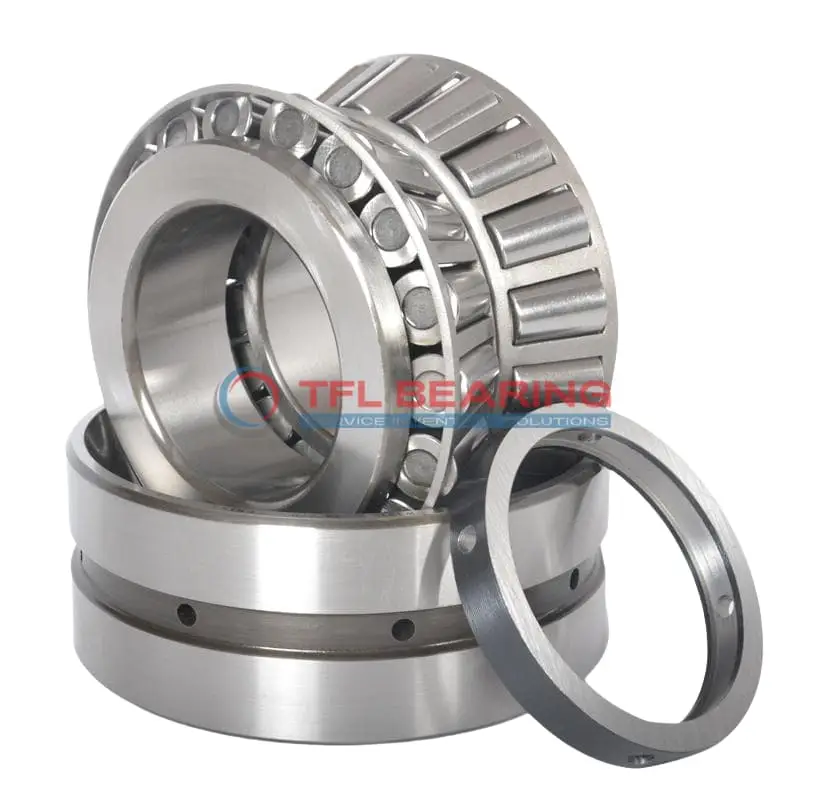

The 541-533D is a double-row tapered roller bearing with a 1.625″ bore and 4.375″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 67400 lbf and is designed for long-lasting performance.

Its open design allows easy lubrication, while the steel cage ensures smooth operation. The bearing works well in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is part of the 535 series, with standard radial clearance and ABEC-1 precision. Ideal for heavy-duty applications like industrial gearboxes or machinery where combined loads are common.

Weighing 8.51 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 541-533D
  • Brand TFL
  • Size 1.625" x 4.375" x 1.455"
  • Bore Dia 1.625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.375"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 2.5"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 1.455"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 3.125"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.06"
  • Cone Backface Backing Diameter 2.28"
  • Cup Frontface Backing Diameter 3.96"
  • Cage Cone Backface Clearance 0.08"
  • Dynamic Radial Load 67400 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 541
  • Cup Part Number 533D
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 535
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 10000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 5090 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 17500 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 8.51 lb

Features

How Is 541-533D Bearing Engineered for Reliability?

541-533D Bearing features a double-row tapered roller design, providing strong resistance to combined loads.
Its chrome steel construction ensures durability, with a dynamic radial load capacity of 67,400 lbf.

The precision-engineered cage keeps rollers aligned, reducing friction and extending service life.
With a standard radial clearance, it offers reliable performance in various industrial applications.

541-533D Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open design allows for easy lubrication, ensuring smooth operation over time.

The bearing’s double-row construction distributes loads evenly, enhancing stability.
Its ABEC-1 rating confirms consistent quality and performance in demanding conditions.

Application

Key Fields for 541-533D Bearing
541-533D Bearing is commonly used in heavy machinery, such as construction equipment and mining vehicles, where its double-row design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is 541-533D Bearing Used?
You’ll often find 541-533D Bearing in agricultural machinery, like tractors and harvesters, where its tapered roller design provides stability under varying loads. The inch sizing makes it a good fit for North American equipment standards.

Built for Heavy-Duty Use: 541-533D Bearing
541-533D Bearing works well in industrial gearboxes, supporting high torque and rotational speeds. Its open seal type allows for easy lubrication, extending service life in demanding applications.

Automotive vs Aerospace: Applications of 541-533D Bearing
In automotive wheel hubs, 541-533D Bearing offers reliable performance, while its precision makes it suitable for aerospace landing gear components. The ABEC-1 rating ensures consistent quality across both sectors.

Industrial Uses of 541-533D Bearing
541-533D Bearing is a solid choice for conveyor systems in manufacturing plants, where its dynamic load capacity keeps operations running smoothly. The steel cage adds extra strength for long-term use.
