539W-533D TDO (Two-Row Double-Outer Race) (Imperial)

Brand: TFL Bearing 2.125" x 4.375" x 1.455" Inch Open
Part number: 539W-533D
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia2.125"
Bore Dia Tolerance+0.005" to 0
Outer Dia4.375"
Outer Dia Tolerance+0.001" to 0
Double Cup Width2.5"
Double Cup Width Tolerance+0.003" to -0.01
Cone Width1.455"
Cone Width Tolerance+0.002" to -0.01
Bearing Width Across Cups3.125"
Bearing Width Across Cups Tolerance+0.008" to 0
Cone Backface Backing Diameter2.68"
Cup Frontface Backing Diameter3.96"
Performance
Dynamic Radial Load67,400 lbf
Dynamic Radial Rating(One Row 90 Million Revolutions)10,000 lbf
Dynamic Thrust Rating(90 Million Revolutions)5,090 lbf
Dynamic Radial Rating(Two Row 90 Million Revolutions)17,500 lbf
Temperature Range-30° to 110 °C
Characteristics
Cup Backface ToClear Radius0.06"
Cage Cone Backface Clearance0.08"
System of MeasurementInch
TypeBearing
Cone Part Number539W
Cup Part Number533D
Bearing TypeRoller
Roller Bearing TypeTapered
For Load DirectionCombined
ConstructionDouble Row
Seal TypeOpen
Cups TypeStandard
Series535
LubricationRequired
ABEC RatingABEC-1
Radial ClearanceStandard (Available in C3/C4/C5)
Weight7.33 lb
Material
Ring MaterialChrome Steel
Roller MaterialChrome Steel
Cage MaterialSteel
Compliance
RoHSCompliant
REACHCompliant

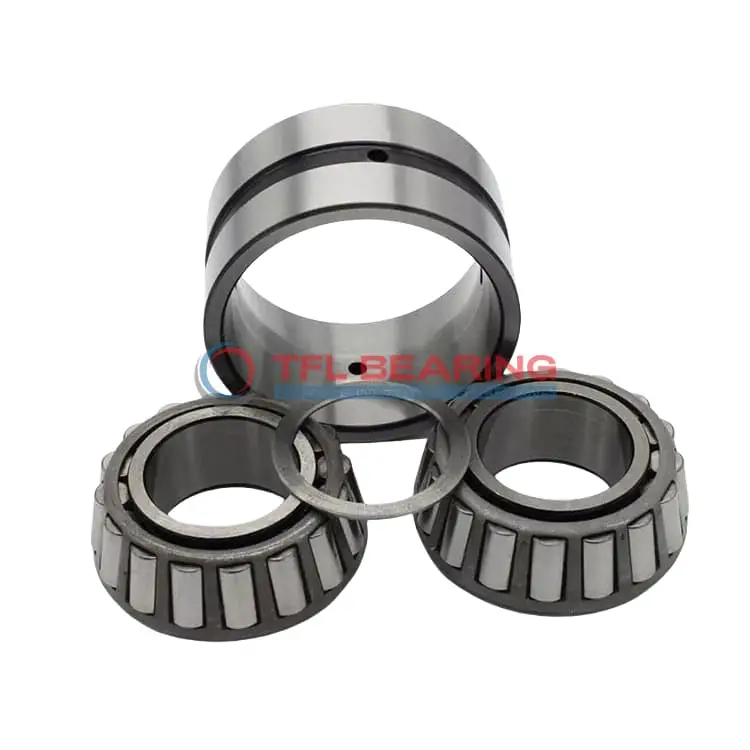

Product photo
539W-533D TDO (Two-Row Double-Outer Race) (Imperial)

Description

The 539W-533D is a double-row tapered roller bearing with a 2.125″ bore and 4.375″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 67400 lbf and is designed for long-lasting performance.

Its open design allows easy lubrication, while the steel cage ensures smooth operation. The bearing works in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is part of the 535 series, with standard radial clearance and ABEC-1 precision. Ideal for heavy-duty applications like truck axles or industrial gearboxes where combined loads are common.

Weighing 7.33 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Features

How Is 539W-533D Bearing Engineered for Reliability?

539W-533D Bearing features a double-row tapered roller design, offering robust performance under combined loads.
Its chrome steel construction ensures durability, with a dynamic radial load capacity of 67,400 lbf.

The precision tolerances in bore and outer diameters enhance alignment, reducing wear during operation.
With a standard radial clearance, it provides flexibility for various applications.

539W-533D Bearing operates efficiently within a temperature range of -30° to 110°C.
Its steel cage maintains roller alignment, contributing to long service life.

Designed for easy lubrication, this bearing simplifies maintenance while ensuring consistent performance.
The open seal type allows for straightforward inspection and re-greasing when needed.

Application

Industrial Uses of 539W-533D Bearing
539W-533D Bearing is commonly used in heavy machinery, such as construction equipment and mining vehicles, where its double-row design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is 539W-533D Bearing Used?
You’ll often find 539W-533D Bearing in agricultural machinery, like tractors and harvesters, where its robust design supports high loads and long service life. The inch sizing makes it a good fit for North American equipment standards.

Built for Heavy-Duty Use: 539W-533D Bearing
539W-533D Bearing excels in industrial gearboxes, providing reliable performance under constant stress. Its open design allows for easy lubrication, which helps maintain smooth operation over time.

Automotive vs Aerospace: Applications of 539W-533D Bearing
In automotive applications, 539W-533D Bearing is ideal for wheel hubs and differentials, offering stability under varying loads. For aerospace, its precision and strength make it suitable for landing gear systems.

Practical Applications of 539W-533D Bearing
539W-533D Bearing is a solid choice for conveyor systems in manufacturing plants, where its tapered rollers manage heavy loads efficiently. The steel cage adds extra resilience in high-speed environments.
