536-533DC TDO (Two-Row Double-Outer Race) (Imperial)

536-533DC TDO (Two-Row Double-Outer Race) (Imperial)

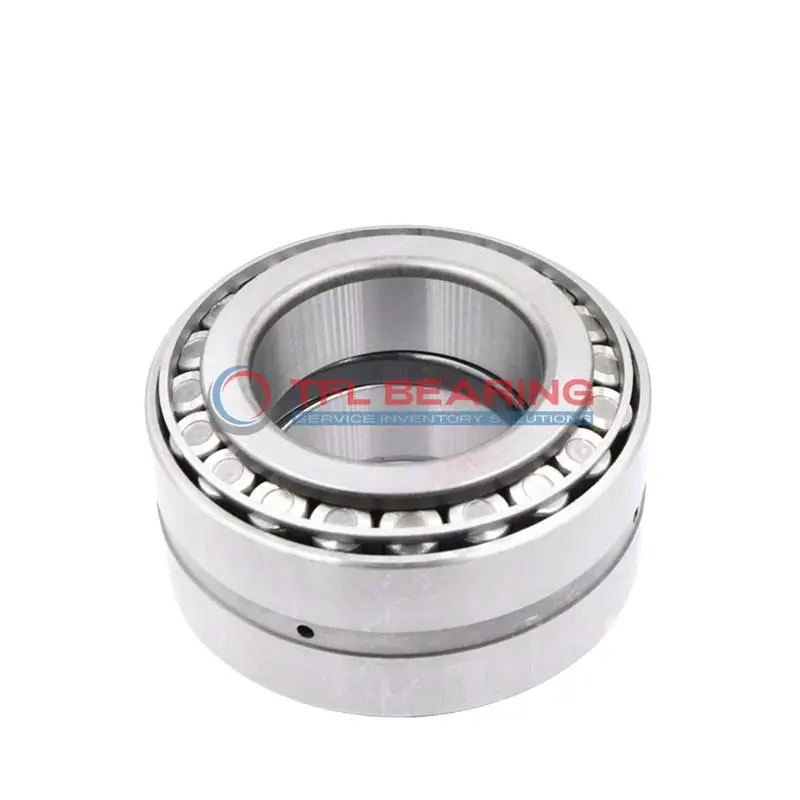

The 536-533DC is a double-row tapered roller bearing with a 1.875″ bore and 4.375″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 67400 lbf and is designed for long-lasting performance in demanding conditions.

Its open design allows for easy lubrication, while the steel cage ensures smooth operation. The bearing works well in temperatures from -30°C to 110°C, making it versatile for various environments.

This model is part of the 535 series and comes with standard radial clearance, though C3/C4/C5 options are available. Ideal for heavy-duty applications like industrial gearboxes or large machinery where combined loads are common.

Weighing 7.94 lb, it’s a robust choice for high-load scenarios. Compliant with RoHS and REACH standards, it’s a reliable and safe option for your needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 536-533DC
  • Brand TFL
  • Size 1.875" x 4.375" x 1.455"
  • Bore Dia 1.875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.375"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 2.5"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 1.455"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 3.125"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.06"
  • Cone Backface Backing Diameter 2.44"
  • Cup Frontface Backing Diameter 3.96"
  • Cage Cone Backface Clearance 0.08"
  • Dynamic Radial Load 67400 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 536
  • Cup Part Number 533DC
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 535
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 10000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 5090 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 17500 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 7.94 lb

Features

How Is 536-533DC Bearing Engineered for Reliability?

536-533DC Bearing features a double-row tapered roller design, providing strong resistance to combined radial and thrust loads.
Its chrome steel construction ensures durability, with a dynamic radial load capacity of 67,400 lbf.

The steel cage maintains proper roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

536-533DC Bearing’s standard radial clearance options offer flexibility for different applications.
Its open design simplifies lubrication, ensuring smooth operation over time.

Application

Industrial Uses of 536-533DC Bearing
536-533DC Bearing is commonly used in heavy machinery like construction equipment and mining rigs, where its double-row design handles combined radial and thrust loads efficiently. The chrome steel construction ensures durability even in demanding environments.

Where Is 536-533DC Bearing Used?
You’ll often find 536-533DC Bearing in automotive axles and wheel hubs, thanks to its robust tapered roller design. Its inch sizing makes it a reliable choice for North American vehicle manufacturers.

Built for Heavy-Duty Use: 536-533DC Bearing
536-533DC Bearing excels in industrial gearboxes, providing smooth operation under high loads. The steel cage and chrome steel rollers offer long-lasting performance with minimal maintenance.

Automotive vs Aerospace: Applications of 536-533DC Bearing
In automotive applications, 536-533DC Bearing supports heavy loads in truck axles, while its precision makes it suitable for aerospace landing gear components. The open design allows for easy lubrication.

Key Fields for 536-533DC Bearing
536-533DC Bearing is ideal for agricultural machinery, where its tapered rollers handle uneven loads effortlessly. The standard radial clearance ensures consistent performance in varying temperatures.
