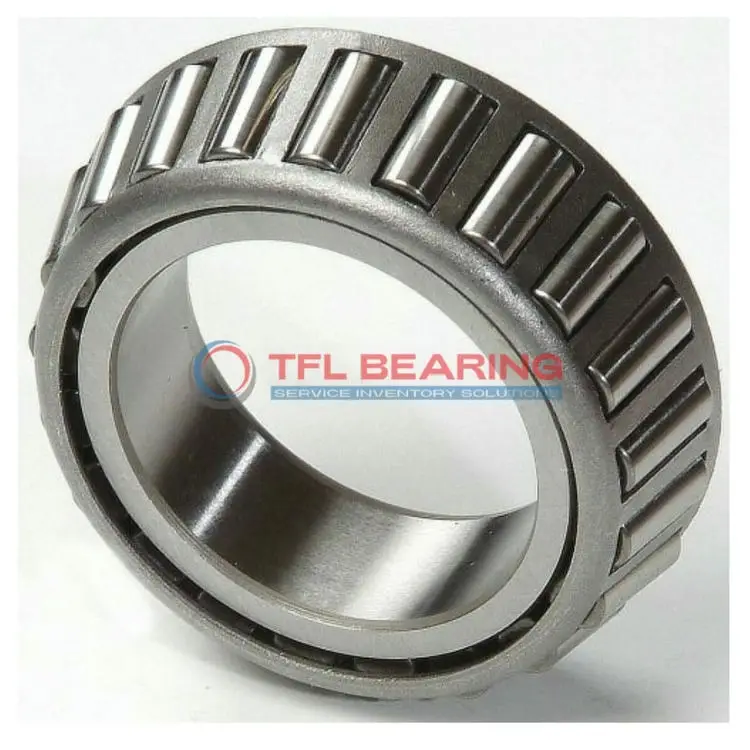

46151 Single Cones (Imperial)

46151 Single Cones (Imperial)

The 46151 is a single-row tapered roller bearing with a 1.5-inch bore, designed for combined loads. Made from chrome steel, it offers durability and can handle radial loads up to 29100 lbf.

Its open design allows for easy maintenance, while the steel cage ensures smooth operation. The bearing is effective in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like axles or gearboxes where combined loads are common.

With standard radial clearance and ABEC-1 rating, it provides reliable performance. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 46151
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 46151-46369
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 46151
  • Bore Dia 1.5"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 1.25"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.14"
  • Cone Frontface Backing Diameter 1.93"
  • Cone Backface Backing Diameter 2.17"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.06"
  • Effective Center Location -0.31"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 29100 lbf
  • Static Radial Load 35500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 7540 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 50600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5190 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 13100 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 46151 Bearing

46151 Bearing is crafted from chrome steel, offering strong resistance to combined loads.

Its dynamic radial load capacity reaches 29,100 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, enhancing durability and reducing wear.

With a temperature range of -30° to 110°C, it performs reliably in various conditions.

Application

Industrial Uses of 46151 Single Cones
46151 Single Cones are commonly used in heavy machinery, such as construction equipment and mining tools, where their tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is 46151 Single Cones Used?
You’ll often find 46151 Single Cones in automotive applications like wheel hubs and differential systems, thanks to their reliable performance under radial and thrust loads. The inch sizing makes them a good fit for American-made vehicles.

Built for Heavy-Duty Use: 46151 Single Cones
These cones excel in industrial gearboxes, where their steel cage provides stability during high-speed operations. The standard radial clearance offers flexibility for various operational needs.

Automotive vs Aerospace: Applications of 46151 Single Cones
In automotive settings, 46151 Single Cones support drivetrain components, while their precision makes them suitable for aerospace landing gear systems. The ABEC-1 rating ensures consistent performance across different industries.

Essential Roles of 46151 Single Cones
For agricultural machinery, 46151 Single Cones are a go-to choice due to their ability to withstand dirt and debris. The open seal design allows for easy maintenance in field conditions.
