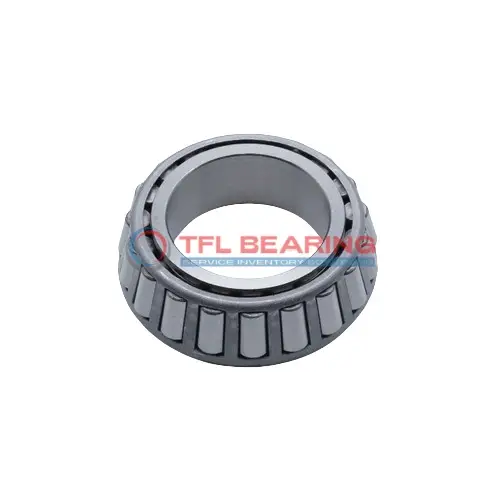

438W Single Cones (Imperial)

438W Single Cones (Imperial)

The 438W single cones are tapered roller bearings with a 1.75″ bore, designed for combined loads. Made from durable chrome steel, they handle dynamic radial loads up to 28500 lbf and static loads up to 32400 lbf.

Their open design allows easy maintenance, while the steel cage ensures reliable performance. The bearings operate smoothly in temperatures from -30°C to 110°C.

These cones are part of the 435 series and are interchangeable with Timken models. Ideal for heavy-duty applications like industrial machinery or vehicle axles where combined loads are common.

With standard radial clearance and ABEC-1 rating, they offer a balance of precision and durability. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 438W
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 438W-430X , 438W-432 , 438W-432A , 438W-432X , 438W-433 , 438W-432AB
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 435
  • Bore Dia 1.75"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 1.1772"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.14"
  • Cone Frontface Backing Diameter 2.01"
  • Cone Backface Backing Diameter 2.24"
  • Cage Cone Frontface Clearance 0.05"
  • Cage Cone Backface Clearance 0.04"
  • Effective Center Location -0.36"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 28500 lbf
  • Static Radial Load 32400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 7400 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 49700 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3600 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 12900 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

How Is 438W Bearing Engineered for Reliability?

438W Bearing features a chrome steel construction, providing strength and durability for combined load applications.
Its tapered roller design ensures efficient load distribution, enhancing performance under dynamic radial loads up to 28,500 lbf.
The steel cage maintains proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in varied conditions.

Application

Industrial Uses of 438W Bearing
The 438W Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in tough working conditions.

Where Is 438W Bearing Used?
You’ll often find 438W Bearing in automotive axles and wheel hubs, thanks to its ability to manage both radial and thrust loads smoothly. The inch sizing makes it a go-to choice for machinery requiring imperial measurements.

Built for Heavy-Duty Use: 438W Bearing
This bearing excels in industrial gearboxes, where its single-row design provides reliable performance under high stress. The steel cage adds extra strength, making it suitable for long-term use.

Automotive vs Aerospace: Applications of 438W Bearing
In automotive systems, 438W Bearing supports wheel assemblies, while in aerospace, it’s used in landing gear for its robust load capacity. The standard radial clearance ensures smooth operation in both fields.

Perfect Fit for Automation: 438W Bearing
For automated conveyor systems, 438W Bearing offers precise movement and low maintenance. Its open seal design allows for easy lubrication, keeping operations running smoothly.
