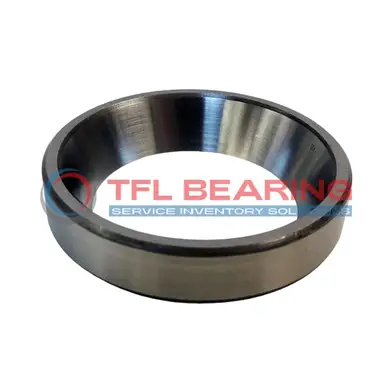

414X Single Cups (Imperial)

414X Single Cups (Imperial)

The 414X is a single cup tapered roller bearing with an outer diameter of 3.5 inches and a width of 0.875 inches, made from sturdy chrome steel. It fits well with Timken models and operates smoothly in temperatures from -30°C to 110°C.

Its standard cup design ensures easy installation and reliable performance, while the ABEC-1 rating provides decent precision for general use. The cup’s dimensions and tolerances make it a versatile choice for various setups.

This bearing is compatible with multiple part numbers, including 415-414X and 422-414X, offering flexibility for replacements. Ideal for industrial machinery or automotive applications where tapered roller bearings are needed.

Compliant with RoHS and REACH standards, it’s a safe and durable option for everyday use. The compact size and robust build make it suitable for tight spaces and heavy loads.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 414X
  • Brand TFL
  • Interchangeable Timken
  • Size 3.07" x 3.5" x 0.875"
  • Outer Dia 3.5"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 0.875"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.03"
  • Cup Frontface Backing Diameter 3.18"
  • Cup Backface Backing Diameter 3.07"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number 415-414X , 416-414X , 417-414X , 418-414X , 419-414X , 420-414X , 421-414X , 422-414X
  • Cups Type Standard
  • Series 415
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 414X Bearing

414X Bearing is crafted from chrome steel, offering durability and resistance to wear in various applications.
Its tapered roller design ensures efficient load distribution, enhancing performance under stress.

The standard cup type simplifies compatibility with multiple bearing part numbers, providing versatility.
With a temperature range of -30° to 110°C, 414X Bearing performs reliably in diverse conditions.

ABEC-1 rating confirms its precision, making it suitable for general industrial use.
RoHS and REACH compliance ensure it meets environmental and safety standards.

Application

Industrial Uses of 414X Bearing
414X Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its tapered design handles radial and axial loads effectively. The chrome steel construction ensures durability even in tough working conditions.

What Makes 414X Bearing a Preferred Choice?
In automotive applications, 414X Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it compatible with many North American vehicle models.

Built for Heavy-Duty Use: 414X Bearing
For industrial conveyor systems, 414X Bearing offers smooth operation and long service life, thanks to its robust design. The standard cup type simplifies installation and maintenance.

Automotive vs Industrial: Applications of 414X Bearing
In automotive settings, 414X Bearing supports high-load components like axles, while in industrial settings, it excels in gearboxes and pulleys. Its versatility makes it a go-to choice for many engineers.

Where Is 414X Bearing Used?
You’ll often find 414X Bearing in mining equipment, where its ability to handle heavy loads and harsh environments is crucial. The ABEC-1 rating ensures consistent performance for general industrial use.
