396A-394D TDO (Two-Row Double-Outer Race) (Imperial)

Brand: TFL Bearing 1.7712" x 4.3307" x 0.866" Inch Open
Part number: 396A-394D
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia1.7712"
Bore Dia Tolerance+0.005" to 0
Outer Dia4.3307"
Outer Dia Tolerance+0.001" to 0
Double Cup Width1.8125"
Double Cup Width Tolerance+0.003" to -0.01
Cone Width0.866"
Cone Width Tolerance+0.002" to -0.01
Bearing Width Across Cups2.0624"
Bearing Width Across Cups Tolerance+0.008" to 0
Cone Backface Backing Diameter2.48"
Cup Frontface Backing Diameter4.12"
Performance
Dynamic Radial Load38,700 lbf
Dynamic Radial Rating(One Row 90 Million Revolutions)5,760 lbf
Dynamic Thrust Rating(90 Million Revolutions)3,970 lbf
Dynamic Radial Rating(Two Row 90 Million Revolutions)10,000 lbf
Temperature Range-30° to 110 °C
Characteristics
Cup Backface ToClear Radius0.03"
Cage Cone Backface Clearance0.05"
System of MeasurementInch
TypeBearing
Cone Part Number396A
Cup Part Number394D
Bearing TypeRoller
Roller Bearing TypeTapered
For Load DirectionCombined
ConstructionDouble Row
Seal TypeOpen
Cups TypeStandard
Series395
LubricationRequired
ABEC RatingABEC-1
Radial ClearanceStandard (Available in C3/C4/C5)
Weight5.17 lb
Material
Ring MaterialChrome Steel
Roller MaterialChrome Steel
Cage MaterialSteel
Compliance
RoHSCompliant
REACHCompliant

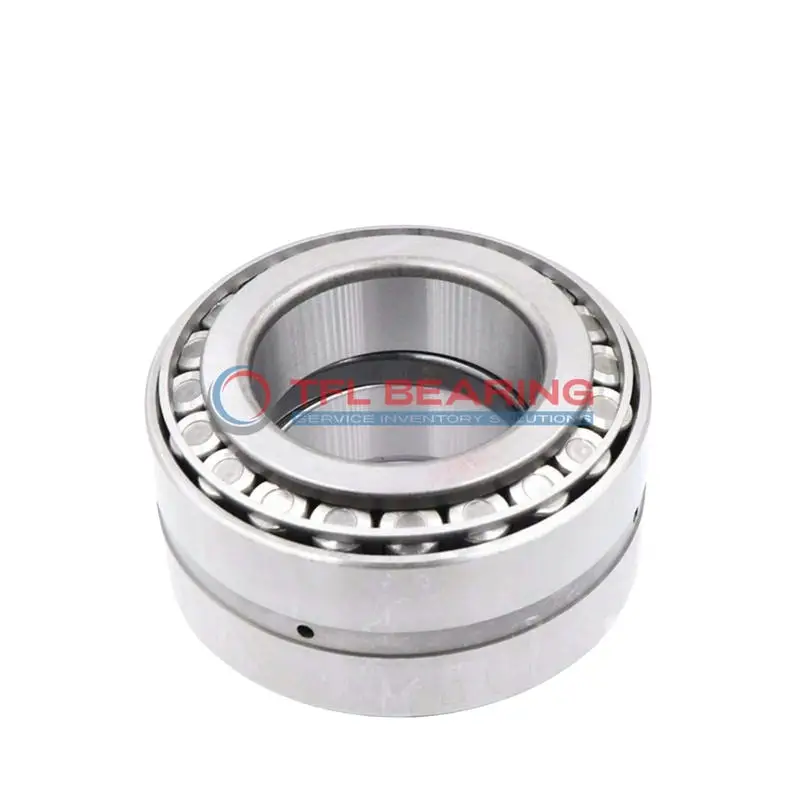

Product photo
396A-394D TDO (Two-Row Double-Outer Race) (Imperial)

Description

The 396A-394D is a two-row tapered roller bearing with a 1.7712″ bore and 4.3307″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 38700 lbf and is designed for long-lasting performance.

Its double-row construction provides extra stability, while the open design allows for easy lubrication. The bearing operates smoothly in temperatures from -30°C to 110°C.

This model is part of the 395 series, with standard radial clearance and ABEC-1 precision. It’s ideal for heavy-duty applications like truck axles or industrial gearboxes.

Weighing 5.17 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements or new installations.

Features

How Is 396A-394D Bearing Engineered for Reliability?

396A-394D Bearing features a double-row tapered roller design, providing strong resistance to combined radial and thrust loads.
Its chrome steel construction ensures durability, with a dynamic radial load capacity of 38,700 lbf.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

What Makes 396A-394D Bearing Suitable for High-Temperature Applications?

396A-394D Bearing is built with chrome steel rollers and rings, capable of withstanding temperatures up to 110°C.
Its open design allows for efficient lubrication, preventing overheating during operation.
The double-row construction distributes loads evenly, reducing heat buildup.
This makes it ideal for demanding environments where temperature fluctuations are common.

Built for Durability: 396A-394D Bearing

396A-394D Bearing’s chrome steel components resist wear, ensuring long service life even under heavy loads.
The tapered roller design minimises friction, enhancing efficiency and reducing energy consumption.
Its standard radial clearance options provide flexibility for different applications.
With a weight of 5.17 lb, it balances strength and manageability.

Application

Industrial Uses of 396A-394D Bearing
The 396A-394D Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its double-row design handles combined radial and thrust loads efficiently.
Its chrome steel construction ensures durability in harsh environments, making it a reliable choice for industrial applications.

Where Is 396A-394D Bearing Used?
You’ll often find the 396A-394D Bearing in automotive differentials and wheel hubs, where its tapered roller design provides smooth performance under heavy loads.
The inch sizing makes it compatible with many North American vehicle models, offering versatility in repairs and replacements.

Built for Heavy-Duty Use: 396A-394D Bearing
In agricultural machinery, the 396A-394D Bearing supports components like tractor axles, thanks to its robust construction and high dynamic load capacity.
The open seal type allows for easy lubrication, extending its lifespan in demanding conditions.

Automotive vs Aerospace: Applications of 396A-394D Bearing
While the 396A-394D Bearing excels in automotive systems like transmissions, its precision also makes it suitable for aerospace landing gear components.
The standard radial clearance ensures consistent performance across different temperature ranges.

Key Fields for 396A-394D Bearing
The 396A-394D Bearing is ideal for railway applications, such as freight car axles, where its combined load handling is essential.
Its steel cage adds extra strength, making it a dependable option for high-vibration environments.
