395X-394DC TDO (Two-Row Double-Outer Race) (Imperial)

Brand: TFL Bearing 2.5" x 4.3307" x 0.866" Inch Open
Part number: 395X-394DC
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia2.5"
Bore Dia Tolerance+0.005" to 0
Outer Dia4.3307"
Outer Dia Tolerance+0.001" to 0
Double Cup Width1.8125"
Double Cup Width Tolerance+0.003" to -0.01
Cone Width0.866"
Cone Width Tolerance+0.002" to -0.01
Bearing Width Across Cups2.0624"
Bearing Width Across Cups Tolerance+0.008" to 0
Cone Backface Backing Diameter3.03"
Cup Frontface Backing Diameter4.12"
Performance
Dynamic Radial Load38,700 lbf
Dynamic Radial Rating(One Row 90 Million Revolutions)5,760 lbf
Dynamic Thrust Rating(90 Million Revolutions)3,970 lbf
Dynamic Radial Rating(Two Row 90 Million Revolutions)10,000 lbf
Temperature Range-30° to 110 °C
Characteristics
Cup Backface ToClear Radius0.03"
Cage Cone Backface Clearance0.05"
System of MeasurementInch
TypeBearing
Cone Part Number395X
Cup Part Number394DC
Bearing TypeRoller
Roller Bearing TypeTapered
For Load DirectionCombined
ConstructionDouble Row
Seal TypeOpen
Cups TypeStandard
Series395
LubricationRequired
ABEC RatingABEC-1
Radial ClearanceStandard (Available in C3/C4/C5)
Weight3.98 lb
Material
Ring MaterialChrome Steel
Roller MaterialChrome Steel
Cage MaterialSteel
Compliance
RoHSCompliant
REACHCompliant

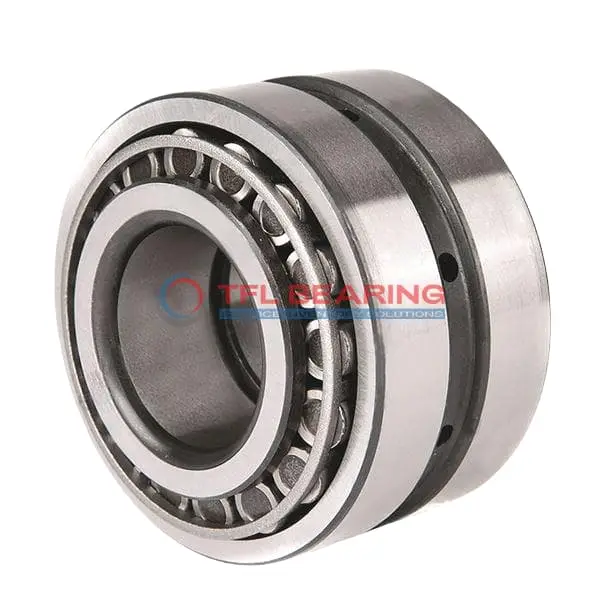

Product photo
395X-394DC TDO (Two-Row Double-Outer Race) (Imperial)

Description

The 395X-394DC is a double-row tapered roller bearing with a 2.5″ bore and 4.3307″ outer diameter, built from sturdy chrome steel for long-lasting performance.
It handles combined loads up to 38700 lbf, with a dynamic radial rating of 10000 lbf for two-row operation, making it suitable for heavy-duty applications.
The open design allows for easy lubrication, while the steel cage ensures durability under high stress.

This bearing works well in temperatures from -30°C to 110°C, ideal for industrial machinery or automotive systems where robust performance is needed.
Its standard radial clearance and ABEC-1 rating provide reliable precision for general engineering use.
Weighing 3.98 lb, it balances strength with manageable size for easier handling during installation.

Compliant with RoHS and REACH standards, it’s a safe choice for various mechanical setups. The double-row design offers stability under radial and thrust loads, perfect for gearboxes or axle systems.

Features

How Does 395X-394DC Bearing Handle Combined Loads?

395X-394DC Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 38,700 lbf, ensuring reliable performance in demanding applications.
The double-row tapered roller design distributes loads evenly, reducing wear and extending service life.
With a temperature range of -30° to 110°C, it performs well in various operating conditions.

What Makes 395X-394DC Bearing Suitable for Heavy-Duty Applications?

395X-394DC Bearing features a robust steel cage that keeps the rollers aligned, minimising friction and wear.
Its double-row construction enhances load distribution, making it ideal for heavy-duty machinery.
The chrome steel rollers and rings provide excellent durability and resistance to fatigue.
With standard radial clearance options, it offers flexibility for different installation needs.

Performance Features of 395X-394DC Bearing

395X-394DC Bearing’s tapered roller design ensures smooth operation under combined radial and thrust loads.
The chrome steel construction resists wear, maintaining performance over extended periods.
Its open design allows for easy lubrication, ensuring consistent operation.
With an ABEC-1 rating, it balances precision and cost-effectiveness for various industrial uses.

Application

Industrial Uses of 395X-394DC Bearing
395X-394DC Bearing is commonly used in heavy machinery like construction equipment, where its double-row design handles combined radial and thrust loads efficiently. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 395X-394DC Bearing supports wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it compatible with many North American vehicle models.

For industrial automation, 395X-394DC Bearing’s tapered roller design offers smooth operation in conveyor systems and robotic arms. The open seal type allows for easy lubrication, extending service life.

Essential Roles of 395X-394DC Bearing
395X-394DC Bearing is ideal for agricultural machinery, such as tractors and harvesters, where its robust design withstands harsh conditions. The standard radial clearance ensures consistent performance.

In material handling equipment, 395X-394DC Bearing’s high dynamic load capacity makes it suitable for forklifts and cranes. The steel cage adds extra strength for heavy-duty use.
