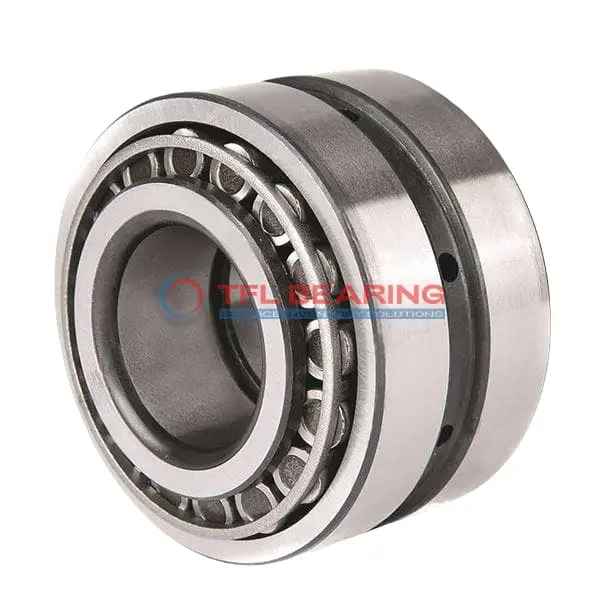

395X-394D TDO (Two-Row Double-Outer Race) (Imperial)

395X-394D TDO (Two-Row Double-Outer Race) (Imperial)

The 395X-394D is a two-row tapered roller bearing with a 2.5″ bore and 4.3307″ outer diameter, built from sturdy chrome steel. It handles combined loads with a dynamic radial capacity of 38700 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its double-row design provides extra stability, while the open seal allows for easy lubrication. The steel cage ensures durability, making it suitable for heavy-duty applications.

This bearing is ideal for industrial machinery or vehicles where high radial and thrust loads are common. It comes in standard radial clearance but can also be ordered in C3, C4, or C5 options.

Weighing 3.98 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable choice for various engineering needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 395X-394D
  • Brand TFL
  • Size 2.5" x 4.3307" x 0.866"
  • Bore Dia 2.5"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.3307"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 1.8125"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 0.866"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 2.0624"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.03"
  • Cone Backface Backing Diameter 3.03"
  • Cup Frontface Backing Diameter 4.12"
  • Cage Cone Backface Clearance 0.05"
  • Dynamic Radial Load 38700 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 395X
  • Cup Part Number 394D
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 395
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 5760 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 3970 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 10000 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.98 lb

Features

How Is 395X-394D Bearing Engineered for Reliability?

395X-394D Bearing features a double-row tapered roller design, providing strong resistance to combined radial and thrust loads.
Its chrome steel construction ensures durability, with a dynamic radial load capacity of 38,700 lbf.

The precision-engineered cage keeps rollers aligned, reducing wear and extending service life.
With a standard radial clearance, it offers reliable performance in various applications.

395X-394D Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open design allows for easy lubrication, ensuring smooth operation over time.

Application

Industrial Uses of 395X-394D Bearing
395X-394D Bearing is commonly used in heavy machinery, such as construction equipment and mining vehicles, where its double-row design handles combined radial and thrust loads efficiently. The chrome steel construction ensures durability in tough working conditions.

Where Is 395X-394D Bearing Used?
You’ll often find 395X-394D Bearing in automotive applications like truck wheel hubs, where its tapered roller design provides stability under heavy loads. The inch sizing makes it a good fit for North American vehicle standards.

Built for Heavy-Duty Use: 395X-394D Bearing
395X-394D Bearing excels in industrial gearboxes, offering reliable performance even under continuous operation. Its open design allows for easy lubrication, extending service life in high-demand environments.

Automotive vs Aerospace: Applications of 395X-394D Bearing
In automotive settings, 395X-394D Bearing supports axle systems, while in aerospace, it’s used in landing gear mechanisms. The bearing’s robust construction meets the demands of both industries.

Practical Applications of 395X-394D Bearing
395X-394D Bearing is ideal for agricultural machinery, such as tractors and harvesters, where its combined load capacity handles uneven terrain stresses. The standard radial clearance ensures smooth operation in varying temperatures.
