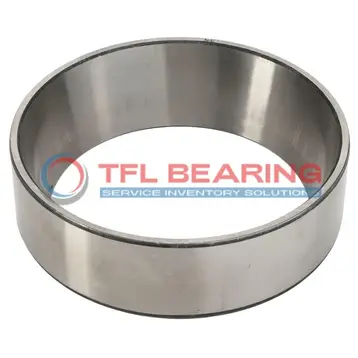

36626 Single Cups (Imperial)

36626 Single Cups (Imperial)

The 36626 is a single cup bearing with an 8-inch outer diameter and a width of 0.9063 inches, made from sturdy chrome steel. It fits well with tapered rollers and handles temperatures from -30°C to 110°C.

Its standard design ensures compatibility with Timken bearings, making it a practical choice for replacements. The cup’s precise dimensions and tolerances provide a reliable fit for various applications.

This model is part of the 36600 series and meets ABEC-1 standards for consistent performance. Ideal for use in industrial machinery or automotive systems where tapered roller bearings are needed.

Compliant with RoHS and REACH regulations, it’s a safe and durable option for long-term use. Its robust construction ensures it can withstand demanding conditions.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 36626
  • Brand TFL
  • Interchangeable Timken
  • Size 7.32" x 8" x 0.9063"
  • Outer Dia 8"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 0.9063"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.06"
  • Cup Frontface Backing Diameter 7.50"
  • Cup Backface Backing Diameter 7.32"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number 36686-36626 , 36690-36626 , 36690P-36626 , 36691-36626
  • Cups Type Standard
  • Series 36600
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Engineered for Precision: 36626 Single Cups

36626 Single Cups are crafted from high-quality chrome steel, ensuring durability and resistance to wear.
The tapered roller design provides reliable performance under various load conditions, making it versatile for different applications.

With an outer diameter of 8″ and a cup width of 0.9063″, 36626 Single Cups offer precise dimensions for easy installation.
The ABEC-1 rating ensures consistent performance, suitable for standard industrial requirements.

36626 Single Cups operate efficiently within a temperature range of -30° to 110°C, adapting to diverse working environments.
Their compliance with RoHS and REACH standards highlights their commitment to environmental and safety regulations.

Application

Industrial Uses of 36626 Bearing
36626 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered design handles radial and axial loads efficiently. The chrome steel construction ensures durability in tough working conditions.

Where Is 36626 Bearing Used?
You’ll often find 36626 Bearing in automotive applications like truck wheel hubs, where its precise inch sizing fits standard imperial measurements. Its robust design supports high loads, making it reliable for long-haul vehicles.

Built for Heavy-Duty Use: 36626 Bearing
36626 Bearing excels in industrial conveyor systems, thanks to its tapered roller design that manages both thrust and radial forces. The standard cup type simplifies installation and maintenance in busy production lines.

Automotive vs Aerospace: Applications of 36626 Bearing
In automotive settings, 36626 Bearing is ideal for axle systems, while its precision also suits aerospace ground support equipment. The ABEC-1 rating balances performance and cost for diverse needs.

Perfect Fit for Automation: 36626 Bearing
36626 Bearing works well in automated assembly lines, where its consistent performance reduces downtime. The chrome steel rings and tapered rollers ensure smooth operation under repetitive loads.
