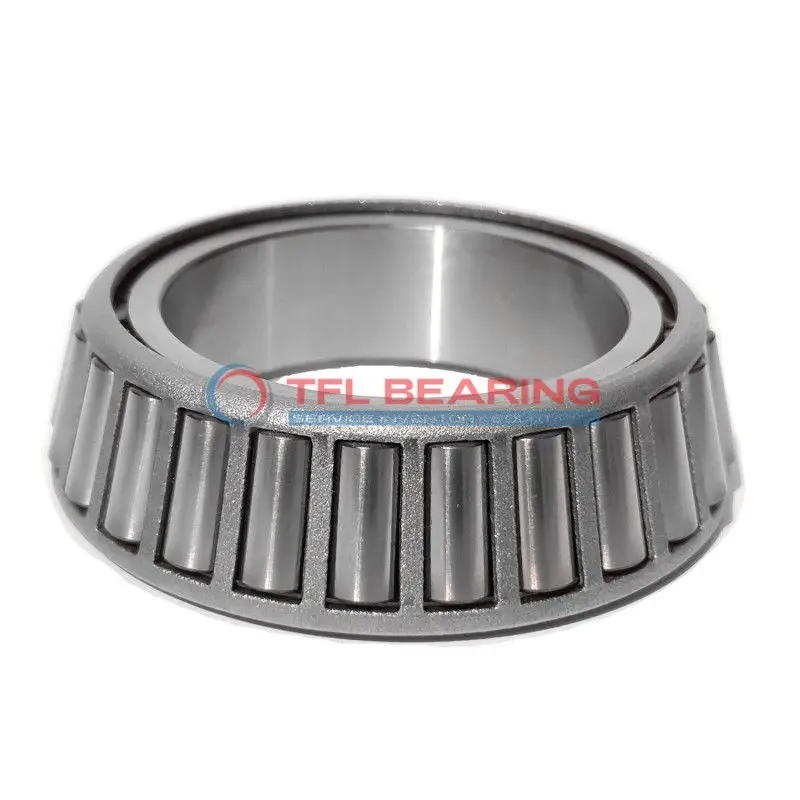

3483 Single Cones (Imperial)

3483 Single Cones (Imperial)

The 3483 single cones are tapered roller bearings designed for combined loads, with a 1.3125-inch bore and made from durable chrome steel. They handle dynamic radial loads up to 23,500 lbf and are built to last in tough conditions.

Their open design allows easy maintenance, while the steel cage ensures smooth operation. The bearings are compatible with Timken models, making them a practical choice for replacements.

These cones work well in temperatures from -30°C to 110°C and come in standard radial clearance. Ideal for heavy-duty applications like industrial machinery or vehicle axles.

Compliant with RoHS and REACH standards, they offer reliable performance in demanding environments. The ABEC-1 rating ensures consistent quality for general industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 3483
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 3483-3420 , 3483-3422 , 3483-3426 , 3483-3431 , 3483-3420-B
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 3400
  • Bore Dia 1.3125"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 1.1721"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 1.67"
  • Cone Backface Backing Diameter 1.69"
  • Cage Cone Frontface Clearance 0.05"
  • Cage Cone Backface Clearance 0.04"
  • Effective Center Location -0.34"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 23500 lbf
  • Static Radial Load 26800 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6100 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 41000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3820 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 10600 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 3483 Bearing

3483 Bearing is crafted with chrome steel rings, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 23,500 lbf, ensuring reliable performance in various applications.

The steel cage maintains roller alignment, reducing wear and extending operational life.
With a temperature range of -30° to 110°C, it performs well in diverse environments.

3483 Bearing’s tapered roller design provides smooth operation under heavy loads.
Its standard radial clearance options allow for flexibility in different setups.

Application

Industrial Uses of 3483 Bearing
3483 Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is 3483 Bearing Used?
In automotive applications, 3483 Bearing supports wheel hubs and differential systems, providing reliable performance under high stress. Its inch sizing makes it a fit for many American and British vehicle models.

Built for Heavy-Duty Use: 3483 Bearing
For industrial conveyors and gearboxes, 3483 Bearing’s open design allows for easy lubrication and maintenance. The steel cage adds stability, making it suitable for continuous operation.

Automotive vs Aerospace: Applications of 3483 Bearing
While 3483 Bearing excels in automotive systems like axles, it’s also found in aerospace landing gear components. Its ABEC-1 rating ensures consistent precision across different industries.

Practical Applications of 3483 Bearing
In agricultural machinery, 3483 Bearing handles the heavy loads of tractors and harvesters. The standard radial clearance option makes it versatile for various farming equipment needs.
