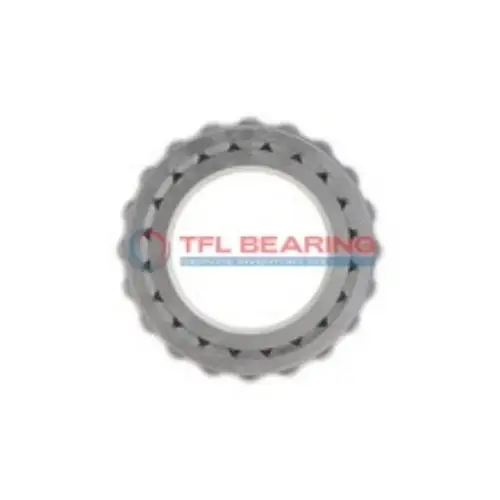

3379 Single Cones (Imperial)

3379 Single Cones (Imperial)

The 3379 single cones are tapered roller bearings with a 1.375″ bore, designed for combined loads and made from durable chrome steel. They handle dynamic radial loads up to 25800 lbf and are built to last in tough conditions.

Their open design and steel cage ensure smooth operation, while the standard radial clearance allows for easy installation. The bearings work well in temperatures from -30°C to 110°C.

These cones are part of the 3300 series and interchangeable with Timken models, making them a reliable choice for replacements. Ideal for heavy-duty applications like truck axles or industrial gearboxes.

Compliant with RoHS and REACH standards, they offer a balance of strength and performance. The ABEC-1 rating ensures consistent quality for general industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 3379
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 3379-3320 , 3379-3321 , 3379-3324 , 3379-3325 , 3379-3328 , 3379-3329 , 3379-3331 , 3379-3339 , 3379-3320-B , 3379-3329-B
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 3300
  • Bore Dia 1.375"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 1.1965"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.14"
  • Cone Frontface Backing Diameter 1.63"
  • Cone Backface Backing Diameter 1.89"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.06"
  • Effective Center Location -0.43"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 25800 lbf
  • Static Radial Load 29100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6700 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 45000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3130 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 11700 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 3379 Single Cones (Imperial)

3379 Single Cones (Imperial) are crafted from chrome steel, offering strong resistance to combined loads.
Their dynamic radial load capacity reaches 25,800 lbf, ensuring reliable performance in heavy-duty applications.

The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, they perform well in various environments.

Designed for easy installation, 3379 Single Cones (Imperial) save time and reduce maintenance costs.
Their standard radial clearance options provide flexibility for different operational needs.

Application

Industrial Uses of 3379 Single Cones
3379 Single Cones are commonly used in heavy machinery, such as construction equipment and mining vehicles, where their tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is 3379 Single Cones Used?
You’ll often find 3379 Single Cones in automotive applications like truck wheel hubs, where their robust design supports both radial and thrust loads. The inch sizing makes them a practical choice for North American machinery.

Built for Heavy-Duty Use: 3379 Single Cones
3379 Single Cones excel in agricultural machinery, such as tractors and harvesters, thanks to their ability to withstand high dynamic loads. The steel cage adds extra strength, making them reliable for long-term use.

Automotive vs Aerospace: Applications of 3379 Single Cones
In automotive settings, 3379 Single Cones are ideal for gearboxes and differentials, while in aerospace, they’re used in landing gear systems. Their precision and load capacity make them versatile across industries.

Key Fields for 3379 Single Cones
3379 Single Cones are a go-to choice for industrial fans and pumps, where their tapered rollers manage both radial and axial forces smoothly. The standard radial clearance options ensure easy integration into various systems.
