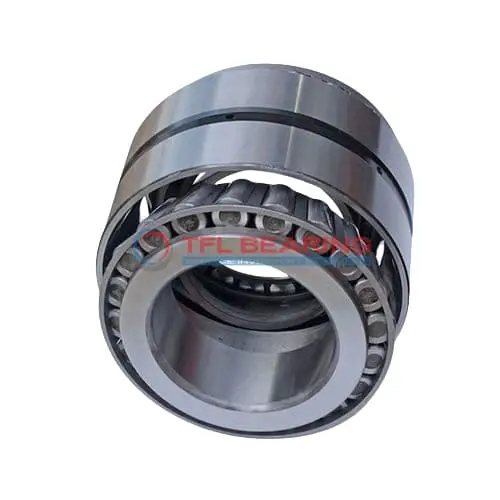

33262A-33462D TDO (Two-Row Double-Outer Race) (Imperial)

33262A-33462D TDO (Two-Row Double-Outer Race) (Imperial)

The 33262A-33462D is a double-row tapered roller bearing with a 2.625″ bore and 4.625″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 54200 lbf and is designed for long-lasting performance.

Its open design allows for easy lubrication, while the steel cage ensures smooth operation even under heavy loads. The bearing works well in temperatures from -30°C to 110°C.

This model is part of the 33000 series, featuring standard cups for straightforward installation. Ideal for industrial machinery or heavy equipment where combined radial and thrust loads are common.

Weighing 6.47 lb, it’s a robust choice for demanding applications. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 33262A-33462D
  • Brand TFL
  • Size 2.625" x 4.625" x 1.1875"
  • Bore Dia 2.625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.625"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 2.125"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 1.1875"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 2.6249"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.03"
  • Cone Backface Backing Diameter 3.03"
  • Cup Frontface Backing Diameter 4.45"
  • Cage Cone Backface Clearance 0.07"
  • Dynamic Radial Load 54200 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 33262A
  • Cup Part Number 33462D
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 33000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 8060 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 6020 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 14000 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 6.47 lb

Features

How Is 33262A-33462D Bearing Engineered for Reliability?

33262A-33462D Bearing features a double-row tapered roller design, providing robust support for combined radial and thrust loads.
Its chrome steel construction ensures durability, even under heavy loads up to 54,200 lbf.

The precision tolerances of 33262A-33462D Bearing enhance its performance, with a dynamic radial rating of 14,000 lbf for two-row operation.
This makes it suitable for demanding industrial applications.

33262A-33462D Bearing operates efficiently within a temperature range of -30° to 110°C.
Its standard radial clearance options allow for flexibility in various operating conditions.

With a steel cage and chrome steel rollers, 33262A-33462D Bearing offers long service life.
Regular lubrication ensures smooth operation and reduces wear over time.

Application

Industrial Uses of 33262A-33462D Bearing
33262A-33462D Bearing is commonly used in heavy machinery like construction equipment and mining rigs, where its double-row design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability even in demanding environments.

What Makes 33262A-33462D Bearing a Preferred Choice?
In automotive applications, 33262A-33462D Bearing supports wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it compatible with many North American vehicle models.

Built for Heavy-Duty Use: 33262A-33462D Bearing
For industrial conveyor systems, 33262A-33462D Bearing offers smooth operation and long service life. The open design allows for easy lubrication, reducing maintenance downtime.

Automotive vs Aerospace: Applications of 33262A-33462D Bearing
While 33262A-33462D Bearing excels in truck axles and heavy vehicles, it’s also suitable for aerospace ground support equipment. Its robust construction meets the needs of both sectors without compromising performance.

Key Fields for 33262A-33462D Bearing
In agricultural machinery, 33262A-33462D Bearing withstands harsh conditions like dust and moisture. The tapered roller design ensures efficient load distribution, extending equipment lifespan.
