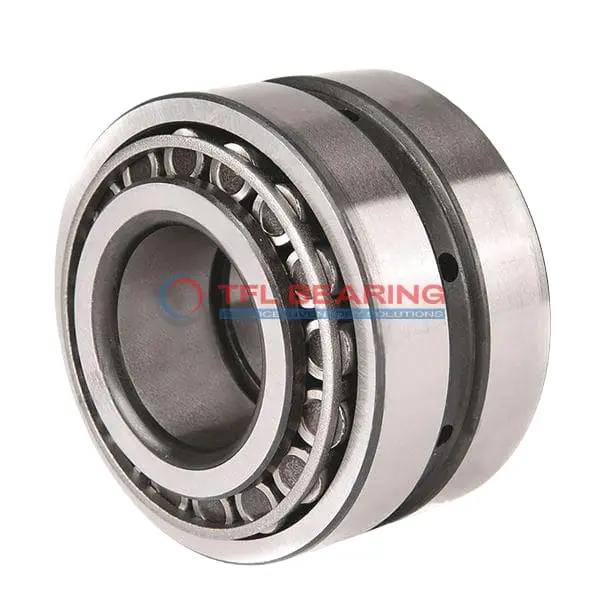

33262-33462D TDO (Two-Row Double-Outer Race) (Imperial)

33262-33462D TDO (Two-Row Double-Outer Race) (Imperial)

The 33262-33462D is a double-row tapered roller bearing with a 2.625″ bore and 4.625″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 54200 lbf and is designed for long-lasting performance in demanding conditions.

Its open design allows for easy lubrication, while the steel cage ensures smooth operation. The bearing works well in temperatures ranging from -30°C to 110°C, making it versatile for various environments.

This model is part of the 33000 series and comes with standard cups for easy installation. Ideal for heavy-duty applications like industrial gearboxes or construction equipment where combined loads are common.

Weighing 6.43 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements or new installations.

The bearing offers standard radial clearance, with options for C3, C4, or C5 available. Its ABEC-1 rating ensures consistent performance for general industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 33262-33462D
  • Brand TFL
  • Size 2.625" x 4.625" x 1.1875"
  • Bore Dia 2.625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.625"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 2.125"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 1.1875"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 2.6249"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.03"
  • Cone Backface Backing Diameter 3.19"
  • Cup Frontface Backing Diameter 4.45"
  • Cage Cone Backface Clearance 0.07"
  • Dynamic Radial Load 54200 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 33262
  • Cup Part Number 33462D
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 33000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 8060 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 6020 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 14000 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 6.43 lb

Features

Performance Features of 33262-33462D Bearing

33262-33462D Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 54,200 lbf, ensuring reliable performance in heavy-duty applications.

The double-row tapered roller design enhances stability and load distribution.
This construction allows 33262-33462D Bearing to handle both radial and thrust loads efficiently.

With a temperature range of -30° to 110°C, it performs well in various environments.
The open design simplifies lubrication, maintaining smooth operation over time.

33262-33462D Bearing’s standard radial clearance ensures compatibility with diverse applications.
Its durable steel cage keeps rollers aligned, reducing wear and extending service life.

Application

Industrial Uses of 33262-33462D Bearing
The 33262-33462D Bearing is commonly used in heavy machinery, such as construction equipment and mining vehicles, where its double-row design handles combined radial and thrust loads efficiently.
Its chrome steel construction ensures durability in harsh environments, making it a reliable choice for industrial applications.

What Makes 33262-33462D Bearing a Preferred Choice?
In automotive applications, 33262-33462D Bearing is often found in wheel hubs and differential systems, providing smooth performance under heavy loads.
The tapered roller design allows for precise alignment, reducing wear and extending the lifespan of the component.

Built for Heavy-Duty Use: 33262-33462D Bearing
This bearing excels in agricultural machinery, supporting equipment like tractors and harvesters that require robust load-bearing capabilities.
The open seal design simplifies maintenance, ensuring long-term reliability in dusty or high-moisture conditions.

Automotive vs Aerospace: Applications of 33262-33462D Bearing
In automotive settings, 33262-33462D Bearing is ideal for drivetrain components, offering stability under varying speeds and loads.
While not typically used in aerospace, its precision and strength make it suitable for ground support equipment and other heavy-duty applications.
