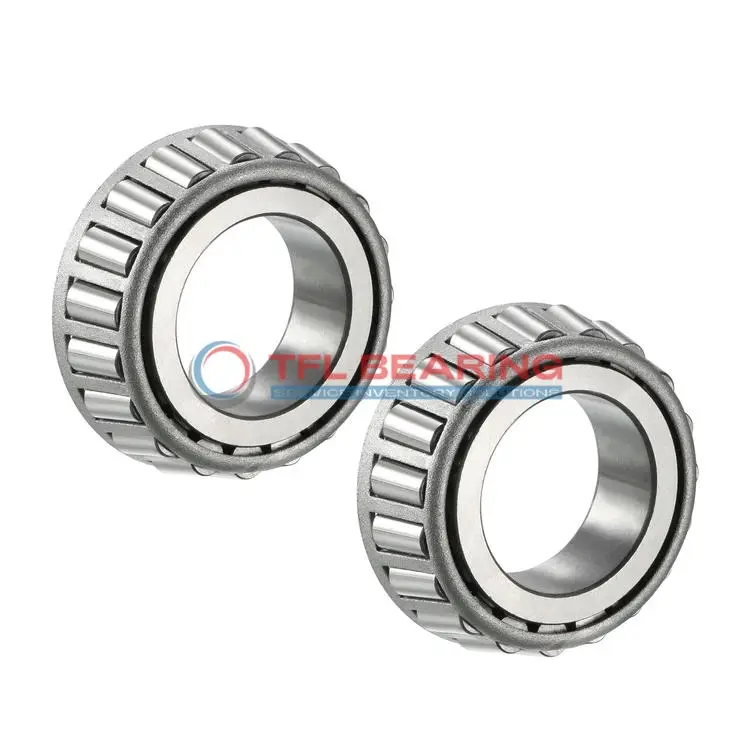

29582 Single Cones (Imperial)

The 29582 single cone is an imperial-sized tapered roller bearing with a 2.36″ bore, designed for combined loads. Made from durable chrome steel, it handles radial loads up to 29,400 lbf and fits Timken interchangeable models.

Its single-row construction and open design allow for easy maintenance, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures from -30°C to 110°C.

With standard radial clearance and ABEC-1 precision, it’s a practical choice for heavy-duty applications. Ideal for use in industrial machinery or vehicle axles where robust load handling is needed.

Compliant with RoHS and REACH standards, it offers a balance of strength and durability for demanding environments.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 29582
Brand TFL
Interchangeable Brand Timken
System of Measurement Inch
Type Cones
Bearing Part Number 29582-29520 , 29582-29521 , 29582-29522
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Series 29500
Bore Dia 2.3622"
Bore Dia Tolerance +0.005" to 0
Cone Width 1"
Cone Width Tolerance +0.003" to -0.01
Cone Backface ToClear Radius 0.03"
Cone Frontface Backing Diameter 2.68"
Cone Backface Backing Diameter 2.72"
Cage Cone Frontface Clearance 0.08"
Cage Cone Backface Clearance 0.07"
Effective Center Location -0.03"
Ring Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 29400 lbf
Static Radial Load 36300 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 7610 lbf
Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 51100 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5970 lbf
Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 13200 lbf
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant

Features

Performance Features of 29582 Single Cones

29582 Single Cones are crafted from chrome steel, offering strong resistance to combined loads.
Their dynamic radial load capacity reaches 29,400 lbf, ensuring reliable performance in tough conditions.

The tapered roller design enhances stability, making them suitable for heavy-duty applications.
With a temperature range of -30° to 110°C, they perform well in various environments.

Steel cages maintain roller alignment, reducing wear and extending service life.
Standard radial clearance options provide flexibility for different operational needs.

Application

Industrial Uses of 29582 Bearing
29582 Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The inch sizing makes it a good fit for older machinery still using imperial measurements.

Where Is 29582 Bearing Used?
You’ll often find 29582 Bearing in agricultural machinery, supporting components like gearboxes and wheel hubs. Its chrome steel construction ensures durability even in dusty or high-load environments.

Built for Heavy-Duty Use: 29582 Bearing
29582 Bearing excels in industrial fans and conveyor systems, where its open design allows for easy lubrication and maintenance. The steel cage adds extra strength, making it reliable for continuous operation.

Automotive vs Aerospace: Applications of 29582 Bearing
In automotive applications, 29582 Bearing is used in truck axles and differentials, providing smooth performance under heavy loads. While not common in aerospace, its precision makes it suitable for certain ground support equipment.

Key Fields for 29582 Bearing
29582 Bearing is a popular choice in railway applications, particularly for axle boxes where combined loads are frequent. The standard radial clearance offers flexibility for various operational conditions.
