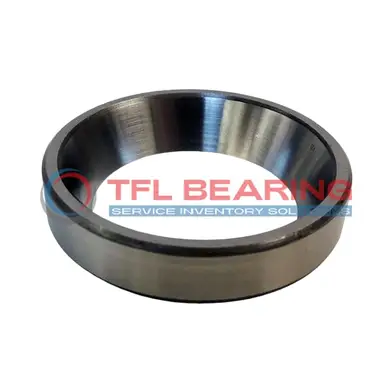

2925 Single Cups (Imperial)

2925 Single Cups (Imperial)

The 2925 is a single cup tapered roller bearing with an outer diameter of 3.4375 inches and a width of 0.875 inches, crafted from durable chrome steel. It fits well with Timken bearings, making it a versatile replacement option.

Designed for standard use, it operates smoothly in temperatures ranging from -30°C to 110°C. Its ABEC-1 rating ensures reliable performance for general applications.

The cup features precise dimensions, including a backface to clear radius of 0.09 inches, ensuring easy installation. It pairs with various bearing part numbers like 2973-2925 and 2975-2925.

Ideal for machinery requiring tapered roller bearings, it’s compliant with RoHS and REACH standards. Its robust design makes it suitable for industrial and automotive uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2925
  • Brand TFL
  • Interchangeable Timken
  • Size 2.95" x 3.4375" x 0.875"
  • Outer Dia 3.4375"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 0.875"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.09"
  • Cup Frontface Backing Diameter 3.23"
  • Cup Backface Backing Diameter 2.95"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number 2973-2925 , 2975-2925 , 2984-2925 , 2984A-2925
  • Cups Type Standard
  • Series 2900
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

How Is 2925 Bearing Engineered for Reliability?

2925 Bearing is crafted from chrome steel, offering robust durability for tapered roller applications.
Its precise outer diameter tolerance of +0.001″ to 0 ensures a snug fit and reliable performance.

The standard cup design simplifies installation, making it compatible with various bearing part numbers.
With a temperature range of -30° to 110°C, it performs well in diverse operating conditions.

The 2900 series construction enhances load distribution, reducing wear over time.
Its ABEC-1 rating ensures consistent quality for industrial and automotive uses.

Application

Key Fields for 2925 Bearing
The 2925 Bearing is commonly used in industrial machinery, especially in heavy-duty applications like conveyor systems and gearboxes. Its tapered roller design handles both radial and axial loads efficiently.

Where Is 2925 Bearing Used?
You’ll often find 2925 Bearing in automotive systems, such as wheel hubs and differentials, where its durability and precision are key. The inch sizing makes it a good fit for machinery following imperial standards.

Built for Heavy-Duty Use: 2925 Bearing
In construction equipment, 2925 Bearing supports components like cranes and excavators, thanks to its robust chrome steel construction. The standard cup design ensures easy installation and maintenance.

Automotive vs Industrial: Applications of 2925 Bearing
While 2925 Bearing excels in automotive settings like transmissions, it’s also reliable in industrial pumps and compressors. Its temperature range suits both high and low operating conditions.

Perfect Fit for Automation: 2925 Bearing
For automated systems, 2925 Bearing offers smooth operation in robotic arms and assembly lines. The ABEC-1 rating ensures consistent performance without unnecessary complexity.
