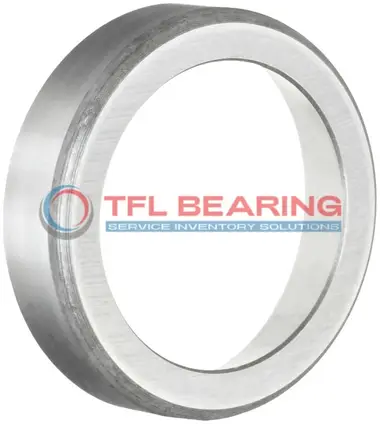

2735X Single Cups (Imperial)

2735X Single Cups (Imperial)

The 2735X is a single cup tapered roller bearing with an outer diameter of 2.875″ and a width of 0.75″, made from durable chrome steel. It fits well with various tapered roller cones, offering reliable performance in imperial-sized applications.

Its standard cup design ensures easy installation and compatibility with Timken bearings, making it a practical choice for replacements. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

With an ABEC-1 rating, it provides good precision for general industrial use. The cup’s robust construction handles moderate loads and speeds effectively.

Ideal for machinery and automotive applications where tapered roller bearings are needed. Compliant with RoHS and REACH standards, it’s safe for various environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2735X
  • Brand TFL
  • Interchangeable Timken
  • Size 2.60" x 2.875" x 0.75"
  • Outer Dia 2.875"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 0.75"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.03"
  • Cup Frontface Backing Diameter 2.74"
  • Cup Backface Backing Diameter 2.60"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number 2775-2735X , 2776-2735X , 2777-2735X , 2780-2735X , 2783-2735X , 2785-2735X , 2786-2735X , 2788-2735X , 2788A-2735X , 2789-2735X , 2789A-2735X , 2790-2735X , 2793-2735X , 2794-2735X , 2796-2735X
  • Cups Type Standard
  • Series 2700
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Built for Reliability: 2735X Bearing

2735X Bearing is crafted from chrome steel, offering durability and resistance to wear in demanding applications.
Its tapered roller design ensures efficient load distribution, enhancing performance under stress.

The cup width tolerance of +0.002″ to -0.01″ allows for precise fitting, reducing installation errors.
With a temperature range of -30° to 110°C, it performs reliably in various environmental conditions.

2735X Bearing is interchangeable with Timken models, providing flexibility for different setups.
Its standard cup type and ABEC-1 rating make it suitable for general industrial use.

Application

Industrial Uses of 2735X Bearing
2735X Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered design handles radial and thrust loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is 2735X Bearing Used?
You’ll often find 2735X Bearing in automotive applications like wheel hubs and differential systems, thanks to its reliable performance under varying loads. Its inch sizing makes it a good fit for many North American vehicle models.

Built for Heavy-Duty Use: 2735X Bearing
2735X Bearing excels in industrial conveyor systems, where its robust design supports continuous operation. The standard cup type simplifies installation and maintenance in busy environments.

Automotive vs Aerospace: Applications of 2735X Bearing
In automotive settings, 2735X Bearing is ideal for transmissions and axles, while its precision also suits aerospace landing gear components. The ABEC-1 rating balances performance and cost for diverse needs.

Perfect Fit for Automation: 2735X Bearing
2735X Bearing works well in automated assembly lines, providing smooth rotation for robotic arms and conveyor belts. Its compatibility with Timken models adds flexibility for maintenance and replacements.
