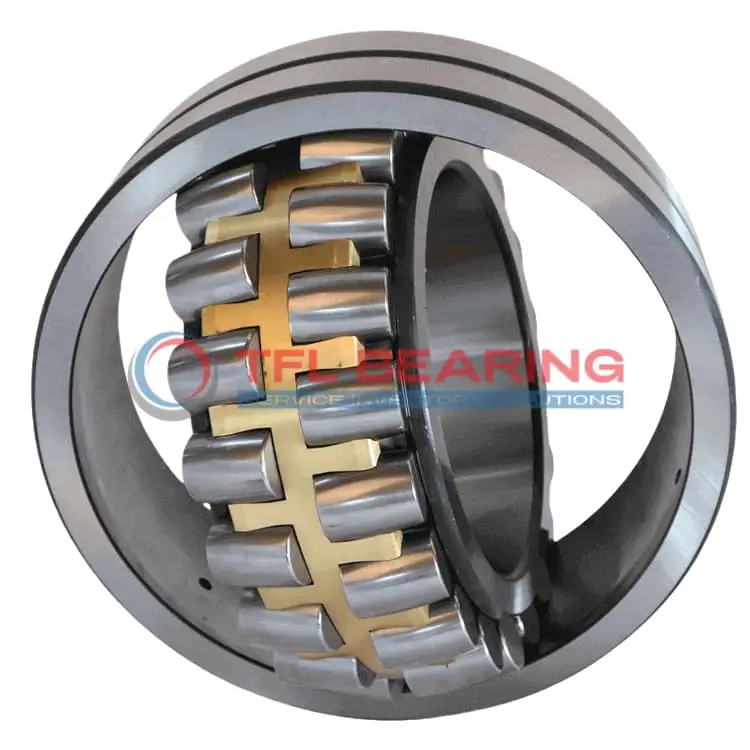

24196 ECA/W33 Double Row Spherical Roller Bearing

24196 ECA/W33 Double Row Spherical Roller Bearing

The 24196 ECA/W33 is a double-row spherical roller bearing with a large 480mm bore and 790mm outer diameter, built from tough chrome steel. It handles combined loads up to 2067793 lbf and runs smoothly at speeds up to 400 RPM.

Its brass cage and spherical rollers provide reliable performance, while the open design allows for easy lubrication. The bearing operates well in temperatures from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like mining equipment or large industrial machinery where high radial loads are common.

Weighing 595kg, it’s a robust unit designed for demanding environments. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 24196 ECA/W33
  • Brand TFL
  • Interchangeable SKF
  • Size 480 x 790 x 308 mm
  • Bore Dia 480 mm
  • Bore Dia Tolerance -0.045mm to 0
  • Outer Dia 790 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 308 mm
  • Width Tolerance -0.45mm to 0
  • Shoulder Dia Of Inner Ring 564 mm
  • Shoulder/Recess Dia Of Outer Ring 678 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.7.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 2067793 lbf
  • Static Radial Load 350702 lbf
  • Max Speed 400 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 595 kg
  • Price （US$） US$16,900.43

Features

Performance Features of 24196 ECA/W33 Bearing

24196 ECA/W33 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 2,067,793 lbf, ensuring reliable performance in heavy-duty applications.

The brass cage maintains roller alignment, reducing friction and extending operational life.
With a maximum speed of 400 rpm, it balances durability and efficiency in demanding conditions.

24196 ECA/W33 Bearing operates effectively in temperatures ranging from -30° to 200°C.
Its double-row spherical design accommodates misalignment, enhancing reliability in varied applications.

The lubrication groove and holes ensure consistent oil distribution, reducing maintenance needs.
This design makes 24196 ECA/W33 Bearing suitable for industrial machinery requiring long service intervals.

Application

Industrial Uses of 24196 ECA/W33 Bearing
The 24196 ECA/W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles misalignment and heavy radial loads. Its brass cage ensures smooth operation even under demanding conditions.

Where Is 24196 ECA/W33 Bearing Used?
You’ll often find 24196 ECA/W33 Bearing in mining equipment, where its high dynamic radial load capacity keeps operations running smoothly. The chrome steel construction also makes it suitable for high-temperature environments.

Built for Heavy-Duty Use: 24196 ECA/W33 Bearing
24196 ECA/W33 Bearing excels in paper mills and steel plants, thanks to its robust design and lubrication groove for extended service life. The metric dimensions make it easy to integrate into existing systems.

Automotive vs Aerospace: Applications of 24196 ECA/W33 Bearing
In automotive applications, 24196 ECA/W33 Bearing supports large drivetrains, while in aerospace, its precision and durability are valued for ground support equipment. The wide temperature range adds to its versatility.

Key Fields for 24196 ECA/W33 Bearing
24196 ECA/W33 Bearing is a go-to choice for wind turbines, where its spherical rollers accommodate shaft deflections. The open seal design allows for easy relubrication, reducing downtime.
