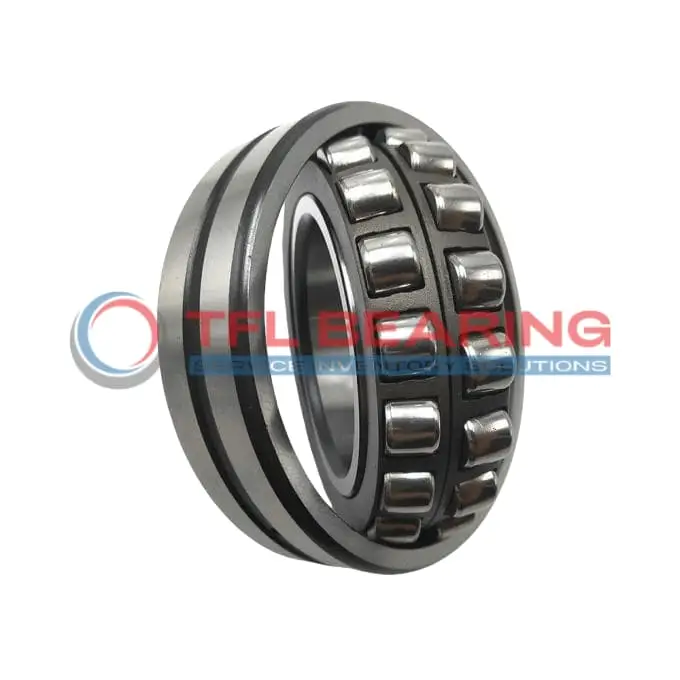

24136 CCK30/W513 Double Row Spherical Roller Bearing

24136 CCK30/W513 Double Row Spherical Roller Bearing

The 24136 CCK30/W513 is a double-row spherical roller bearing with a 180mm bore and 300mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 325748 lbf and runs smoothly at speeds up to 1600 RPM.

Its open design requires regular lubrication, while the steel cage ensures durability. The tapered bore (1:30) allows for secure mounting, and the spherical rollers accommodate misalignment.

This bearing suits heavy-duty applications like industrial gearboxes or mining equipment. It operates in temperatures from -30°C to 200°C and complies with RoHS and REACH standards.

Weighing 33kg, it’s a robust choice for demanding environments where reliability is key. The lubrication groove and holes make maintenance straightforward.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 24136 CCK30/W513
  • Brand TFL
  • Interchangeable SKF
  • Size 180 x 300 x 118 mm
  • Bore Dia 180 mm
  • Bore Dia Tolerance +0.025mm to 0
  • Outer Dia 300 mm
  • Outer Dia Tolerance -0.035mm to 0
  • Width 118 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 203 mm
  • Shoulder/Recess Dia Of Outer Ring 253 mm
  • Width Of Lubrication Groove 11.1 mm
  • Diameter Of Lubrication Hole 6 mm
  • Chamfer Dimension min.3 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:30
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 325748 lbf
  • Static Radial Load 485587 lbf
  • Max Speed 1600 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 33 kg

Features

Performance Features of 24136 CCK30/W513 Bearing

24136 CCK30/W513 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 325748 lbf, ensuring reliable performance in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
This feature enhances durability and extends the service life even under challenging conditions.

24136 CCK30/W513 Bearing operates efficiently within a temperature range of -30° to 200°C.
Its open design facilitates easy lubrication, maintaining smooth operation at speeds up to 1600 rpm.

The tapered bore design ensures a secure fit, minimising slippage during operation.
With a weight of 33 kg, it is robust yet manageable for industrial applications.

Application

Industrial Uses of 24136 CCK30/W513 Bearing
The 24136 CCK30/W513 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads efficiently. Its tapered bore ensures a secure fit, reducing slippage during high-stress operations.

Where Is 24136 CCK30/W513 Bearing Used?
You’ll often find 24136 CCK30/W513 Bearing in mining equipment, where its robust construction withstands harsh conditions. The chrome steel rollers and steel cage provide durability, making it ideal for long-term use.

Built for Heavy-Duty Use: 24136 CCK30/W513 Bearing
24136 CCK30/W513 Bearing excels in industrial fans and gearboxes, thanks to its high dynamic radial load capacity. The open design allows for easy lubrication, ensuring smooth performance even at high speeds.

Automotive vs Aerospace: Applications of 24136 CCK30/W513 Bearing
In automotive applications, 24136 CCK30/W513 Bearing supports large drivetrains, while in aerospace, it’s used in auxiliary systems. Its temperature range of -30° to 200°C makes it versatile for extreme environments.

Practical Applications of 24136 CCK30/W513 Bearing
24136 CCK30/W513 Bearing is a reliable choice for paper mills and steel plants, where its spherical rollers accommodate misalignment. The metric sizing ensures compatibility with a wide range of industrial equipment.
