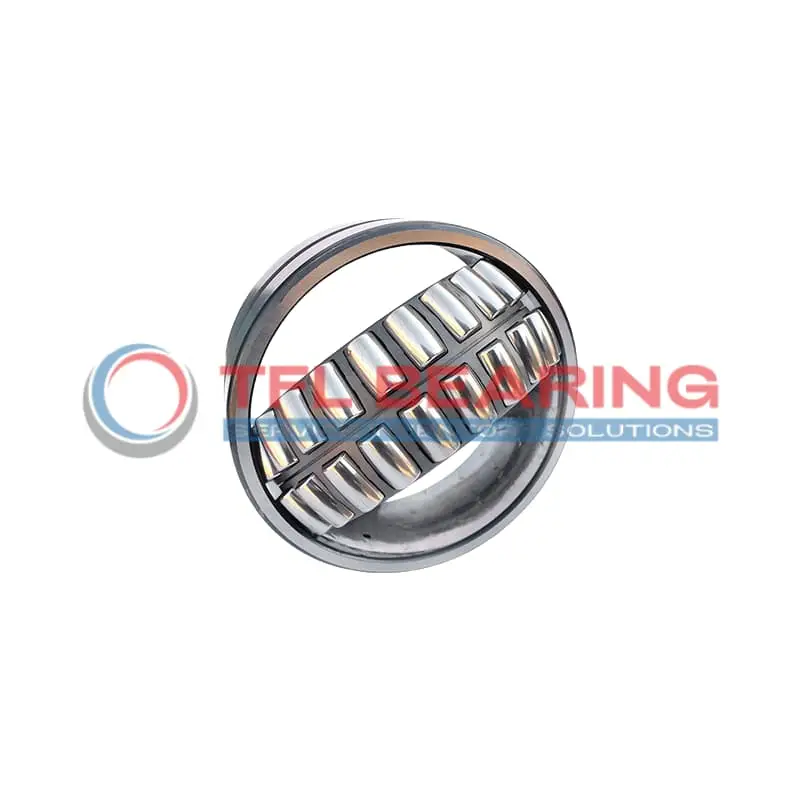

24126 CCK30/W33 Double Row Spherical Roller Bearing

24126 CCK30/W33 Double Row Spherical Roller Bearing

The 24126 CCK30/W33 is a double-row spherical roller bearing with a 130mm bore and 210mm outer diameter, crafted from robust chrome steel. It handles combined loads up to 157141 lbf and operates smoothly at speeds up to 2400 RPM.

Its spherical roller design allows for slight misalignment, while the steel cage ensures durability under heavy loads. The open seal type and lubrication groove make maintenance straightforward.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Suitable for industrial machinery like gearboxes or conveyors where high radial loads and misalignment are common.

Weighing 10.5kg, it’s built for heavy-duty applications. Compliant with RoHS and REACH standards, it performs well in temperatures from -30°C to 200°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 24126 CCK30/W33
  • Brand TFL
  • Interchangeable SKF
  • Size 130 x 210 x 80 mm
  • Bore Dia 130 mm
  • Bore Dia Tolerance +0.025mm to 0
  • Outer Dia 210 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 80 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 146 mm
  • Shoulder/Recess Dia Of Outer Ring 180 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.2 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:30
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 157141 lbf
  • Static Radial Load 224809 lbf
  • Max Speed 2400 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 10.5 kg
  • Price （US$） US$320.24

Features

Performance Features of 24126 CCK30/W33 Bearing

24126 CCK30/W33 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 157141 lbf, making it suitable for heavy-duty applications.

The double-row spherical roller design ensures smooth operation even under misalignment conditions.
With a maximum speed of 2400 rpm, it balances performance and durability in demanding environments.

24126 CCK30/W33 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
The steel cage maintains roller alignment, reducing wear and extending the bearing’s service life.

Application

Industrial Uses of 24126 CCK30/W33 Bearing
The 24126 CCK30/W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads effectively. Its spherical roller construction also compensates for misalignment, ensuring smooth operation in demanding conditions.

Where Is 24126 CCK30/W33 Bearing Used?
You’ll often find 24126 CCK30/W33 Bearing in mining equipment, where its high dynamic radial load capacity supports heavy-duty applications. The tapered bore design ensures a secure fit, reducing slippage under intense vibrations.

Built for Heavy-Duty Use: 24126 CCK30/W33 Bearing
24126 CCK30/W33 Bearing excels in industrial fans and gearboxes, thanks to its chrome steel rollers and steel cage. The lubrication groove and holes make maintenance straightforward, even in high-temperature environments.

Automotive vs Aerospace: Applications of 24126 CCK30/W33 Bearing
In automotive systems, 24126 CCK30/W33 Bearing supports large drivetrains, while in aerospace, it’s suited for auxiliary equipment due to its high-speed tolerance. The metric sizing ensures compatibility across various industries.

Essential Roles of 24126 CCK30/W33 Bearing
24126 CCK30/W33 Bearing is vital in paper mills and steel plants, where its static radial load capacity ensures reliability. The wide temperature range allows it to perform consistently in both hot and cold settings.
