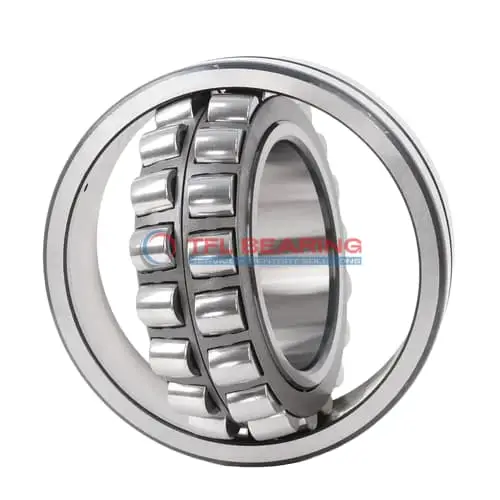

24126/C3W33VA9B1 Double Row Spherical Roller Bearing

24126/C3W33VA9B1 Double Row Spherical Roller Bearing

The 24126/C3W33VA9B1 is a double-row spherical roller bearing with a 130mm bore and 210mm outer diameter, built from sturdy chrome steel. It handles combined loads and can withstand static radial loads up to 224809 lbf, making it suitable for heavy-duty applications.

With a width of 80mm, this bearing features a lubrication groove and holes for easy maintenance. Its open design allows for straightforward greasing, while the steel cage ensures durability.

Designed for slow-speed operations (up to 20 RPM), it performs well in temperatures ranging from -30°C to 200°C. The C3 radial clearance provides flexibility in various conditions.

Ideal for industrial machinery like conveyors or crushers where heavy loads and misalignment are common. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements, interchangeable with SKF bearings. Weighing 10.5kg, it’s robust yet manageable for its size.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 24126/C3W33VA9B1
  • Brand TFL
  • Interchangeable SKF
  • Size 130 x 210 x 80 mm
  • Bore Dia 130 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 210 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 80 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 146 mm
  • Shoulder/Recess Dia Of Outer Ring 180 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.2 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Static Radial Load 224809 lbf
  • Max Speed 20 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 10.5 kg

Features

Performance Features of 24126/C3W33VA9B1 Bearing

24126/C3W33VA9B1 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its static radial load capacity reaches 224809 lbf, ensuring reliability in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
This feature enhances its performance in demanding industrial environments.

24126/C3W33VA9B1 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its steel cage maintains roller alignment, contributing to a longer service life.

With a maximum speed of 20 rpm, it is suited for slow-moving, high-load applications.
The C3 radial clearance provides optimal performance under varying thermal conditions.

Application

Industrial Uses of 24126/C3W33VA9B1 Bearing
This bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently.
The spherical roller construction allows for slight misalignment, making it suitable for rugged industrial environments.

What Makes 24126/C3W33VA9B1 Bearing a Preferred Choice?
In mining equipment, 24126/C3W33VA9B1 Bearing excels due to its high static radial load capacity and durability.
The chrome steel material ensures long service life even in harsh conditions with extreme temperatures.

Built for Heavy-Duty Use: 24126/C3W33VA9B1 Bearing
You’ll often find this bearing in paper mills and construction machinery, where reliability is key.
Its C3 radial clearance provides optimal performance under heavy loads and varying temperatures.

Automotive vs Aerospace: Applications of 24126/C3W33VA9B1 Bearing
While not typically used in aerospace, 24126/C3W33VA9B1 Bearing is ideal for heavy vehicles like trucks and buses.
Its robust construction supports high loads in drivetrain components, ensuring smooth operation.

Perfect Fit for Automation: 24126/C3W33VA9B1 Bearing
In automated production lines, this bearing handles repetitive motions with precision.
The steel cage and lubrication grooves reduce friction, extending maintenance intervals.
