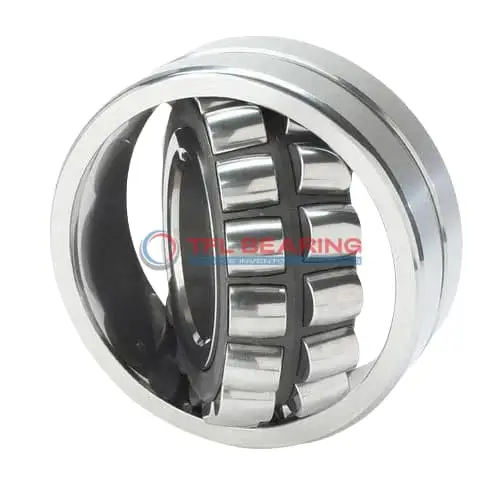

24124 CY W20 Double Row Spherical Roller Bearing

24124 CY W20 Double Row Spherical Roller Bearing

The 24124 CY W20 is a double-row spherical roller bearing with a 120mm bore and 200mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 152645 lbf and operates smoothly at speeds up to 2600 RPM.

Its brass cage enhances durability, while the open design allows for easy lubrication. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are common.

Weighing 10kg, it’s built to handle demanding conditions while complying with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 24124 CY W20
  • Brand TFL
  • Interchangeable SKF
  • Size 120 x 200 x 80 mm
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 80 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 135 mm
  • Shoulder/Recess Dia Of Outer Ring 168 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.2 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 152645 lbf
  • Static Radial Load 213568 lbf
  • Max Speed 2600 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 10 kg
  • Price （US$） US$204.48

Features

Performance Features of 24124 CY W20 Bearing

24124 CY W20 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 152645 lbf, ensuring reliable performance in heavy-duty applications.

The brass cage maintains roller alignment, reducing friction and extending operational life.
With a maximum speed of 2600 rpm, it delivers both durability and efficiency.

24124 CY W20 Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
Its double-row spherical design accommodates misalignment, enhancing reliability.

The lubrication groove and holes ensure consistent grease distribution, reducing maintenance needs.
This design makes 24124 CY W20 Bearing a practical choice for industrial applications.

Application

Industrial Uses of 24124 CY W20 Bearing
The 24124 CY W20 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles misalignment and heavy radial loads. Its brass cage ensures smooth operation even under high stress.

In the automotive sector, 24124 CY W20 Bearing supports large vehicle components such as axles and transmissions, offering durability under combined loads. The chrome steel construction provides long-lasting performance in demanding conditions.

For industrial fans and blowers, 24124 CY W20 Bearing’s high-speed capability and temperature resistance make it a reliable choice. The lubrication groove design simplifies maintenance, extending service life in continuous operation.

Where Is 24124 CY W20 Bearing Used?
You’ll often find 24124 CY W20 Bearing in mining equipment, where its robust design withstands harsh environments. The spherical rollers accommodate shaft deflections, reducing wear over time.

In paper mills, 24124 CY W20 Bearing handles heavy loads and high speeds in rollers and dryers. Its open seal type allows for easy relubrication, keeping downtime to a minimum.

Built for Heavy-Duty Use: 24124 CY W20 Bearing
24124 CY W20 Bearing excels in construction machinery like cranes and excavators, thanks to its high static radial load capacity. The brass cage adds stability, even under uneven loads.

In wind turbines, 24124 CY W20 Bearing’s ability to handle combined loads and misalignment makes it a go-to choice. The wide temperature range ensures performance in varying weather conditions.

Automotive vs Aerospace: Applications of 24124 CY W20 Bearing
In automotive applications, 24124 CY W20 Bearing is ideal for heavy trucks and buses, where its durability and load capacity shine. The cylindrical bore ensures a secure fit on shafts.

For aerospace ground equipment, 24124 CY W20 Bearing offers reliability in load-handling systems. Its metric sizing and compliance with industry standards make it a versatile option.
