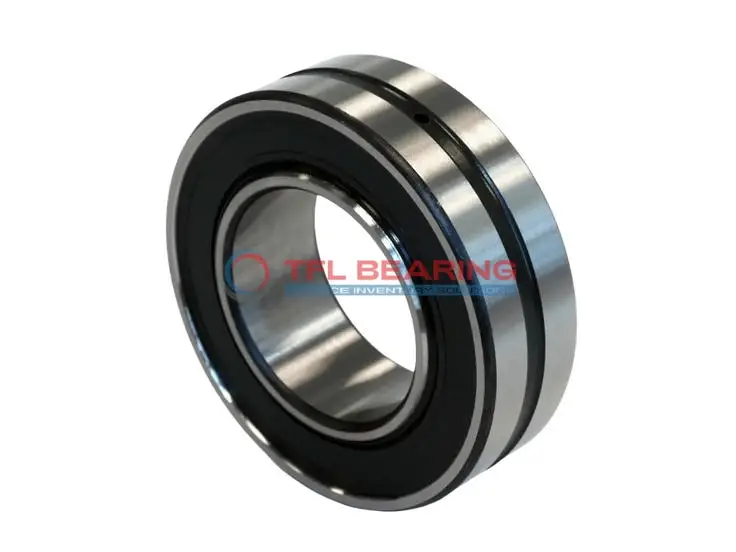

241/800-2CS5K30/C3HGEA8 Double Row Spherical Roller Bearing

241/800-2CS5K30/C3HGEA8 Double Row Spherical Roller Bearing

The 241/800-2CS5K30/C3HGEA8 is a double-row spherical roller bearing with a large 800mm bore and 1280mm outer diameter, built from tough chrome steel. It handles combined loads up to 4863966 lbf and operates smoothly at speeds up to 30 RPM.

Its double-seal design keeps contaminants out, while the tapered bore ensures a secure fit. The bearing requires regular lubrication and works in temperatures from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like mining equipment or large industrial machinery where high radial loads are common.

Weighing 2325kg, it’s built for durability in demanding environments. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 241/800-2CS5K30/C3HGEA8
  • Brand TFL
  • Interchangeable SKF
  • Size 800 x 1280 x 475 mm
  • Bore Dia 800 mm
  • Bore Dia Tolerance +0.75mm to 0
  • Outer Dia 1280 mm
  • Outer Dia Tolerance -0.16mm to 0
  • Width 475 mm
  • Width Tolerance -0.75mm to 0
  • Shoulder Dia Of Inner Ring 896 mm
  • Shoulder/Recess Dia Of Outer Ring 1141 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.9.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:30
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Double Seal
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 4863966 lbf
  • Static Radial Load 9104762 lbf
  • Max Speed 30 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 2325 kg

Features

How Does 241/800-2CS5K30/C3HGEA8 Bearing Handle Heavy Loads?

241/800-2CS5K30/C3HGEA8 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 4,863,966 lbf, ensuring dependable performance in heavy-duty applications.
The double-sealed design protects against contaminants, enhancing durability in harsh environments.
With a maximum speed of 30 rpm, it is ideal for slow, high-load operations.

What Makes 241/800-2CS5K30/C3HGEA8 Bearing Suitable for High-Temperature Applications?

241/800-2CS5K30/C3HGEA8 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
The chrome steel construction ensures stability and strength even under extreme thermal conditions.
Its double-sealed design prevents lubricant leakage, maintaining performance in high-heat environments.
This makes it a reliable choice for industrial applications with demanding temperature requirements.

Engineered for Precision: 241/800-2CS5K30/C3HGEA8 Bearing

241/800-2CS5K30/C3HGEA8 Bearing features a tapered bore design for precise alignment and easy installation.
The spherical roller type accommodates misalignment, ensuring smooth operation under combined loads.
Its C3 radial clearance provides optimal performance in varying operational conditions.
The steel cage maintains roller positioning, reducing wear and extending service life.

Application

Industrial Uses of 241/800-2CS5K30/C3HGEA8 Bearing
The 241/800-2CS5K30/C3HGEA8 Bearing is commonly used in heavy machinery like crushers and large conveyor systems, where its double-row spherical design handles combined loads effectively. Its tapered bore ensures a secure fit, reducing slippage during operation.

Where Is 241/800-2CS5K30/C3HGEA8 Bearing Used?
In mining equipment, the 241/800-2CS5K30/C3HGEA8 Bearing supports massive radial and axial loads, thanks to its robust chrome steel construction. The double seals also protect against contaminants, extending service life in harsh environments.

Built for Heavy-Duty Use: 241/800-2CS5K30/C3HGEA8 Bearing
The 241/800-2CS5K30/C3HGEA8 Bearing excels in wind turbine applications, where its high static radial load capacity ensures stability under varying wind conditions. Its steel cage adds durability, making it a reliable choice for long-term use.

Automotive vs Aerospace: Applications of 241/800-2CS5K30/C3HGEA8 Bearing
While the 241/800-2CS5K30/C3HGEA8 Bearing is too large for most automotive uses, it’s ideal for aerospace ground support equipment like heavy-load transporters. The C3 radial clearance accommodates thermal expansion in demanding conditions.

Key Fields for 241/800-2CS5K30/C3HGEA8 Bearing
In steel mills, the 241/800-2CS5K30/C3HGEA8 Bearing handles extreme loads and high temperatures, with its 200°C rating ensuring consistent performance. The lubrication groove design simplifies maintenance, reducing downtime.
