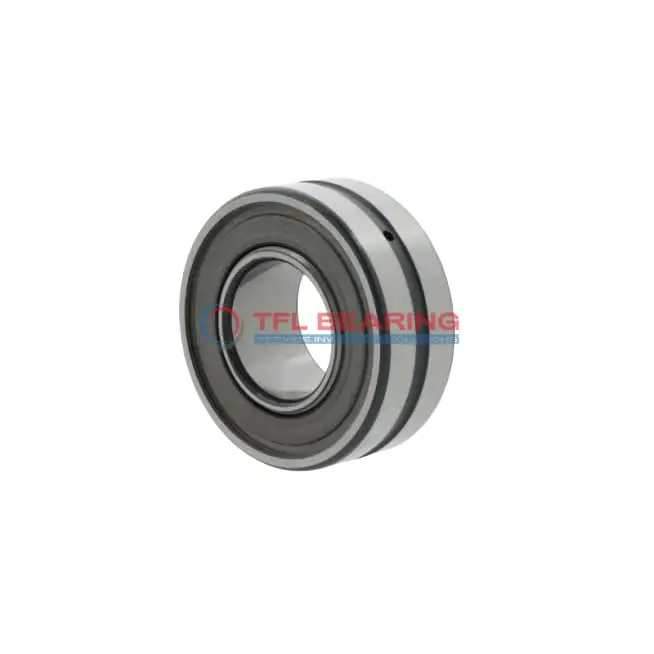

241/710-2CS5K30/C3HGEA8 Double Row Spherical Roller Bearing

241/710-2CS5K30/C3HGEA8 Double Row Spherical Roller Bearing

The 241/710-2CS5K30/C3HGEA8 is a double-row spherical roller bearing with a large 710mm bore and 1150mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 4039592 lbf and operates smoothly at speeds up to 30 RPM.

Its double-seal design keeps contaminants out, while the tapered bore ensures a secure fit. The bearing requires lubrication and works in temperatures from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like mining equipment or large industrial machinery where high radial loads are common.

Weighing 1750kg, it’s built for durability and long service life. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 241/710-2CS5K30/C3HGEA8
  • Brand TFL
  • Interchangeable SKF
  • Size 710 x 1150 x 438 mm
  • Bore Dia 710 mm
  • Bore Dia Tolerance +0.75mm to 0
  • Outer Dia 1150 mm
  • Outer Dia Tolerance -0.125mm to 0
  • Width 438 mm
  • Width Tolerance -0.75mm to 0
  • Shoulder Dia Of Inner Ring 793 mm
  • Shoulder/Recess Dia Of Outer Ring 1023 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.9.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:30
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Double Seal
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 4039592 lbf
  • Static Radial Load 7306291 lbf
  • Max Speed 30 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 1750 kg

Features

How Does 241/710-2CS5K30/C3HGEA8 Bearing Handle Heavy Loads?

241/710-2CS5K30/C3HGEA8 Bearing is built with chrome steel rings and rollers, offering strong resistance to heavy radial and thrust loads.
Its dynamic radial load capacity reaches 4,039,592 lbf, ensuring reliable performance in demanding industrial applications.
The double-seal design protects against contaminants, extending the bearing’s service life in harsh environments.
With a maximum speed of 30 rpm, it is ideal for heavy machinery requiring robust and durable solutions.

Why Choose 241/710-2CS5K30/C3HGEA8 Bearing for Precision Tasks?

241/710-2CS5K30/C3HGEA8 Bearing features a tapered bore design, ensuring precise alignment and smooth operation.
The spherical roller design accommodates misalignment, reducing stress and wear during operation.
Its C3 radial clearance provides optimal performance under varying thermal and load conditions.
The steel cage maintains roller alignment, enhancing stability and longevity in precision applications.

Engineered for Reliability: 241/710-2CS5K30/C3HGEA8 Bearing

241/710-2CS5K30/C3HGEA8 Bearing is designed for high-load applications, with a static radial load capacity of 7,306,291 lbf.
The double-seal construction prevents contamination, ensuring consistent performance in dusty or humid conditions.
Its chrome steel rollers and rings resist wear, making it suitable for long-term use.
The lubrication groove and holes facilitate easy maintenance, reducing downtime.

Steel vs Ceramic Bearings: Strengths of 241/710-2CS5K30/C3HGEA8 Bearing

241/710-2CS5K30/C3HGEA8 Bearing uses chrome steel for both rings and rollers, providing excellent strength and durability.
The steel construction ensures high load capacity and resistance to deformation under heavy stress.
Its double-seal design offers better protection against contaminants compared to open bearings.
The bearing’s temperature range of -30° to 200°C makes it versatile for various industrial environments.

Application

Industrial Uses of 241/710-2CS5K30/C3HGEA8 Bearing
This bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles misalignment and heavy radial loads. The chrome steel construction ensures durability in harsh industrial environments.

In wind turbines, 241/710-2CS5K30/C3HGEA8 Bearing supports the main shaft, providing reliable performance under varying wind loads. Its tapered bore allows for secure mounting, essential for long-term operation.

For mining equipment, 241/710-2CS5K30/C3HGEA8 Bearing’s high static radial load capacity makes it ideal for conveyors and excavators. The double seal design helps keep contaminants out, extending service life in dusty conditions.

What Makes 241/710-2CS5K30/C3HGEA8 Bearing a Preferred Choice?
Its combination of high load capacity and misalignment tolerance makes it suitable for paper mill machinery. The steel cage and chrome steel rollers ensure smooth operation even under continuous use.

Built for Heavy-Duty Use: 241/710-2CS5K30/C3HGEA8 Bearing
This bearing excels in steel production equipment, where high temperatures and heavy loads are common. The C3 radial clearance allows for thermal expansion, maintaining performance in demanding conditions.
